ALE20

Lexus IS · 2005 · 5,118 parts · 223 categories
ALE20 ×

← Back to categories

5,118 items

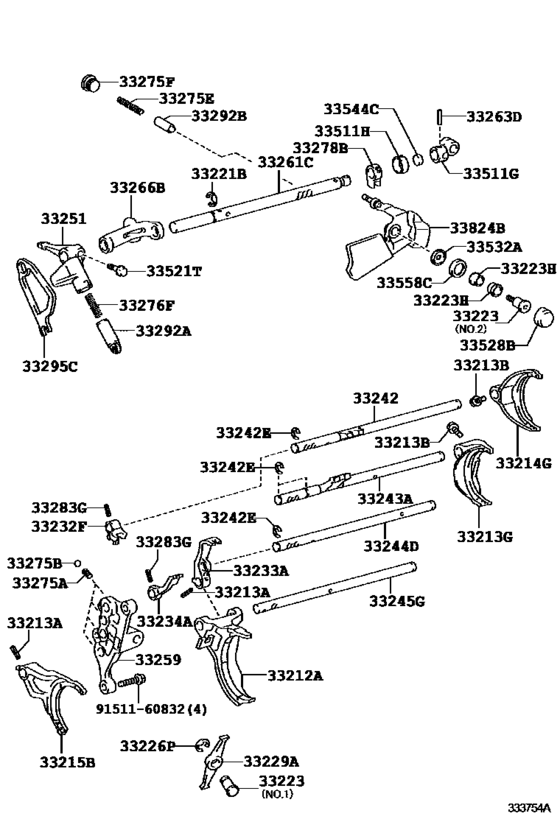

Gear Shift Fork & Lever Shaft (Mtm) ([08.2008 - ] RA62,RA63 (0808- )MTM) 46
#OEMPart name
33212 33210-53020 Fork, Gear Shift, No.1
33213 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33213 90105-06077 Bolt(For Shift Fork Set)
33213 33220-35010 Fork, Gear Shift, No.2
33214 33230-53020 Fork, Gear Shift, No.3
33215 33240-35011 Fork, Gear Shift, No.4
33215 33240-35012 Fork, Gear Shift, No.4
33221 96160-01500 Ring, E(For Reverse Shift Arm)
33223 33223-35040 Pivot, Shift Arm
33223 33223-53020 Pivot, Shift Arm
33223 90386-18006 Collar(For Pivot, Shift Arm)
33226 96160-01200 Ring, E(For Clutch Release Cable)
33229 33222-35010 Arm, Shift - RELEASE, NO.1
33232 33232-53010 Head, Gear Shift, No.1
33233 33233-53020 Head, Gear Shift, No.2
33234 33234-53030 Head, Gear Shift, No.3
33242 33242-53050 Shaft, Gear Shift Fork, No.1
33242 90520-12003 Ring(For Reverse Shift Head)
33243 33243-53050 Shaft, Gear Shift Fork, No.2
33244 33244-53050 Shaft, Gear Shift Fork, No.3
33245 33245-53020 Shaft, Gear Shift Fork, No.4
33245 33245-53021 Shaft, Gear Shift Fork, No.4
33251 33251-53060 Lever, Shift & Select
33259 33259-53010 Bracket, Shift Interlock
33261 33261-53030 Shaft, Shift & Select Lever
33263 90250-06038 Pin (For Shift Lever Shaft)
33266 33266-53020 Pin, Shift Inter Lock, No.3
33275 90501-08228 Spring, Compression (For Shift Detent Ball Low Side)
33275 90360-10003 Ball(For Transmission Oil Pump Cover)
33275 90501-13095 Spring, Compression (For Shift Detent Ball)
33275 90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33276 90501-21047 Spring, Compression, No.1 (For Select Return)
33278 33278-53010 Support, Shift & Select Lever Shaft
33283 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
33292 33292-35010 Pin, Lock Ball
33292 33292-20010 Pin, Lock Ball - LOCK BALL NO.2
33295 33295-53010 Cam, Shift & Select
33511 33511-53050 Shaft, Control
33511 90387-26003 Collar (For Control Shaft)
33521 90109-08305 Pin Or Bolt (For Shift Lever Housing)
33528 33557-53010 Cover, Control Shaft
33532 33532-53010 Plate, Dust Boot
33544 33544-53040 Damper, Shift Lever
33558 33558-53020 Seal, Shift Lever Boot Dust
33824 33824-53010 Weight, Transmission Control Cable
9151160832 91511-60832 Bolt, Flange(For Select Stopper Block)
