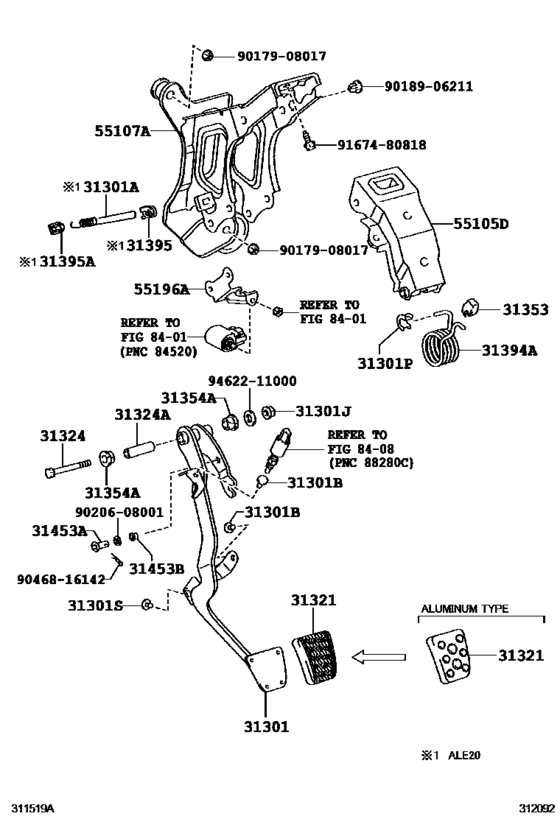

| 31301-53070 |
Pedal Sub-Assy, Clutch |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 31321-12040 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 31321-53010 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 31353-26010 |
Holder, Clutch Pedal Spring |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 31394-53020 |
Spring, Pedal W/hook |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 31395-33010 |
Hook, Pedal Spring |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 31395-33020 |
Hook, Pedal Spring |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 55105-53020 |
Bracket Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 55107-53050 |
Support Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 55196-53030 |
Bracket, Clutch Start Switch Mounting |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90101-10164 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90179-08017 |
NUT |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90189-06211 |
GROMMET SCREW |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90206-08001 |
WASHER |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90240-08006 |
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90386-08036 |
Bush(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90387-10105 |
Collar, Clutch Pedal Shaft |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90389-06055 |
Bush(For Clutch Pedal Turnover) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90541-06046 |
Cushion, No.2(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 90905-06079 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 91674-80818 |
BOLT FLANGE |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 94130-01001 |
Nut(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
| 94622-11000 |
WASHER |
Clutch Pedal & Flexible Hose ([09.2005 - ] (0509- )LHD..MTM) |
