Search › Model › ALA49

ALA49

Toyota RAV4-VANGUARD · 2012 · 3,533 parts · 214 categories

3,533 items

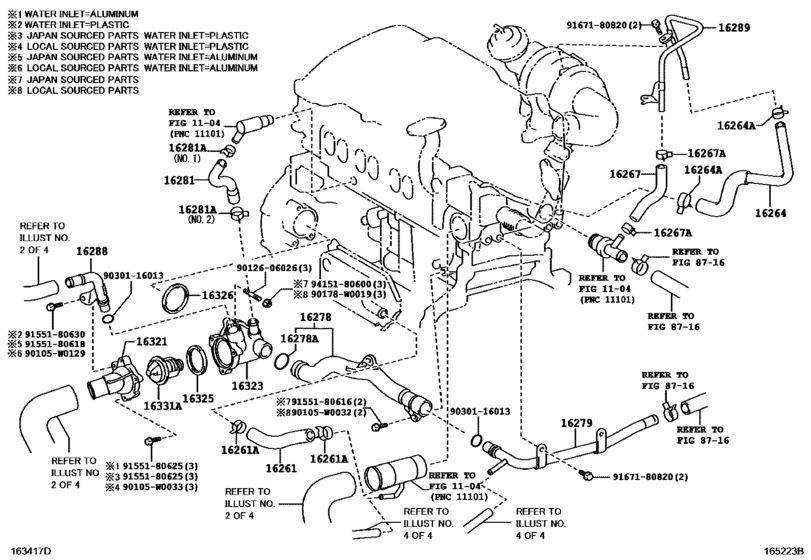

Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#) 37

#	OEM	Part name
16261	16261-0R081	Hose, Water By-Pass - WATER BY-PASS, NO.1
16261	90467-21006	Clip(For Ventilation Hose No.2)
16264	16264-26080	Hose, Water By-Pass, No.2
16264	90467-15022	Clip Or Clamp(For Ventilation Hose)
16267	16267-26021	Hose, Water By-Pass, No.3
16278	16278-0R010	Pipe, Water By-Pass, No.2
16278	16258-0R010	Gasket(For Water By-Pass Pipe)
16279	16279-0R030	Pipe, Water By-Pass, No.3
16279	16279-26050	Pipe, Water By-Pass, No.3
16281	16281-0R010	Hose, Water By-Pass, No.4
16281	16281-0R030	Hose, Water By-Pass, No.4
16281	90467-21010	Clip(For Ventilation Hose No.2)
16281	96134-52100	Clip(For Ventilation Hose)
16281	96136-42201	Clip(For Ventilation Hose No.2)
16288	16288-0R020	Pipe, Water By-Pass, No.4
16289	16289-26011	Pipe, Water By-Pass, No.5
16321	16321-0R020	Inlet, Water
16321	16321-26030	Inlet, Water
16323	16323-0R011	Housing, Water Inlet
16323	16323-26010	Housing, Water Inlet
16325	16325-26011	Gasket, Water Inlet Housing, No.1
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16326	16326-26011	Gasket, Water Inlet Housing, No.2
16326	16326-26020	Gasket, Water Inlet Housing, No.2
16331	90916-03125	Thermostat
90105	90105-W0032	New Genuine Part
90105	90105-W0033	New Genuine Part
90105	90105-W0129	New Genuine Part
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9030116013	90301-16013	New Genuine Part
9155180616	91551-80616	BOLT FLANGE
9155180618	91551-80618	Bolt, W/washer(For Repair Actuator Set)
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9155180630	91551-80630	Bolt(For Cylinder Head Cover)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16258-0R010	Gasket(For Water By-Pass Pipe)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16261-0R081	Hose, Water By-Pass - WATER BY-PASS, NO.1	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16264-26080	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16267-26021	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16278-0R010	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16279-0R030	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16279-26050	Pipe, Water By-Pass, No.3	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16281-0R010	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16281-0R030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16288-0R020	Pipe, Water By-Pass, No.4	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16289-26011	Pipe, Water By-Pass, No.5	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16321-0R020	Inlet, Water	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16321-26030	Inlet, Water	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16323-0R011	Housing, Water Inlet	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16323-26010	Housing, Water Inlet	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16325-26011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16326-26011	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
16326-26020	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90105-W0032	New Genuine Part	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90105-W0033	New Genuine Part	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90105-W0129	New Genuine Part	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90301-16013	New Genuine Part	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90467-21006	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
90916-03125	Thermostat	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
91551-80616	BOLT FLANGE	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
91551-80625	Bolt(For Camshaft Housing Set)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
91551-80630	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
96134-52100	Clip(For Ventilation Hose)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)
96136-42201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.2012 - ] ENGINE SIDE (1212- )2AD#)

Source: Public OEM parts-catalog data
Variants: 2 / 48
Category: 214
Collected: 2026-08-02
