ALA35

Toyota RAV4-VANGUARD · 2009 · 3,346 parts · 184 categories
ALA35 ×

← Back to categories

3,346 items

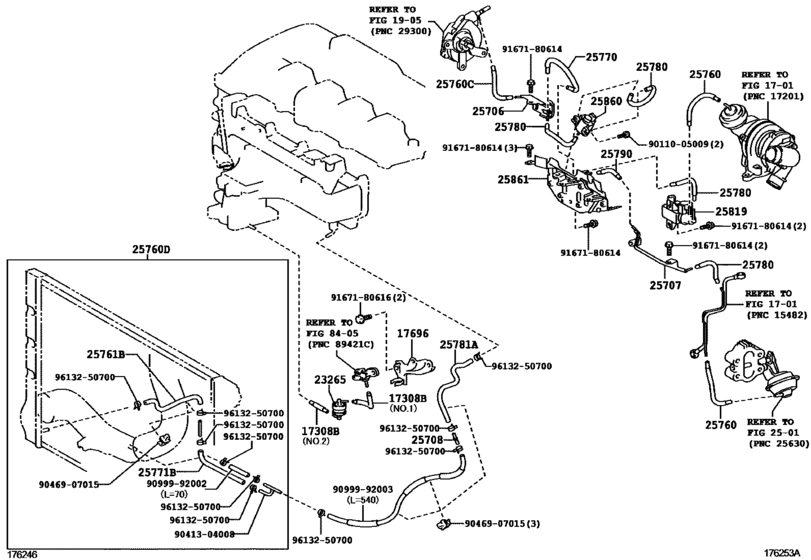

Vacuum Piping ([12.2008 - 08.2012] (0812-1208)2ADFTV..DCR) 29
#OEMPart name
17308 17308-26030 Hose Sub-Assy, Vacuum
17308 17308-26040 Hose Sub-Assy, Vacuum
17696 17696-26020 Bracket, Gas Filter
23265 90917-11044 Filter, Gas, No.1
25706 25706-26010 Pipe Sub-Assy, Vacuum Transmitting, No.1
25707 25707-26010 Pipe Sub-Assy, Vacuum Transmitting, No.2
25708 25736-26020 Pipe Sub-Assy, Vacuum Transmitting, No.3
25760 25760-26021 Hose Assy, Vacuum Transmitting
25760 25760-26120 Hose Assy, Vacuum Transmitting, No.3
25760 25760-26070 Hose Assy, Vacuum Transmitting, No.4
25761 25761-26020 Hose, Vaccum Transmitting, No.1
25770 25770-26020 Hose Assy, Vacuum Transmitting, No.2
25771 25771-26020 Hose, Vaccum Transmitting, No.2
25780 25780-26011 Hose Assy, Vacuum Transmitting, No.3
25781 25781-26030 Hose, Vacuum Transmitting, No.3
25790 25790-26011 Hose Assy, Vacuum Transmitting, No.4
25819 25819-0R011 Valve Assy, Vacuum Regulating
25819 25819-0R012 Valve Assy, Vacuum Regulating
25860 25860-0R010 Valve Assy, Vacuum Switching, No.1
25860 25860-0R011 Valve Assy, Vacuum Switching, No.1
25861 25861-26070 Bracket, Vacuum Switching Valve
9011005009 90110-05009 New Genuine Part
9041304008 90413-04008 Way, 3(For Transfer Breather Hose)
9046907015 90469-07015 Clamp, No.2(For Air Tube, No.2)
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
9167180616 91671-80616 BOLT FLANGE
9613250700 96132-50700 Clip(Vaccum Transmitting Hose No.1)
