Search › Model › ALA35
ALA35

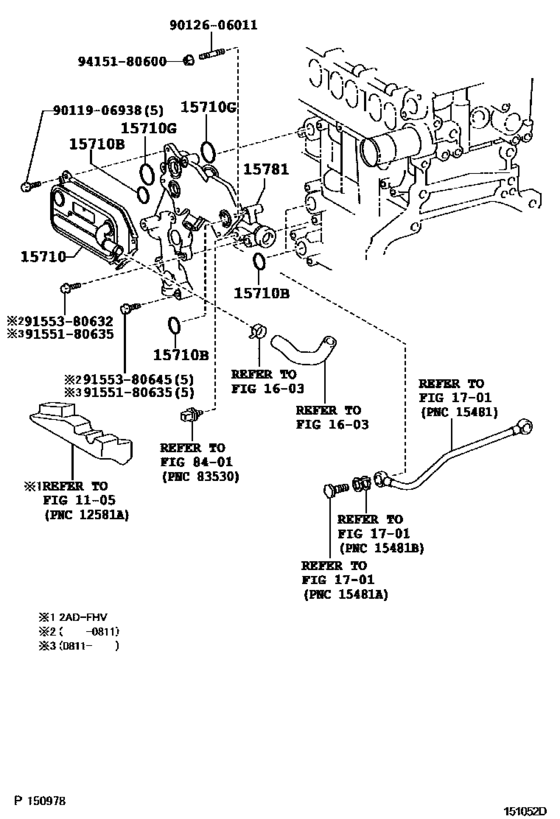

Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) 12
| # | OEM | Part name |
|---|---|---|
| 15710 | 15710-0R010 | Cooler Assy, Oil |
| 15710 | 15710-0R011 | Cooler Assy, Oil |
| 15710 | 90301-24018 | Ring, O(For Oil Filter Bracket) - O(FOR OIL COOLER) |
| 15710 | 90301-29013 | Ring, O, No.2 |
| 15781 | 15781-26030 | Bracket, Oil Cooler, No.1 |
| 15781 | 15781-26031 | Bracket, Oil Cooler, No.1 |
| 9011906938 | 90119-06938 | BOLT WWASHER |
| 9012606011 | 90126-06011 | New Genuine Part |
| 9155180635 | 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) |
| 9155380632 | 91553-80632 | New Genuine Part |
| 9155380645 | 91553-80645 | New Genuine Part |
| 9415180600 | 94151-80600 | Nut, Cap(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 15710-0R010 | Cooler Assy, Oil | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 15710-0R011 | Cooler Assy, Oil | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 15781-26030 | Bracket, Oil Cooler, No.1 | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 15781-26031 | Bracket, Oil Cooler, No.1 | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 90119-06938 | BOLT WWASHER | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 90126-06011 | New Genuine Part | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 90301-24018 | Ring, O(For Oil Filter Bracket) - O(FOR OIL COOLER) | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 90301-29013 | Ring, O, No.2 | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 91551-80635 | Bolt(For Head To Camshaft Bearing Cap) | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 91553-80632 | New Genuine Part | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 91553-80645 | New Genuine Part | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
| 94151-80600 | Nut, Cap(For Cylinder Head Cover) | Engine Oil Cooler ([11.2005 - ] (0511- )2AD#) |
