Search › Model › ALA30

ALA30

Toyota RAV4-VANGUARD · 2005 · 5,028 parts · 228 categories

← Back to categories

5,028 items

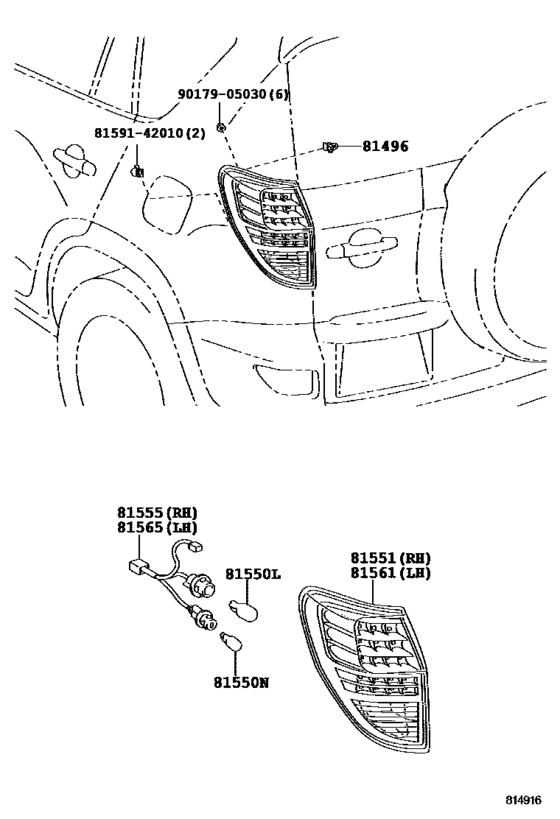

Rear Combination Lamp ([12.2008 - ] (0812- )DCRL) 8

#	OEM	Part name
81496	81496-42010	Guide, Rear Combination Lamp
81550	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81550	90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)
81551	81551-42150	Lens, Rear Combination Lamp, Rh
81555	81555-42150	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
81561	81561-42150	Lens, Rear Combination Lamp, Lh
8159142010	81591-42010	Lens And Body, Reflex Side Reflector, Lh
9017905030	90179-05030	NUT

OEM	Part name	Category
81496-42010	Guide, Rear Combination Lamp	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
81551-42150	Lens, Rear Combination Lamp, Rh	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
81555-42150	Socket & Wire Sub-Assy, Rear Combination Lamp, Rh	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
81561-42150	Lens, Rear Combination Lamp, Lh	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
81591-42010	Lens And Body, Reflex Side Reflector, Lh	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
90179-05030	NUT	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Rear Combination Lamp ([12.2008 - ] (0812- )DCRL)

Source: Public OEM parts-catalog data
Variants: 2 / 48
Category: 228
Collected: 2026-08-02
