ALA30

Toyota RAV4-VANGUARD · 2005 · 5,028 parts · 228 categories

← Back to categories

5,028 items

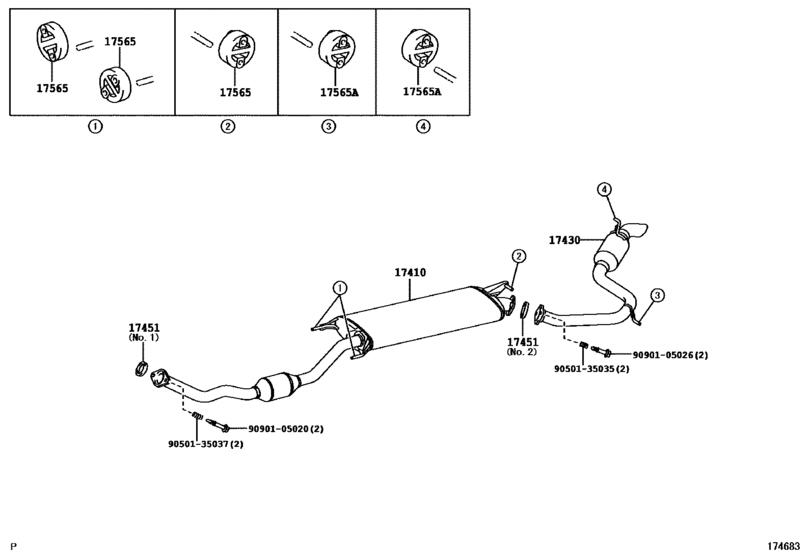

Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30) 18

#	OEM	Part name
17410	17410-26460	Pipe Assy, Exhaust, Front
17410	17410-26462	Pipe Assy, Exhaust, Front
17410	17410-26461	Pipe Assy, Exhaust, Front
17410	17410-26430	Pipe Assy, Exhaust, Front
17410	17410-26432	Pipe Assy, Exhaust, Front
17410	17410-26431	Pipe Assy, Exhaust, Front
17430	17430-26743	Pipe Assy, Exhaust, Tail
17430	17430-26744	Pipe Assy, Exhaust, Tail
17451	17451-28040	Gasket, Exhaust Pipe
17451	17451-28041	Gasket, Exhaust Pipe
17451	17451-31011	Gasket, Exhaust Pipe
17451	17451-31012	Gasket, Exhaust Pipe, Center
17565	17565-22040	Support, Exhaust Pipe, No.1
17565	17565-22030	Support, Exhaust Pipe, No.1
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support

OEM	Part name	Category
17410-26430	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17410-26431	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17410-26432	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17410-26460	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17410-26461	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17410-26462	Pipe Assy, Exhaust, Front	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17430-26743	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17430-26744	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17451-31011	Gasket, Exhaust Pipe	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17451-31012	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17565-22030	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([11.2005 - ] (0511- )2AD#..ALA30)
