AL25

Toyota CORSA-TERCEL · 1984 · 3,847 parts · 152 categories
AL25 ×

← Back to categories

3,847 items

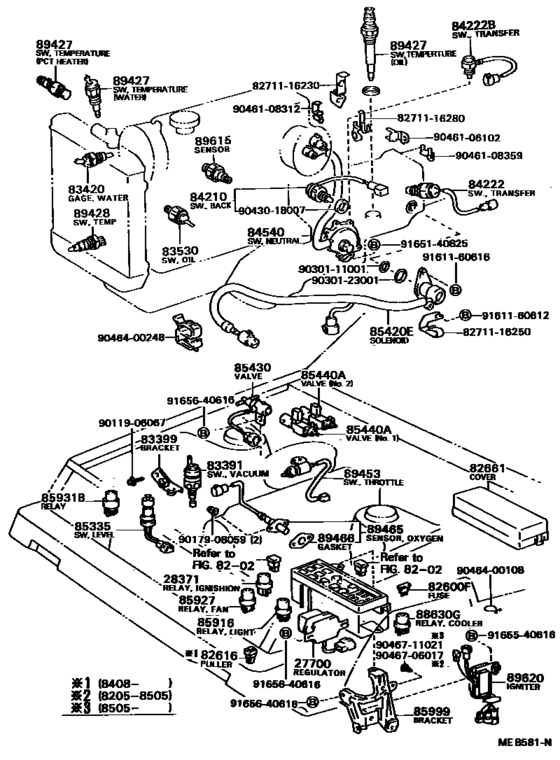

Switch & Relay & Computer ([05.1982 - ] (8205- )) 138
#OEMPart name
27700 27700-15020 Regulator Assy, Generator
28371 90987-02004 Relay Assy, Starter
81980 81980-16010 Flasher Assy, Turn Signal
82600 90982-07011 Fuse, Fuse Block
82600 90982-09002 Fusible Link
82600 90982-09003 Fusible Link
82600 90982-09004 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82600 74555-16130 Plate, Caution(For Fuse)
82600 82683-16030 Plate, Caution(For Fuse)
82616 82616-12010 Lever, Fuse
82661 82661-16100 Cover, Relay Block, No.1
83320 83320-19855 Gage Assy, Fuel Sender
83320 83320-19865 Gage Assy, Fuel Sender
83391 83391-16030 Switch, Vacuum
83399 83399-16030 Bracket, Vacuum Switch
83420 83420-20020 Gage Assy, Water Temperature Sender
83530 83530-30050 Switch Assy, Oil Pressure (For Engine)
83530 83530-60050 Switch Assy, Oil Pressure (For Engine)
83530 83530-30080 Switch Assy, Oil Pressure (For Engine)
83530 83530-60040 Switch Assy, Oil Pressure (For Engine)
83650 90986-01003 Fusee
83650 90986-01005 Fusee
84110 84112-19665 Switch Assy, Light Control, No.1
84110 84112-29605 Switch Assy, Light Control, No.1
84140 84140-19335 Switch Assy, Headlamp Dimmer
84140 84140-27040 Switch Assy, Headlamp Dimmer
84210 84210-16030 Switch Assy, Back-Up Lamp
84222 84222-16010 Switch, Transfer Indicator, No.1
84222 84222-35020 Switch, Transfer Indicator, No.1
84222 84222-16020 Switch, Transfer Indicator, No.2
84233 84231-20080 Switch Assy, Courtesy Lamp (For Front Door)
84233 84231-28010 Switch Assy, Courtesy Lamp
84233 84231-28020 Switch, Courtesy Lamp
84233 84234-22010 Cushion, Courtesy Switch (For Front Door)
84236 84231-16030 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)
84310 84310-16140 Switch Assy, Turn Signal
84310 84310-10620 Switch Assy, Turn Signal
84312 84312-32010 Plate, Horn Contact
84335 84330-16021 Switch Assy, Parking Lamp
84340 84340-30030 Switch Assy, Stop Lamp
84340 84340-32010 Switch Assy, Stop Lamp
84380 84550-16010 Switch Assy, Brake Warning Test
84450 84450-16020 Switch Assy, Ignition Or Starter
84450 84450-22140 Switch Assy, Ignition Or Starter
84650 84652-80048 Switch Assy, Windshield Wiper
84650 84652-80056 Switch Assy, Windshield Wiper
84660 84660-16020 Switch, Cooler
84660 88607-32010 Bulb(For Cooler Switch)
84722 84724-16010 Switch, Transmission Control
84730 84732-16050 Switch Assy, Heater Blower
84730 84732-16031 Switch Assy, Heater Blower
84730 84732-16060 Switch Assy, Heater Blower
84790 84790-16031 Switch Assy, Rear Window Defogger
84790 84999-10170 Bulb, Indicator Lamp
84870 84870-32011 Switch Assy, Outer Mirror
85335 85335-16220 Switch Assy, Washer Level Warning
85430 85430-16030 Valve, Outer Vent Control
85440 85440-16010 Solenoid Assy, Four Wheel Drive Control
85440 85440-16020 Solenoid Assy, Four Wheel Drive Control
85500 85500-16090 Lighter Assy, Cigarette
85500 85500-10090 Lighter Assy, Cigarette
85533 85533-10010 Lens, Cigarette Lighter Indicator
85533 85533-16020 Lens, Cigarette Lighter Indicator
85910 85913-30020 Relay, Ignition, No.1
85910 90987-04002 Relay, Ignition, No.1
85916 90987-02002 Relay, Ignition, No.1
85916 90987-02006 Relay
85927 90987-03001 Relay
85999 85999-16030 Bracket, Combination Relay
85999 85999-12050 Bracket, Main Relay
86640 86640-16040 Chime Assy
89372 89372-16060 Sensor, Motor Failure Indicator
89373 89373-16050 Sensor, Lamp Failure Indicator
89425 89425-19305 Sensor, Exhaust Gas Temperature
89425 89425-19345 Sensor, Exhaust Gas Temperature
89427 89427-16060 Switch, Temperature Detect
89428 89428-15030 Switch, Temperature Detect, No.2
89453 89453-14010 Switch, Throttle Position (For T.c.s.)
89465 89465-19075 Sensor, Oxygen
89465 89465-29176 Sensor, Oxygen
89466 89466-32010 Gasket, Oxygen Sensor
89466 89466-30030 Gasket, Oxygen Sensor
89550 89550-16150 Computer Assy, Emission Control
8271116170 82711-16170 Wire, Fuse To Fuse(for Combustion Heater)
8271116230 82711-16230 Wire, Fuse To Fuse(for Combustion Heater)
8271116250 82711-16250 Wire, Fuse To Fuse(for Combustion Heater)
8271116280 82711-16280 Wire, Fuse To Fuse(for Combustion Heater)
8868816110 88688-16110 Bracket, Cooler Diaphragm
9011906067 90119-06067 BOLT
9015940155 90159-40155 SCREW WWASHER
9017908059 90179-08059 Nut
9017908059 90179-08101 NUT
9020109351 90201-09351 New Genuine Part
9030111001 90301-11001 Ring, O (For Transmission Oil Filler Plug)
9030123001 90301-23001 Ring, O (For Transmission Solenoid)
9043008252 90430-08252 Gasket(For Catalytic Converter Sensor Guide)
9043018007 90430-18007 Gasket(For Water Hole)
9043018007 90430-18008 Gasket
9046106102 90461-06102 New Genuine Part
9046108312 90461-08312 New Genuine Part
9046108359 90461-08359 New Genuine Part
9046315402 90463-15402 New Genuine Part
9046400108 90464-00108 New Genuine Part
9046400248 90464-00248 New Genuine Part
9046706017 90467-06017 Clip, Battery Service Cover, No.2
9046711021 90467-11021 Clip(For Rear Seat)
9048026043 90480-26043 Grommet (For Accelerator Wire)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160616 91611-60616 Bolt(For Transaxle Case Receiver)
9161160616 91611-B0616 Bolt(For Transaxle Case Receiver)
9165140610 91651-40610 RIVET
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140620 91651-40620 BOLT
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
9165160616 91651-60616 BOLT
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165640616 91656-40616 Bolt
9166140614 91661-40614 New Genuine Part
9166140614 91661-A0614 New Genuine Part
9331514010 93315-14010 SCREW
9331514012 93315-14012 Screw with washer
9331913012 93319-13012 New Genuine Part
9331914008 93319-14008 SCREW
9331914012 93319-14012 New Genuine Part
9331915012 93319-15012 Screw
9351013010 93510-13010 Bolt Or Pin (For Shift Lever Knob Setting)
9356055012 93560-55012 New Genuine Part
9356614512 93566-14512 SCREW
9356614512 93568-54512 SCREW
9356755014 93567-55014 Direct
9356855014 93568-55014 Screw
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9461110300 94611-10300 New Genuine Part
