AL25

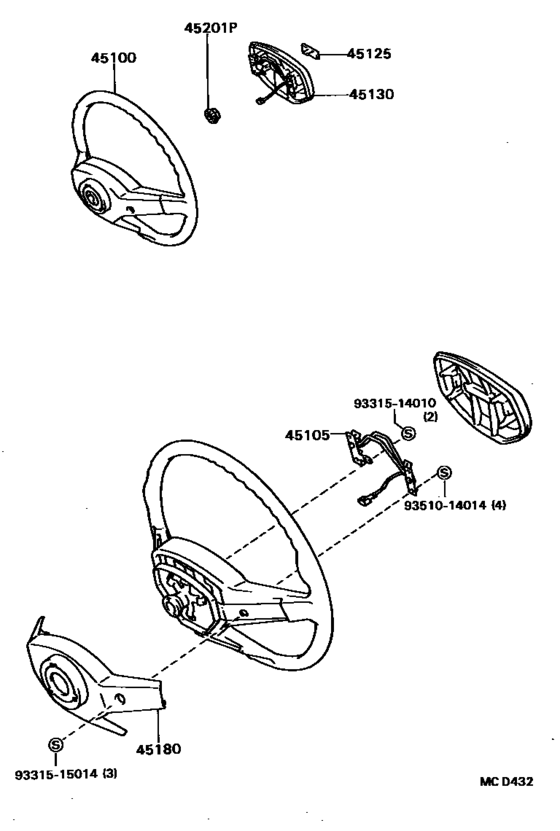

Steering Wheel ([05.1986 - ] (8605- )SX,VS) 10
| # | OEM | Part name |
|---|---|---|
| 45100 | 45100-16190-01 | Wheel Assy, Steering |
| 45100 | 45100-16220-01 | Wheel Assy, Steering |
| 45105 | 45105-16060 | Plate Sub-Assy, Horn Button Contact, No.1 |
| 45125 | 45125-16260 | Mark, Steering Wheel Pad |
| 45130 | 45130-16160-01 | Button Assy, Horn |
| 45180 | 45180-16070-01 | Cover Sub-Assy, Steering Wheel |
| 45201 | 90179-12086 | Nut, Steering Wheel Set |
| 9331514010 | 93315-14010 | SCREW |
| 9331515014 | 93315-15014 | New Genuine Part |
| 9351014014 | 93510-14014 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 45100-16190-01 | Wheel Assy, Steering | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 45100-16220-01 | Wheel Assy, Steering | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 45105-16060 | Plate Sub-Assy, Horn Button Contact, No.1 | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 45125-16260 | Mark, Steering Wheel Pad | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 45130-16160-01 | Button Assy, Horn | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 45180-16070-01 | Cover Sub-Assy, Steering Wheel | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 90179-12086 | Nut, Steering Wheel Set | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 93315-14010 | SCREW | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 93315-15014 | New Genuine Part | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
| 93510-14014 | New Genuine Part | Steering Wheel ([05.1986 - ] (8605- )SX,VS) |
