Search › Model › AL25

AL25

Toyota CORSA-TERCEL · 1984 · 3,847 parts · 152 categories

3,847 items

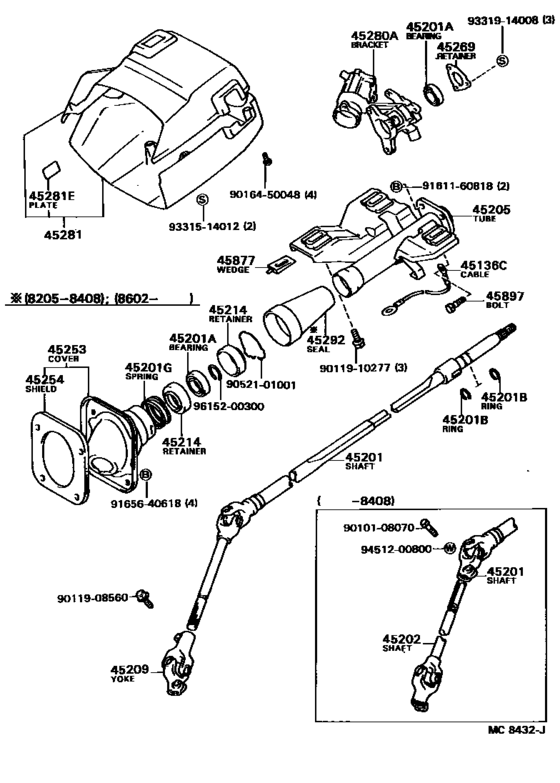

Steering Column & Shaft ([05.1982 - ] (8205- )) 55

#	OEM	Part name
45136	90980-07204	Cable, Bond(For Horn Earth)
45201	45210-16040	Shaft Sub-Assy, Steering Main
45201	45210-16060	Shaft Sub-Assy, Steering Main
45201	90363-18003	Bearing(For Steering Main Shaft)
45201	90363-18038	Bearing(For Steering Main Shaft)
45201	90363-30015	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17196	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-32003	Spring, Compression(For Steering Main Shaft)
45205	45205-16031	Tube Sub-Assy, Steering Column
45205	45205-16040	Tube Sub-Assy, Steering Column
45209	45209-10020	Yoke Sub-Assy, Steering Sliding
45209	45209-16010	Yoke Sub-Assy, Steering Sliding
45214	45214-10010	Retainer, Main Shaft Spring
45253	45025-16050	Cover, Steering Column Hole
45254	45254-16020	Shield, Steering Column Hole
45269	45269-35010	Retainer, Main Shaft Bearing
45280	45280-16010	Bracket Assy, Steering Column, Upper
45280	45280-16011	Bracket Assy, Steering Column, Upper
45281	45286-16901-02	Housing, Steering Column
45281	45286-16901-C0	Housing, Steering Column
45281	45286-16901-03	Housing, Steering Column
45281	45286-16901-11	Housing, Steering Column
45281	45286-16901-06	Housing, Steering Column
45281	45286-16901-13	Housing, Steering Column
45281	45286-16902-13	Housing, Steering Column
45281	45286-16902-11	Housing, Steering Column
45281	45283-12010	Plate, Safety Caution
45292	45292-10010	Seal, Main Shaft Lower Dust
45807	45082-16020	Bracket Sub-Assy, Steering Column Upper Support
45826	45804-16012	Lever, Steering Tilt
45826	90506-14045	Spring, Tension(For Steering Tilt Lever)
45829	45829-16020	Retainer, Tilt Steering Return Spring
45831	45831-16010	Bolt, Tilt Lever Lock, No.1
45831	45832-16010	Bolt, Tilt Lever Lock, No.1
45833	45833-16010	Nut, Tilt Steering Adjusting, No.1
45833	45834-16010	Nut, Tilt Steering Adjusting, No.1
45835	45835-16011	Attachment, Tilt Lever Serration
45877	45877-12010	Wedge, Caster(For Steering Column Tube Setting)
45897	45897-12020	Bolt, Steering Lock Set
9010108070	90101-08070	Bolt, Hexagon
9010108070	90119-08560	Bolt, Hexagon
9011910277	90119-10277	New Genuine Part
9016450048	90164-50048	SCREW
9017908057	90179-08057	NUT
9020108029	90201-08029	Washer, Plate(For Steering Tilt Lever)
9052101001	90521-01001	New Genuine Part
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9165640618	91656-40618	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618	91651-60614	Bolt
9331514012	93315-14012	Screw with washer
9331914008	93319-14008	SCREW
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9615200300	96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)

OEM	Part name	Category
45025-16050	Cover, Steering Column Hole	Steering Column & Shaft ([05.1982 - ] (8205- ))
45082-16020	Bracket Sub-Assy, Steering Column Upper Support	Steering Column & Shaft ([05.1982 - ] (8205- ))
45205-16031	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45205-16040	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45209-10020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1982 - ] (8205- ))
45209-16010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1982 - ] (8205- ))
45210-16040	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([05.1982 - ] (8205- ))
45210-16060	Shaft Sub-Assy, Steering Main	Steering Column & Shaft ([05.1982 - ] (8205- ))
45214-10010	Retainer, Main Shaft Spring	Steering Column & Shaft ([05.1982 - ] (8205- ))
45254-16020	Shield, Steering Column Hole	Steering Column & Shaft ([05.1982 - ] (8205- ))
45269-35010	Retainer, Main Shaft Bearing	Steering Column & Shaft ([05.1982 - ] (8205- ))
45280-16010	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1982 - ] (8205- ))
45280-16011	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1982 - ] (8205- ))
45283-12010	Plate, Safety Caution	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16901-02	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16901-03	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16901-06	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16901-11	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16901-13	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16901-C0	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16902-11	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45286-16902-13	Housing, Steering Column	Steering Column & Shaft ([05.1982 - ] (8205- ))
45292-10010	Seal, Main Shaft Lower Dust	Steering Column & Shaft ([05.1982 - ] (8205- ))
45804-16012	Lever, Steering Tilt	Steering Column & Shaft ([05.1982 - ] (8205- ))
45829-16020	Retainer, Tilt Steering Return Spring	Steering Column & Shaft ([05.1982 - ] (8205- ))
45831-16010	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([05.1982 - ] (8205- ))
45832-16010	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([05.1982 - ] (8205- ))
45833-16010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([05.1982 - ] (8205- ))
45834-16010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([05.1982 - ] (8205- ))
45835-16011	Attachment, Tilt Lever Serration	Steering Column & Shaft ([05.1982 - ] (8205- ))
45877-12010	Wedge, Caster(For Steering Column Tube Setting)	Steering Column & Shaft ([05.1982 - ] (8205- ))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1982 - ] (8205- ))
90101-08070	Bolt, Hexagon	Steering Column & Shaft ([05.1982 - ] (8205- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1982 - ] (8205- ))
90119-08830	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90119-10277	New Genuine Part	Steering Column & Shaft ([05.1982 - ] (8205- ))
90164-50048	SCREW	Steering Column & Shaft ([05.1982 - ] (8205- ))
90179-08057	NUT	Steering Column & Shaft ([05.1982 - ] (8205- ))
90201-08029	Washer, Plate(For Steering Tilt Lever)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90363-18003	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90363-18038	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90363-30015	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90501-32003	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90506-14045	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90520-17196	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
90521-01001	New Genuine Part	Steering Column & Shaft ([05.1982 - ] (8205- ))
90980-07204	Cable, Bond(For Horn Earth)	Steering Column & Shaft ([05.1982 - ] (8205- ))
91611-60818	Bolt(For Oil Receiver Pipe)	Steering Column & Shaft ([05.1982 - ] (8205- ))
91651-60614	Bolt	Steering Column & Shaft ([05.1982 - ] (8205- ))
91656-40618	Bolt (For Rear Differential Breather Plug Oil Deflector)	Steering Column & Shaft ([05.1982 - ] (8205- ))
93315-14012	Screw with washer	Steering Column & Shaft ([05.1982 - ] (8205- ))
93319-14008	SCREW	Steering Column & Shaft ([05.1982 - ] (8205- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([05.1982 - ] (8205- ))
96152-00300	Ring, Hole Snap (For Differential Side Gear Shaft)	Steering Column & Shaft ([05.1982 - ] (8205- ))
