| 04474-10032 |
Cylinder Kit, Rear Wheel |

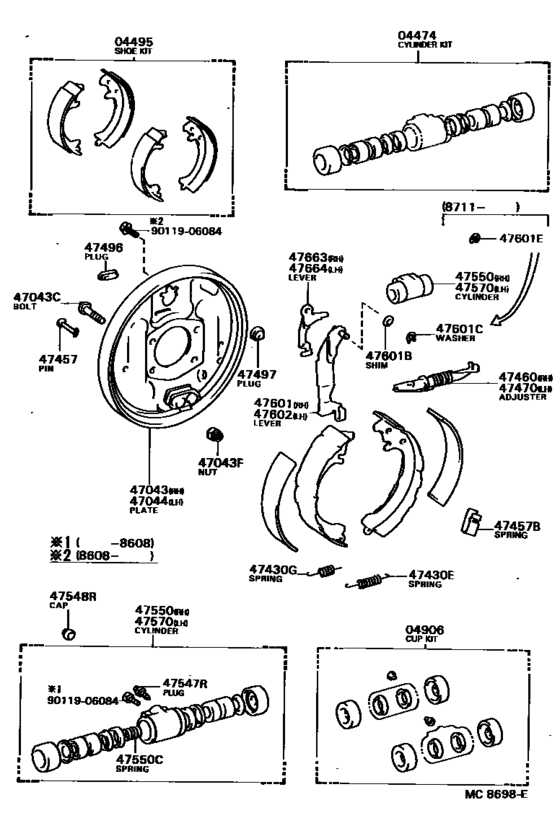

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04474-63020 |
Cylinder Kit, Rear Wheel |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04495-16030 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04495-16032 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04495-16060 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04495-16062 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04497-16030 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04497-16031 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 04906-10021 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 42184-22020 |
Bolt(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47043-16030 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47044-16030 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47061-12020 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47062-12020 |
Strut Set, Parking Brake Shoe, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47446-10010 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47447-10010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47491-20011 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47492-32010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47547-20010 |
Plug, Bleeder(For Release Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47550-10042 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47550-19097 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47611-12011 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47611-12050 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47612-12011 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47612-12050 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47643-12011 |
Lever, Automatic Adjust, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47643-12030 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47644-12011 |
Lever, Automatic Adjust, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 47644-12030 |
Lever, Rear Brake Automatic Adjust, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90029-60014 |
Spring, Compression(For Rear Wheel Brake Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90179-10095 |
Nut(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90213-06013 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90501-07006 |
Spring, Compression(For Rear Wheel Brake Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90506-12276 |
Spring, Tension(For Rear Brake Automatic Adjust Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90506-18299 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90564-08150 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90564-08151 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90564-08152 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90564-08172 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90564-08173 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 90564-08174 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 94181-11000 |
Nut(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
| 96160-00500 |
Ring, E(For Over Center Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1984 - ] (8408- )AL25) |
