Search › Model › AL25
AL25

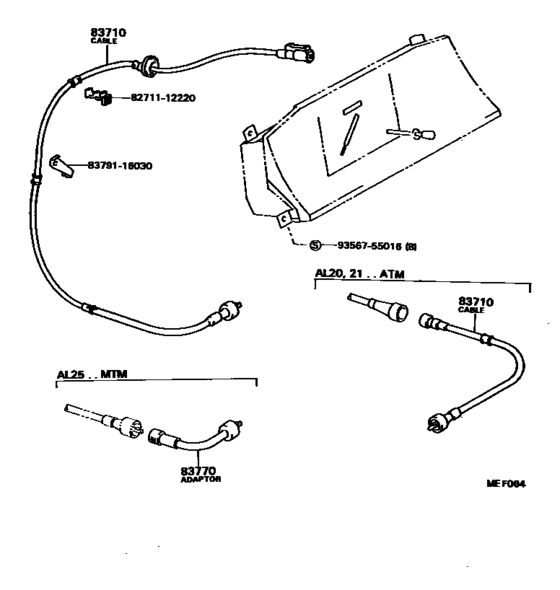

Meter ([05.1982 - ] (8205- )) 7
| # | OEM | Part name |
|---|---|---|
| 83710 | 83710-16110 | Cable Assy, Speedometer Drive, No.1 |
| 83770 | 83770-22060 | Adapter Assy, Speedometer Cable |
| 83770 | 83770-22100 | Adapter Assy, Speedometer Cable |
| 8271112220 | 82711-12220 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8379116030 | 83791-16030 | New Genuine Part |
| 9356755016 | 93567-55016 | Screw |
| 9356755016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 82711-12220 | Wire, Fuse To Fuse(for Combustion Heater) | Meter ([05.1982 - ] (8205- )) |
| 83710-16110 | Cable Assy, Speedometer Drive, No.1 | Meter ([05.1982 - ] (8205- )) |
| 83770-22060 | Adapter Assy, Speedometer Cable | Meter ([05.1982 - ] (8205- )) |
| 83770-22100 | Adapter Assy, Speedometer Cable | Meter ([05.1982 - ] (8205- )) |
| 83791-16030 | New Genuine Part | Meter ([05.1982 - ] (8205- )) |
| 93567-55016 | Screw | Meter ([05.1982 - ] (8205- )) |
| 93568-55016 | Screw | Meter ([05.1982 - ] (8205- )) |
