AL25

Toyota CORSA-TERCEL · 1984 · 3,847 parts · 152 categories

3,847 items

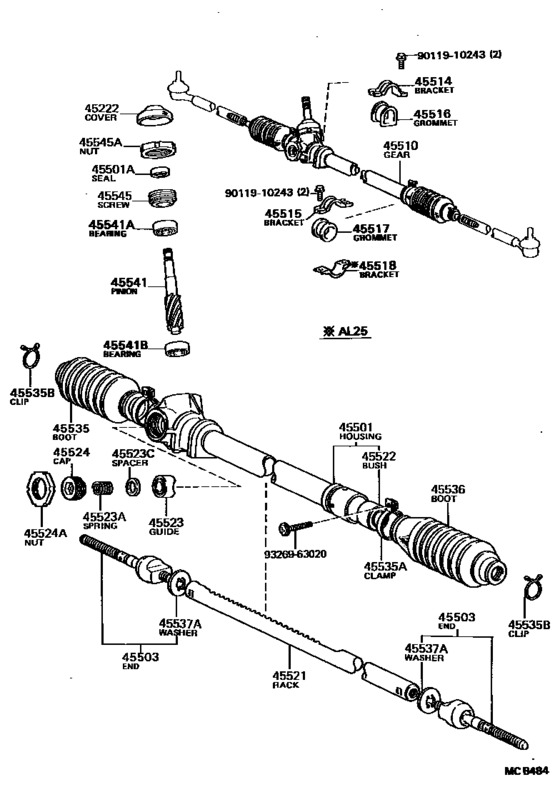

Front Steering Gear & Link ([05.1982 - ] (8205- )) 50

#	OEM	Part name
45046	90171-12028	Nut, Castle(For Pitman Arm)
45222	45222-10030	Cover, Steering Gear Dust
45460	45460-19195	Rod Assy, Tie, Rh
45466	45466-22010	Clamp, Tie Rod End
45470	45470-19045	Rod Assy, Tie, Lh
45501	45501-16131	Housing Sub-Assy, Steering Rack
45501	45501-16132	Housing Sub-Assy, Steering Rack
45501	45501-16142	Housing Sub-Assy, Steering Rack
45501	45501-16210	Housing Sub-Assy, Steering Rack
45501	90311-15001	Seal, Oil(For Steering Bevel Gear Housing)
45501	90311-15002	Seal, Oil(For Steering Bevel Gear Housing)
45503	45503-19025	End Sub-Assy, Steering Rack(For Power Steering)
45510	45510-16070	Gear Assy, Steering
45510	45510-16071	Gear Assy, Steering
45510	45510-16081	Gear Assy, Steering
45514	45514-16020	Bracket, Steering Rack Housing, No.1
45515	45515-16020	Bracket, Steering Rack Housing, No.2
45515	45515-16030	Bracket, Steering Rack Housing, No.2
45516	45516-16020	Grommet, Steering Rack Housing, No.1
45516	45516-16030	Grommet, Steering Rack Housing, No.1
45517	45517-10010	Grommet, Steering Rack Housing, No.2
45517	45517-16030	Grommet, Steering Rack Housing, No.2
45518	45518-16010	Bracket, Steering Rack Housing, No.3
45521	45521-16110	Rack, Steering
45521	45522-10021	Bush, Steering Rack
45521	45521-16130	Rack, Steering
45522	45522-10030	Bush, Steering Rack
45522	45522-17010	Bush, Steering Rack
45522	45522-17020	Bush, Steering Rack
45523	45523-16011	Guide, Rack(For Steering Gear)
45523	90501-23007	Spring(For Power Steering Rack Guide)
45523	90560-23003	Spacer(For Rack Guide)
45524	45524-16010	Cap(For Power Steering Pinion)
45524	90179-36001	Nut(For Steering Rack Guide Spring Cap)
45535	45535-12011	Boot, Steering Rack, No.1
45535	90461-10273	Clamp(For Steering Rack Boot)
45535	90467-18003	Clip Or Clamp(For Ventilation Hose)
45536	45536-12011	Boot, Steering Rack, No.2
45537	90214-14002	Washer, Claw(For Power Steering Rack End)
45541	45541-16071	Pinion, Steering
45541	90363-15003	Bearing, Radial Ball(For Steering Rack Housing)
45541	90363-13001	Bearing, Radial Ball(For Steering Rack Housing)
45545	45545-10010	Screw, Pinion Bearing Adjusting
45545	90179-38001	Nut(For Pinion Bearing Adjusting Screw)
9010108265	90101-08265	New Genuine Part
9011910243	90119-10243	New Genuine Part
9017008125	90170-08125	New Genuine Part
9326963020	93269-63020	Screw(For Steering Rack Boot Clamp)
9451100800	94511-00800	WASHERSPRING
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
45222-10030	Cover, Steering Gear Dust	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45460-19195	Rod Assy, Tie, Rh	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45466-22010	Clamp, Tie Rod End	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45470-19045	Rod Assy, Tie, Lh	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45501-16131	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45501-16132	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45501-16142	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45501-16210	Housing Sub-Assy, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45503-19025	End Sub-Assy, Steering Rack(For Power Steering)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45510-16070	Gear Assy, Steering	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45510-16071	Gear Assy, Steering	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45510-16081	Gear Assy, Steering	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45514-16020	Bracket, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45515-16020	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45515-16030	Bracket, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45516-16020	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45516-16030	Grommet, Steering Rack Housing, No.1	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45517-10010	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45517-16030	Grommet, Steering Rack Housing, No.2	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45518-16010	Bracket, Steering Rack Housing, No.3	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45521-16110	Rack, Steering	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45521-16130	Rack, Steering	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45522-10021	Bush, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45522-10030	Bush, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45522-17010	Bush, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45522-17020	Bush, Steering Rack	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45523-16011	Guide, Rack(For Steering Gear)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45524-16010	Cap(For Power Steering Pinion)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45535-12011	Boot, Steering Rack, No.1	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45536-12011	Boot, Steering Rack, No.2	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45541-16071	Pinion, Steering	Front Steering Gear & Link ([05.1982 - ] (8205- ))
45545-10010	Screw, Pinion Bearing Adjusting	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90101-08265	New Genuine Part	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90119-10243	New Genuine Part	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90170-08125	New Genuine Part	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90171-12028	Nut, Castle(For Pitman Arm)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90179-36001	Nut(For Steering Rack Guide Spring Cap)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90179-38001	Nut(For Pinion Bearing Adjusting Screw)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90214-14002	Washer, Claw(For Power Steering Rack End)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90311-15001	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90311-15002	Seal, Oil(For Steering Bevel Gear Housing)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90363-13001	Bearing, Radial Ball(For Steering Rack Housing)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90363-15003	Bearing, Radial Ball(For Steering Rack Housing)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90461-10273	Clamp(For Steering Rack Boot)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90467-18003	Clip Or Clamp(For Ventilation Hose)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90501-23007	Spring(For Power Steering Rack Guide)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
90560-23003	Spacer(For Rack Guide)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
93269-63020	Screw(For Steering Rack Boot Clamp)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
94511-00800	WASHERSPRING	Front Steering Gear & Link ([05.1982 - ] (8205- ))
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Front Steering Gear & Link ([05.1982 - ] (8205- ))
