Search › Model › AL25

AL25

Toyota CORSA-TERCEL · 1984 · 3,847 parts · 152 categories

3,847 items

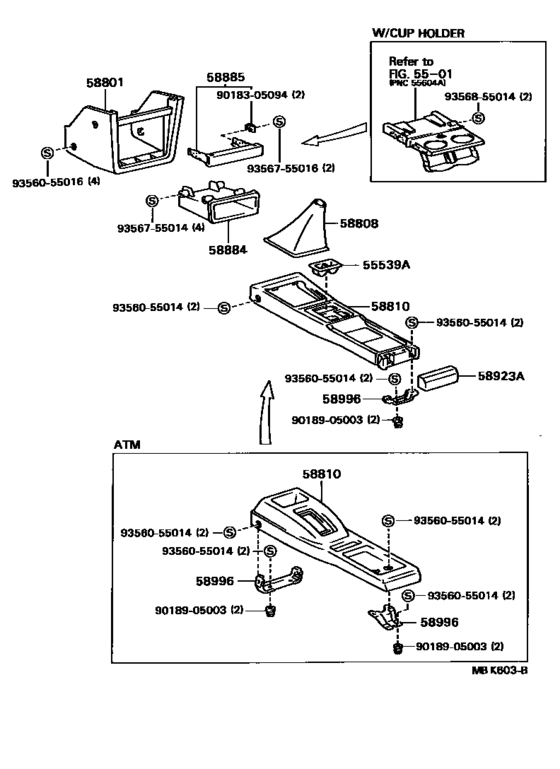

Console Box & Bracket ([05.1986 - ] (8605- )AL25) 50

#	OEM	Part name
55539	55539-32010-13	Cover, Rear Window Defogger Switch Hole
55539	55539-32010-C0	Cover, Cooler Switch Hole (BLACK)
55539	55539-32010-25	Cover, Spare Switch Hole
55539	55548-16020-01	Cover, Spare Switch Hole
55539	55548-16020-05	Cover, Spare Switch Hole
58801	58813-16040-01	Console Sub-Assy, Upper
58801	58813-16040-03	Console Sub-Assy, Upper
58801	58813-16040-05	Console Sub-Assy, Upper
58801	58813-16040-15	Console Sub-Assy, Upper
58808	58808-16030-05	Cover Sub-Assy, Shifting Hole
58808	58808-16030-13	Cover Sub-Assy, Shifting Hole
58808	58808-16060-01	Cover Sub-Assy, Shifting Hole
58810	58802-16010-05	Console Assy
58810	58802-16010-15	Console Assy
58810	58802-16010-13	Console Assy
58810	58802-16010-B0	Console Assy
58810	58811-16100-01	Console Assy
58827	58827-20021	Spacer, Console Compartment Door Stopper
58884	55521-16010	Cover, Radio Tuner Opening
58884	55521-16030	Cover, Radio Tuner Opening
58885	55522-16030	Cover, Radio Tuner Opening
58905	58905-16020-01	Door Sub-Assy, Console Compartment
58908	58976-22020	Lock Sub-Assy, Console Compartment Door
58919	58919-16010-01	Plate, Console Box
58940	58901-16010-05	Console Assy, Rear
58940	58901-16010-15	Console Assy, Rear
58940	58901-16010-13	Console Assy, Rear
58940	58901-16010-B0	Console Assy, Rear
58940	58901-16060-01	Console Assy, Rear
58969	58969-20010	Retainer, Console Compartment Door Stopper
58996	58995-16020	Bracket, Console Box Mounting, No.1
58996	58996-16070	Bracket, Console Box Mounting, No.1
58996	58996-16020	Bracket, Console Box Mounting, No.2
58997	58997-16050	Bracket, Console Box Mounting, No.3
58997	58997-16090	Bracket, Console Box Mounting, No.3
9017604001	90176-04001	Nut
9018304006	90183-04006	New Genuine Part
9018305094	90183-05094	NUT
9018905003	90189-05003	CLIP
9018905024	90189-05024	NUT
9025403002	90254-03002	New Genuine Part
9356054012	93560-54012	Screw
9356055014	93560-55014	SCREW
9356055016	93560-55016	Screw(For Mat Set Plate)
9356754512	93567-54512	SCREW
9356754512	93568-54512	SCREW
9356755014	93567-55014	Direct
9356755014	93568-55014	Screw
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
55521-16010	Cover, Radio Tuner Opening	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55521-16030	Cover, Radio Tuner Opening	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55522-16030	Cover, Radio Tuner Opening	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55539-32010-13	Cover, Rear Window Defogger Switch Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55539-32010-25	Cover, Spare Switch Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55539-32010-C0	Cover, Cooler Switch Hole (BLACK)	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55548-16020-01	Cover, Spare Switch Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
55548-16020-05	Cover, Spare Switch Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58802-16010-05	Console Assy	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58802-16010-13	Console Assy	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58802-16010-15	Console Assy	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58802-16010-B0	Console Assy	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58808-16030-05	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58808-16030-13	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58808-16060-01	Cover Sub-Assy, Shifting Hole	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58811-16100-01	Console Assy	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58813-16040-01	Console Sub-Assy, Upper	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58813-16040-03	Console Sub-Assy, Upper	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58813-16040-05	Console Sub-Assy, Upper	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58813-16040-15	Console Sub-Assy, Upper	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58827-20021	Spacer, Console Compartment Door Stopper	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58901-16010-05	Console Assy, Rear	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58901-16010-13	Console Assy, Rear	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58901-16010-15	Console Assy, Rear	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58901-16010-B0	Console Assy, Rear	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58901-16060-01	Console Assy, Rear	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58905-16020-01	Door Sub-Assy, Console Compartment	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58919-16010-01	Plate, Console Box	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58969-20010	Retainer, Console Compartment Door Stopper	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58976-22020	Lock Sub-Assy, Console Compartment Door	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58995-16020	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58996-16020	Bracket, Console Box Mounting, No.2	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58996-16070	Bracket, Console Box Mounting, No.1	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58997-16050	Bracket, Console Box Mounting, No.3	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
58997-16090	Bracket, Console Box Mounting, No.3	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
90176-04001	Nut	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
90183-04006	New Genuine Part	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
90183-05094	NUT	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
90189-05003	CLIP	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
90189-05024	NUT	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
90254-03002	New Genuine Part	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93560-54012	Screw	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93560-55014	SCREW	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93560-55016	Screw(For Mat Set Plate)	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93567-54512	SCREW	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93567-55014	Direct	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93567-55016	Screw	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93568-54512	SCREW	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93568-55014	Screw	Console Box & Bracket ([05.1986 - ] (8605- )AL25)
93568-55016	Screw	Console Box & Bracket ([05.1986 - ] (8605- )AL25)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 152
Collected: 2026-08-02
