Search › Model › AL25
AL25

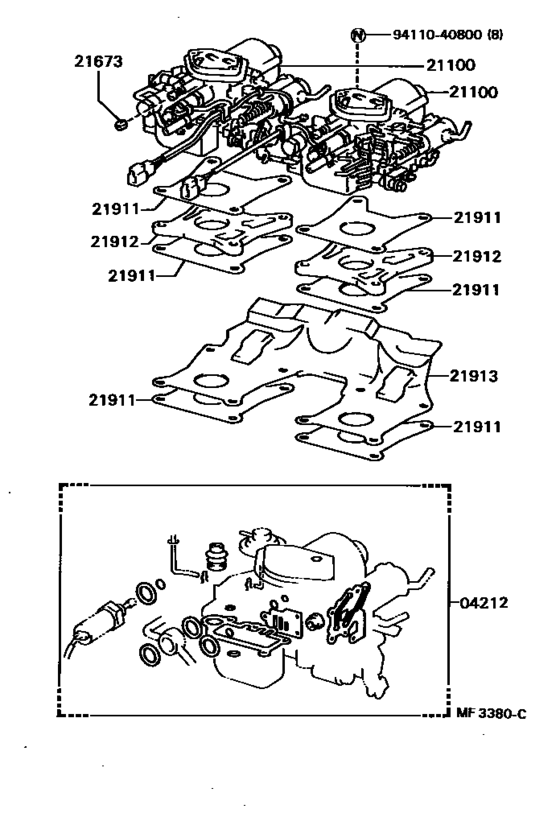

Carburetor Assembly ([08.1984 - ] (8408- )3ASU) 11
| # | OEM | Part name |
|---|---|---|
| 4212 | 04212-15111 | Gasket Kit, Carburetor |
| 21100 | 21100-15390 | Carburetor Assy |
| 21100 | 21100-15391 | Carburetor Assy |
| 21100 | 21100-15400 | Carburetor Assy |
| 21100 | 21100-15401 | Carburetor Assy |
| 21673 | 21673-13280 | Cap, Idle Limit |
| 21911 | 21911-15050 | Gasket, Carburetor |
| 21912 | 21901-15080 | Insulator, Carburetor Heat |
| 21913 | 21913-15060 | Insulator, Carburetor Heat, No.2 |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04212-15111 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21100-15390 | Carburetor Assy | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21100-15391 | Carburetor Assy | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21100-15400 | Carburetor Assy | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21100-15401 | Carburetor Assy | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21673-13280 | Cap, Idle Limit | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21901-15080 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21911-15050 | Gasket, Carburetor | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 21913-15060 | Insulator, Carburetor Heat, No.2 | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([08.1984 - ] (8408- )3ASU) |
