Search › Model › AL25

AL25

Toyota CORSA-TERCEL · 1984 · 3,847 parts · 152 categories

3,847 items

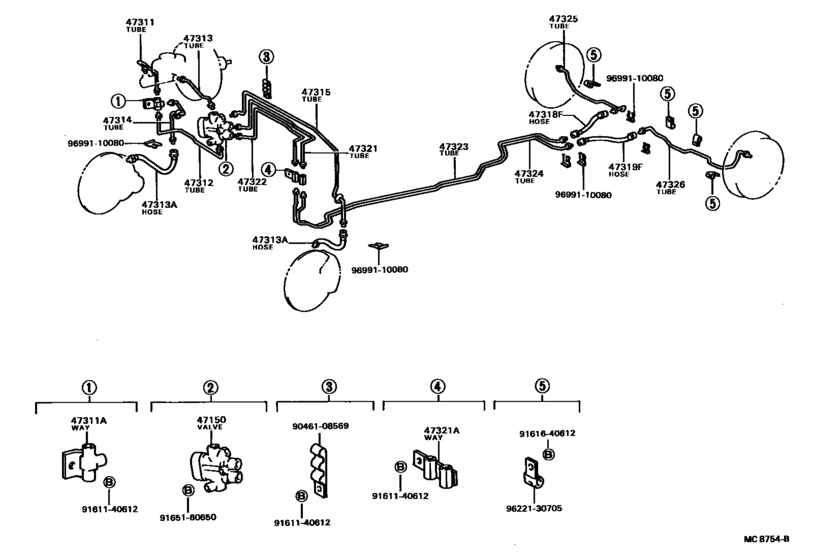

Brake Tube & Clamp ([08.1984 - ] (8408- )AL25) 26

#	OEM	Part name
47150	47150-16050	Valve Assy, Proportioning
47311	47311-16041	Tube, Front Brake, No.1
47311	90413-10004	Way(For Front Brake Tube)
47312	47312-16041	Tube, Front Brake, No.2
47313	47313-16051	Tube, Front Brake, No.3
47313	90947-02437	Hose, Flexible, No.1(For Front)
47314	47314-16041	Tube, Front Brake, No.4
47315	47315-16021	Tube, Front Brake, No.5
47318	96950-33005	Hose, Flexible(For Rear Rh)
47318	90947-02348	Hose, Flexible, No.1(For Front)
47319	96950-32605	Hose, Flexible(For Rear Lh)
47321	47321-16031	Tube, Rear Brake, No.1
47321	90412-10096	Way(For Rear Brake Tube)
47322	47322-16021	Tube, Rear Brake, No.2
47323	47323-16051	Tube, Rear Brake, No.3
47324	47324-16041	Tube, Rear Brake, No.4
47325	47325-16041	Tube, Rear Brake, No.5
47326	47326-16021	Tube, Rear Brake, No.6
9046108569	90461-08569	New Genuine Part
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9161640612	91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9165160650	91651-60650	New Genuine Part
9165160650	90119-06675	New Genuine Part
9622130705	96221-30705	Clamp, Brake Tube, No.4
9699110080	96991-10080	CLIP

OEM	Part name	Category
47150-16050	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47311-16041	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47312-16041	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47313-16051	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47314-16041	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47315-16021	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47321-16031	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47322-16021	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47323-16051	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47324-16041	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47325-16041	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
47326-16021	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
90119-06675	New Genuine Part	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
90412-10096	Way(For Rear Brake Tube)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
90413-10004	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
90461-08569	New Genuine Part	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
90947-02348	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
90947-02437	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
91611-G0612	Bolt	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
91616-40612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
91651-60650	New Genuine Part	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
96221-30705	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
96950-32605	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
96950-33005	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)
96991-10080	CLIP	Brake Tube & Clamp ([08.1984 - ] (8408- )AL25)

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 152
Collected: 2026-08-02
