AL12

Toyota TERCEL · 1979 · 4,412 parts · 158 categories

4,412 items

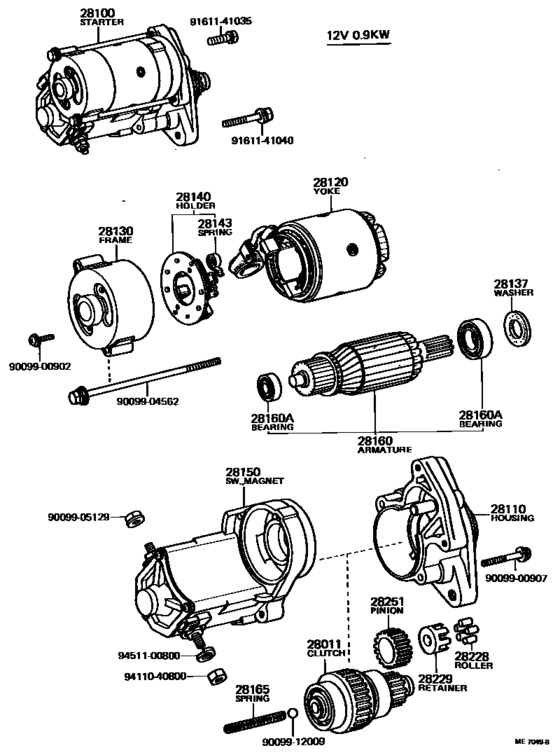

Starter ([08.1979 - 07.1982] (7908-8207)) 40

#	OEM	Part name
28011	28011-15010	Clutch Sub-Assy, Starter
28011	28011-26042	Clutch Sub-Assy, Starter
28100	28100-15011	Starter Assy
28100	28100-15020	Starter Assy
28110	28110-15011	Housing Assy, Starter Drive
28110	28110-15020	Housing Assy, Starter Drive
28120	28120-15010	Yoke Assy, Starter
28120	28120-26070	Yoke Assy, Starter
28120	28120-26071	Yoke Assy, Starter
28130	28130-15010	Frame Assy, Starter Commutator End
28130	28130-15020	Frame Assy, Starter Commutator End
28137	90099-02323	Washer, Felt, Starter
28140	28140-15010	Holder Assy, Starter Brush
28140	28140-26070	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-15011	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28150	28150-15012	Switch Assy, Magnet Starter
28150	28150-15020	Switch Assy, Magnet Starter
28160	28160-15010	Armature Assy, Starter
28160	28160-26070	Armature Assy, Starter
28160	28160-26071	Armature Assy, Starter
28160	28253-45020	Bearing, Starter Armature
28160	90099-10113	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28251	28254-45020	Pinion, Starter Drive
9009900902	90099-00902	Screw, W/washer(For Bearing Cover Setting)
9009900907	90099-00907	New Genuine Part
9009904562	90099-04562	BOLT
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9161141035	91611-41035	New Genuine Part
9161141035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161141040	91611-41040	Bolt(for Transaxle Case & Engine Setting)
9161141040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-15010	Clutch Sub-Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28011-26042	Clutch Sub-Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28100-15011	Starter Assy	Starter ([08.1979 - 07.1982] (7908-8207))
28100-15020	Starter Assy	Starter ([08.1979 - 07.1982] (7908-8207))
28110-15011	Housing Assy, Starter Drive	Starter ([08.1979 - 07.1982] (7908-8207))
28110-15020	Housing Assy, Starter Drive	Starter ([08.1979 - 07.1982] (7908-8207))
28120-15010	Yoke Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28120-26070	Yoke Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28120-26071	Yoke Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28130-15010	Frame Assy, Starter Commutator End	Starter ([08.1979 - 07.1982] (7908-8207))
28130-15020	Frame Assy, Starter Commutator End	Starter ([08.1979 - 07.1982] (7908-8207))
28140-15010	Holder Assy, Starter Brush	Starter ([08.1979 - 07.1982] (7908-8207))
28140-26070	Holder Assy, Starter Brush	Starter ([08.1979 - 07.1982] (7908-8207))
28150-15011	Switch Assy, Magnet Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28150-15012	Switch Assy, Magnet Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28150-15020	Switch Assy, Magnet Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28150-37011	Switch Assy, Magnet Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28160-15010	Armature Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28160-26070	Armature Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28160-26071	Armature Assy, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
28165-26040	Spring, Starter Magnet Switch Return	Starter ([08.1979 - 07.1982] (7908-8207))
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1979 - 07.1982] (7908-8207))
28229-26040	Retainer, Starter Idle Gear	Starter ([08.1979 - 07.1982] (7908-8207))
28253-45020	Bearing, Starter Armature	Starter ([08.1979 - 07.1982] (7908-8207))
28254-45020	Pinion, Starter Drive	Starter ([08.1979 - 07.1982] (7908-8207))
90099-00902	Screw, W/washer(For Bearing Cover Setting)	Starter ([08.1979 - 07.1982] (7908-8207))
90099-00907	New Genuine Part	Starter ([08.1979 - 07.1982] (7908-8207))
90099-02323	Washer, Felt, Starter	Starter ([08.1979 - 07.1982] (7908-8207))
90099-04562	BOLT	Starter ([08.1979 - 07.1982] (7908-8207))
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1979 - 07.1982] (7908-8207))
90099-10113	Bearing, Starter Armature	Starter ([08.1979 - 07.1982] (7908-8207))
90099-12009	Ball, Starter Clutch	Starter ([08.1979 - 07.1982] (7908-8207))
90099-17112	Spring, Starter Brush	Starter ([08.1979 - 07.1982] (7908-8207))
91611-41035	New Genuine Part	Starter ([08.1979 - 07.1982] (7908-8207))
91611-41040	Bolt(for Transaxle Case & Engine Setting)	Starter ([08.1979 - 07.1982] (7908-8207))
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Starter ([08.1979 - 07.1982] (7908-8207))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Starter ([08.1979 - 07.1982] (7908-8207))
94110-40800	Nut(For Steering Damper)	Starter ([08.1979 - 07.1982] (7908-8207))
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([08.1979 - 07.1982] (7908-8207))
94511-00800	WASHERSPRING	Starter ([08.1979 - 07.1982] (7908-8207))
