AL10

Toyota TERCEL · 1979 · 3,637 parts · 143 categories
AL10 ×

← Back to categories

3,637 items

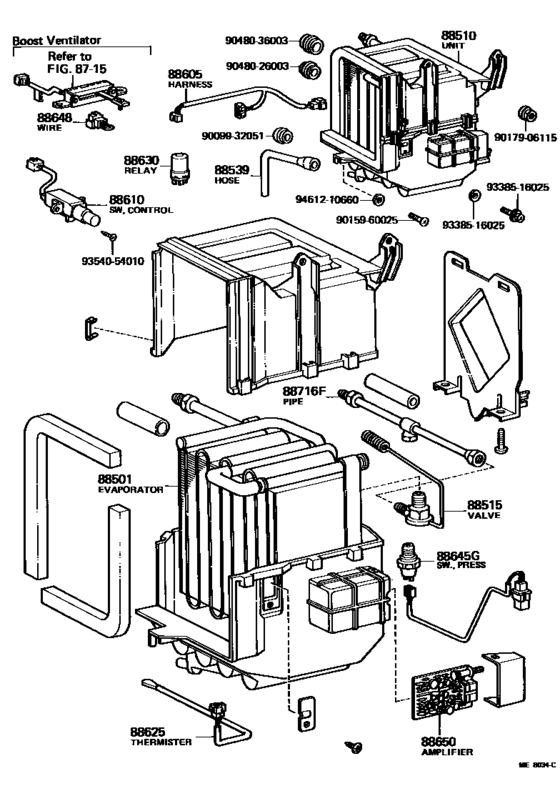

Heating & Air Conditioning - Cooler Unit ([08.1979 - 07.1982] (7908-8207)USA) 24
#OEMPart name
88501 88501-16020 Evaporator Sub-Assy, Cooler, No.1
88501 88501-16040 Evaporator Sub-Assy, Cooler, No.1
88510 88510-16040 Unit Assy, Cooler
88515 88515-20040 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88539 88539-10030 Hose, Cooler Unit Drain, No.1
88605 88605-16051 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-16061 Harness Sub-Assy, Cooler Wiring, No.1
88610 84660-16010 Switch Assy, Cooler Control
88625 88625-20040 Thermistor, Cooler, No.1
88630 90987-01001 Relay, Fuel Lid Opener
88630 90999-99088 Relay, Fuel Lid Opener
88648 88648-16020 Wiring, Cooler, No.1 - COOLER, NO.2
88650 88650-16010 Harness Sub-Assy, Cooler Wiring, No.1
88716 88716-16070 Pipe, Cooler Refrigerant Liquid, F
9009932051 90099-32051 New Genuine Part
9015960025 90159-60025 SCREW W-WASHER
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9048026003 90480-26003 Grommet (For Cooler Unit)
9048036003 90480-36003 Grommet (For Cooler Unit)
9338516025 93385-16025 New Genuine Part
9354054010 93540-54010 Screw, Roof Headlining Trim
9461210660 94612-10660 New Genuine Part
9461210660 90093-00608 New Genuine Part
