AL10

Toyota TERCEL · 1979 · 3,637 parts · 143 categories
AL10 ×

← Back to categories

3,637 items

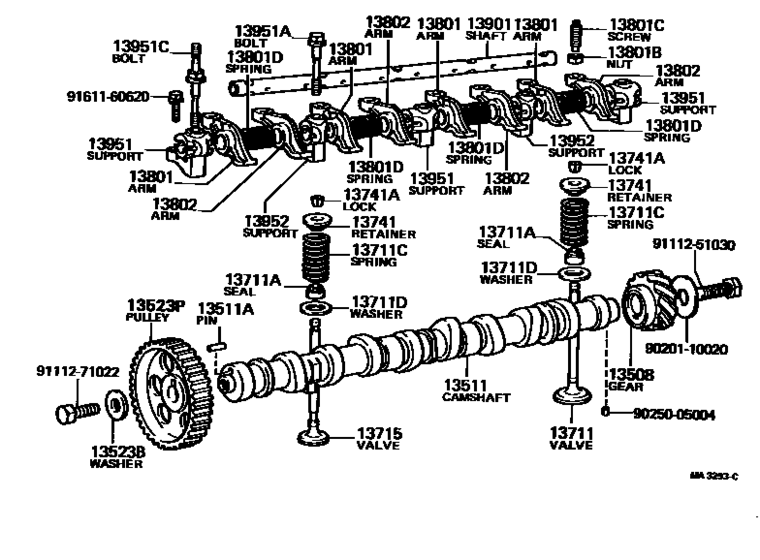

Camshaft & Valve ([08.1979 - 07.1982] (7908-8207)) 31
#OEMPart name
13508 13508-15010 Gear Sub-Assy, Distributor Drive
13511 13511-14010 Camshaft
13511 90250-05121 Pin, Straight, No.3(For Camshaft Knock)
13523 90201-10019 Washer, Plate(For Timing Gear)
13523 13523-14010 Pulley, Camshaft Timing
13711 13711-15010 Valve, Intake
13711 13711-15030 Valve, Intake
13711 90913-02038 Seal Or Ring, O(For Valve Stem Oil)
13711 90501-42004 Spring, Compression(For Outer)
13711 90501-42003 Spring, Compression(For Outer)
13711 90201-21002 Washer, Plate(For Valve Spring Seat)
13715 13715-15010 Valve, Exhaust
13741 13741-15010 Retainer, Valve Spring
13741 90913-03017 Lock, Valve Spring Retainer
13801 13811-15010 Arm Sub-Assy, Valve Rocker, No.1
13801 90170-07001 Nut, Hexagon(For Valve Adjusting)
13801 90913-05018 Screw, Valve Adjusting
13801 90501-14025 Spring, Compression(For Rocker Arm)
13802 13812-15010 Arm Sub-Assy, Valve Rocker, No.2
13901 13901-15010 Shaft Sub-Assy, Valve Rocker, No.1
13951 13951-15010 Support, Valve Rocker, No.1
13951 90109-08029 Bolt(For Rocker Support Set)
13951 90109-08028 Bolt, Stud(For Rocker Support)
13952 13952-15010 Support, Valve Rocker, No.2
9020110020 90201-10020 WASHER
9025005004 90250-05004 New Genuine Part
9111251030 91112-51030 Pin Or Bolt(For Steering Worm Yoke)
9111251030 91112-61032 Pin Or Bolt(For Steering Worm Yoke)
9111271022 91112-71022 New Genuine Part
9111271022 91111-71022 New Genuine Part
9161160620 91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock)
