Search › Model › AHV41

AHV41

Toyota CAMRY-VISTA-AURION · 2010 · 3,020 parts · 157 categories

3,020 items

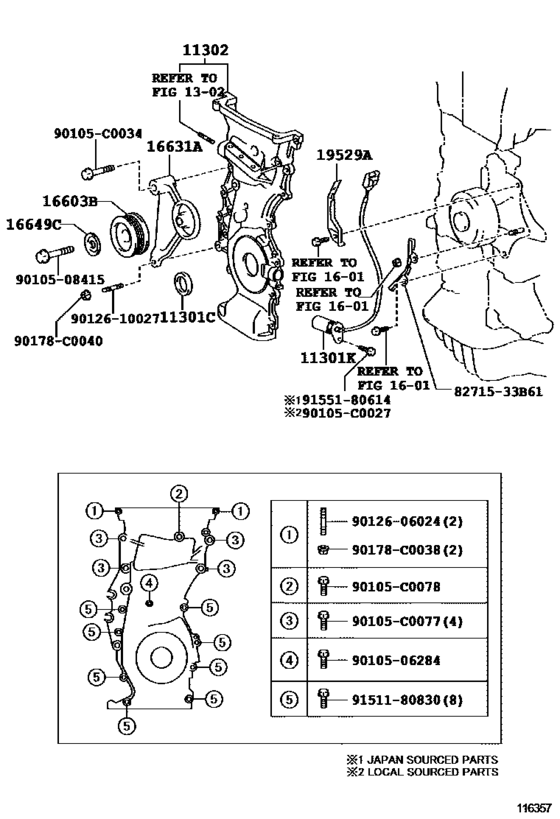

Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE) 21

#	OEM	Part name
11301	90311-T0024	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05067	Sensor, Crank Position
11302	11310-0H060	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-28071	Cover Sub-Assy, Timing Chain Or Belt
16603	16603-28030	Pulley Sub-Assy, Idler
16631	16631-28020	Bracket, Idler Pulley
16649	16649-28010	Plate, Idler Pulley Cover
19529	19529-28050	Clamp
90105	90105-C0027	New Genuine Part
90105	90105-C0034	Bolt(For Alternator)
90105	90105-C0077	New Genuine Part
90105	90105-C0078	New Genuine Part
90178	90178-C0038	New Genuine Part
90178	90178-C0040	New Genuine Part
8271533	82715-33B61	Bracket,wiring Harness Clamp
9010506284	90105-06284	New Genuine Part
9010508415	90105-08415	New Genuine Part
9012606024	90126-06024	STUD HEX LOBULAR
9012610027	90126-10027	STUD HEX LOBULAR
9151180830	91511-80830	Bolt(For Alternator)
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)

OEM	Part name	Category
11310-0H060	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
11310-28071	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
16603-28030	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
16631-28020	Bracket, Idler Pulley	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
16649-28010	Plate, Idler Pulley Cover	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
19529-28050	Clamp	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
82715-33B61	Bracket,wiring Harness Clamp	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90105-06284	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90105-08415	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90105-C0027	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90105-C0034	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90105-C0077	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90105-C0078	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90126-06024	STUD HEX LOBULAR	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90126-10027	STUD HEX LOBULAR	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90178-C0038	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90178-C0040	New Genuine Part	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90311-T0024	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
90919-05067	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
91511-80830	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Timing Gear Cover & Rear End Plate ([03.2010 - ] (1003- )3AZFXE)
