Search › Model › AHV41

AHV41

Toyota CAMRY-VISTA-AURION · 2010 · 3,020 parts · 157 categories

3,020 items

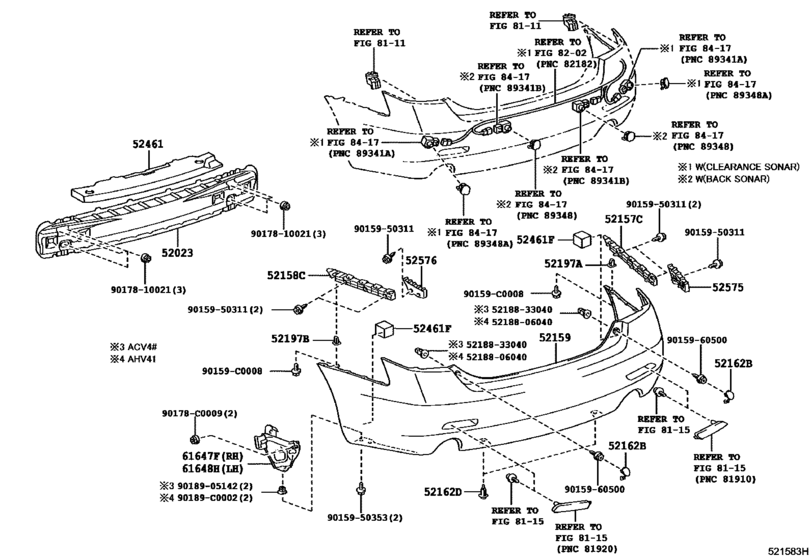

Rear Bumper & Bumper Stay ([05.2006 - ] (0605- )) 27

#	OEM	Part name
52023	52023-06090	Reinforcement Sub-Assy, Rear Bumper
52157	52157-06040	Support, Rear Bumper Side, No.2 Rh
52158	52158-06040	Support, Rear Bumper Side, No.2 Lh
52159	52159-06955	Cover, Rear Bumper
52162	52163-06905	Plate, Rear Bumper, No.1
52162	52164-06905	Plate, Rear Bumper, No.1
52162	52161-16010	Clip
52162	52161-0K040	Clip
52162	52161-02020	Clip
52197	52197-22020	Grommet, Rear Bumper Stay
52461	52461-06020	Pad, Rear Bumper, Center
52461	52462-06040	Pad, Rear Bumper
52575	52575-06070	Retainer, Rear Bumper Side, Rh
52576	52576-06070	Retainer, Rear Bumper Side, Lh
61647	61647-06040	Reinforcement, Wheel House, Rh
61648	61648-06040	Reinforcement, Wheel House, Lh
90159	90159-C0008	New Genuine Part
90178	90178-C0009	New Genuine Part
90189	90189-C0002	New Genuine Part
5218806040	52188-06040	Spacer, Rear Bumper Mounting
5218833040	52188-33040	Grommet(For Rear Bumper)
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015950353	90159-50353	SCREW, W-WASHER
9015960500	90159-60500	SCREW WWASHER
9017810021	90178-10021	NUT FLANGE
9018905142	90189-05142	GROMMET, SCREW

OEM	Part name	Category
52023-06090	Reinforcement Sub-Assy, Rear Bumper	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52157-06040	Support, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52158-06040	Support, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52159-06955	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52161-02020	Clip	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52161-0K040	Clip	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52161-16010	Clip	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52163-06905	Plate, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52164-06905	Plate, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52188-06040	Spacer, Rear Bumper Mounting	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52188-33040	Grommet(For Rear Bumper)	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52197-22020	Grommet, Rear Bumper Stay	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52461-06020	Pad, Rear Bumper, Center	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52462-06040	Pad, Rear Bumper	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52575-06070	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
52576-06070	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
61647-06040	Reinforcement, Wheel House, Rh	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
61648-06040	Reinforcement, Wheel House, Lh	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90159-50311	SCREW	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90159-50353	SCREW, W-WASHER	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90159-60500	SCREW WWASHER	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90159-C0008	New Genuine Part	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90178-10021	NUT FLANGE	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90178-C0009	New Genuine Part	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90189-05142	GROMMET, SCREW	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))
90189-C0002	New Genuine Part	Rear Bumper & Bumper Stay ([05.2006 - ] (0605- ))

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 157
Collected: 2026-08-02
