AHV41

Toyota CAMRY-VISTA-AURION · 2010 · 3,020 parts · 157 categories

3,020 items

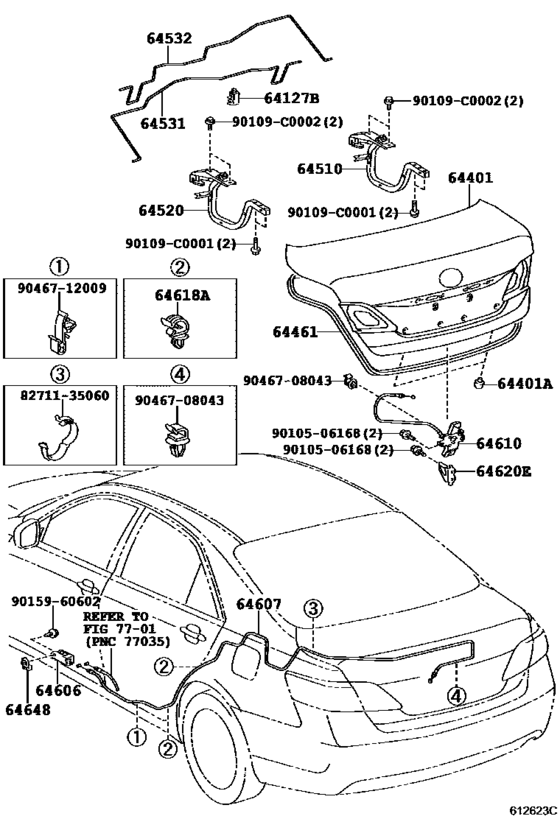

Luggage Compartment Door & Lock ([05.2006 - ] (0605- )) 20

#	OEM	Part name
64127	64127-06030	Support, Luggage Compartment Door Torsion Bar
64401	64401-06530	Panel Sub-Assy, Luggage Compartment Door
64401	90541-09116	Cushion(For Luggage Compartment Door Panel)
64461	64461-06100	Weatherstrip, Luggage Compartment Door
64510	64510-33080	Hinge Assy, Luggage Compartment Door, Rh
64531	64531-06163	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-06181	Bar, Luggage Door Hinge Torsion, Lh
64606	64606-06100	Lever Sub-Assy, Luggage Door Lock Open - FUEL LID LOCK OPEN
64607	64607-06140	Cable Sub-Assy, Luggage Door Lock Control
64610	64600-06032	Lock Assy, Luggage Compartment Door
64618	82711-1E260	Clamp (For Fuel Lid Lock Control Cable)
64620	64621-06060	Striker Assy, Luggage Compartment Door - LUGGAGE COMPARTMENT DOOR LOCK
64648	64648-12020	Grommet, Luggage Door Lock Opener
90109	90109-C0001	New Genuine Part
90109	90109-C0002	New Genuine Part
8271135060	82711-35060	Clamp, Wiring Harness
9010506168	90105-06168	BOLT WASHER BASED
9015960602	90159-60602	SCREW
9046708043	90467-08043	Clamp, Hood Lock Control Cable
9046712009	90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)

OEM	Part name	Category
64127-06030	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64401-06530	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64461-06100	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64510-33080	Hinge Assy, Luggage Compartment Door, Rh	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64531-06163	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64532-06181	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64600-06032	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64606-06100	Lever Sub-Assy, Luggage Door Lock Open - FUEL LID LOCK OPEN	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64607-06140	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64621-06060	Striker Assy, Luggage Compartment Door - LUGGAGE COMPARTMENT DOOR LOCK	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
64648-12020	Grommet, Luggage Door Lock Opener	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
82711-1E260	Clamp (For Fuel Lid Lock Control Cable)	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
82711-35060	Clamp, Wiring Harness	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90109-C0001	New Genuine Part	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90109-C0002	New Genuine Part	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90159-60602	SCREW	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90467-08043	Clamp, Hood Lock Control Cable	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90467-12009	Clamp, No.1(For Luggage Door Lock Control Cable)	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
90541-09116	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([05.2006 - ] (0605- ))
