AHV41

Toyota CAMRY-VISTA-AURION · 2010 · 3,020 parts · 157 categories

← Back to categories

3,020 items

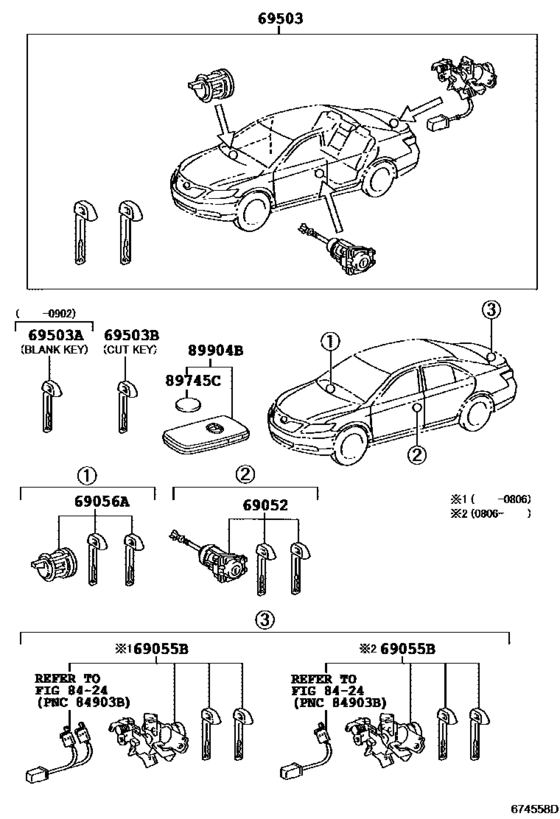

Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD) 8

#	OEM	Part name
69052	69052-06100	Cylinder & Key Set, Door Lock, Lh
69055	69055-06121	Cylinder & Key Set, Back Door Lock
69056	69056-06080	Cylinder & Key Set, Glove Compartment Lock
69503	69005-06411	Cylinder Set, Lock
69503	69515-52110	Key, Cut - for blank key →
89745	89745-52020	Battery, Transmitter
89904	89904-06100	Transmitter Sub-Assy, Electrical Key
89904	89904-06101	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-06411	Cylinder Set, Lock	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
69052-06100	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
69055-06121	Cylinder & Key Set, Back Door Lock	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
69056-06080	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
89745-52020	Battery, Transmitter	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
89904-06100	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
89904-06101	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([05.2006 - ] W(SMART ENTRY) (0605- )240G,HBD)
