Search › Model › AHV41

AHV41

Toyota CAMRY-VISTA-AURION · 2010 · 3,020 parts · 157 categories

3,020 items

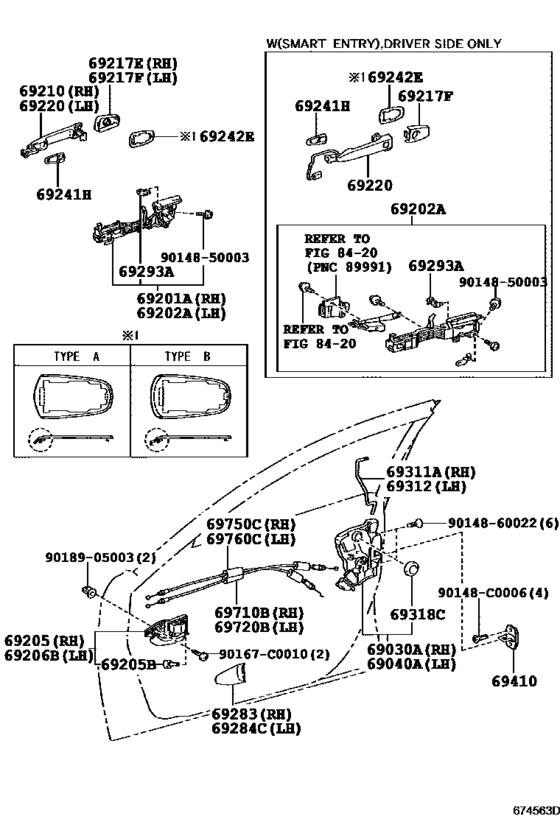

Front Door Lock & Handle ([05.2006 - ] (0605- )) 53

#	OEM	Part name
69030	69030-06221	Lock Assy, Front Door W/motor, Rh
69040	69040-06191	Lock Assy, Front Door W/motor, Lh
69201	69201-06060	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-06070	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-06080-E0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04014	Cushion, Console Box
69206	69206-06080-E0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-0P010-A1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69210	69210-0P010-B1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69210	69210-0P010-B2	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69210	69210-0P010-C0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69210	69210-0P010-E2	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69210	69210-0P010-J1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH
69210	69210-0P010-J2	Handle Assy, Front Door, Outside Rh
69217	69250-0N020-A1	Cover, Front Door Outside Handle, Rh
69217	69250-0N020-B2	Cover, Front Door Outside Handle, Rh
69217	69250-0N020-B3	Cover, Front Door Outside Handle, Rh
69217	69250-0N020-C0	Cover, Front Door Outside Handle, Rh
69217	69250-0N020-E2	Cover, Front Door Outside Handle, Rh
69217	69250-0N020-J1	Cover, Front Door Outside Handle, Rh
69217	69250-0N020-J2	Cover, Front Door Outside Handle, Rh
69217	69250-0N010-A1	Cover, Front Door Outside Handle, Lh
69217	69250-0N010-B2	Cover, Front Door Outside Handle, Lh
69217	69250-0N010-B3	Cover, Front Door Outside Handle, Lh
69217	69250-0N010-C0	Cover, Front Door Outside Handle, Lh
69217	69250-0N010-E2	Cover, Front Door Outside Handle, Lh
69217	69250-0N010-J1	Cover, Front Door Outside Handle, Lh
69217	69250-0N010-J2	Cover, Front Door Outside Handle, Lh
69220	69210-06090-A0	Handle Assy, Front Door, Outside Rh
69220	69210-06090-B0	Handle Assy, Front Door, Outside Rh
69220	69210-06090-B1	Handle Assy, Front Door, Outside Rh
69220	69210-06090-C0	Handle Assy, Front Door, Outside Rh
69220	69210-06090-E1	Handle Assy, Front Door, Outside Rh
69220	69210-06090-J1	Handle Assy, Front Door, Outside Rh
69220	69210-06090-J2	Handle Assy, Front Door Outside, Lh
69241	69241-06040	Pad, Rear Door Outside Handle, Front
69242	69242-06040	Pad, Front Door Outside Handle, Rear
69283	69283-06050-E0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-06050-E0	Plug, Front Door Inside Handle Bezel, Lh
69293	69293-0D010	Snap, Front Door Outside Handle
69293	69293-0D020	Snap, Front Door Outside Handle
69311	69311-06090	Rod, Front Door Lock Open, Rh
69312	69312-06090	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69410	69410-0P010	Plate Assy, Front Door Lock Striker
69710	69710-06090	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-06080	Cable Assy, Front Door Inside Locking, Rh
90148	90148-C0006	New Genuine Part
90167	90167-C0010	New Genuine Part
9014850003	90148-50003	Screw Hex Lobular
9014860022	90148-60022	BOLT
9014860022	90148-A0005	Hexalobular Screw
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-06221	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69040-06191	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69201-06060	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69202-06070	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69205-06080-E0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69206-06080-E0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-A0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-E1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-J1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-06090-J2	Handle Assy, Front Door Outside, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-A1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-B1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-B2	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-C0	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-E2	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-J1	Handle Assy, Front Door, Outside Rh - REAR DOOR OUTSIDE, RH	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69210-0P010-J2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69241-06040	Pad, Rear Door Outside Handle, Front	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69242-06040	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-A1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-B2	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-B3	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-C0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-E2	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-J1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N010-J2	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-A1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-B2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-B3	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-C0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-E2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-J1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69250-0N020-J2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69283-06050-E0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69284-06050-E0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69293-0D010	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69293-0D020	Snap, Front Door Outside Handle	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69311-06090	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69312-06090	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69410-0P010	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69710-06090	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
69750-06080	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90148-60022	BOLT	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90148-A0005	Hexalobular Screw	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90148-C0006	New Genuine Part	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90167-C0010	New Genuine Part	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90189-05003	CLIP	Front Door Lock & Handle ([05.2006 - ] (0605- ))
90541-04014	Cushion, Console Box	Front Door Lock & Handle ([05.2006 - ] (0605- ))
