Search › Model › AHV41
AHV41

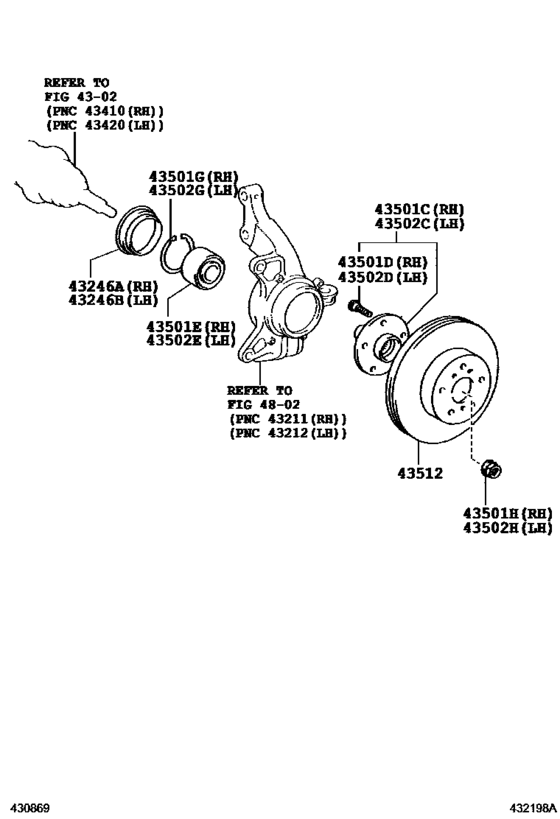

Front Axle Hub ([05.2006 - ] (0605- )) 9
| # | OEM | Part name |
|---|---|---|
| 43246 | 43246-28020 | Deflector, Front Wheel Bearing Dust, No.1 Rh |
| 43501 | 43502-06110 | Hub Sub-Assy, Front Axle, Rh |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90363-C0002 | Bearing (For Front Axle Hub Rh) |
| 43501 | 90520-77001 | Ring, Snap |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-06130 | Disc, Front |
| 43512 | 43512-06131 | Disc, Front |
| OEM | Part name | Category |
|---|---|---|
| 43246-28020 | Deflector, Front Wheel Bearing Dust, No.1 Rh | Front Axle Hub ([05.2006 - ] (0605- )) |
| 43502-06110 | Hub Sub-Assy, Front Axle, Rh | Front Axle Hub ([05.2006 - ] (0605- )) |
| 43512-06130 | Disc, Front | Front Axle Hub ([05.2006 - ] (0605- )) |
| 43512-06131 | Disc, Front | Front Axle Hub ([05.2006 - ] (0605- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([05.2006 - ] (0605- )) |
| 90363-C0002 | Bearing (For Front Axle Hub Rh) | Front Axle Hub ([05.2006 - ] (0605- )) |
| 90520-77001 | Ring, Snap | Front Axle Hub ([05.2006 - ] (0605- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([05.2006 - ] (0605- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([05.2006 - ] (0605- )) |
