Search › Model › AHV40
AHV40

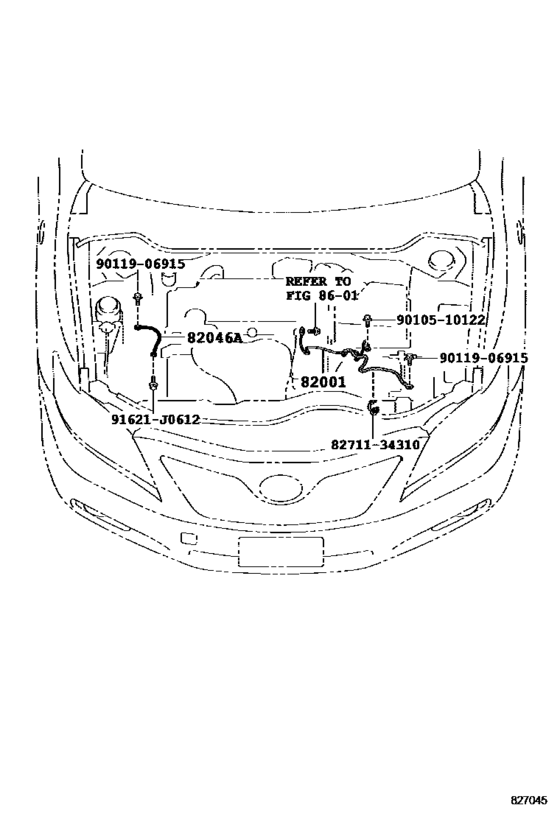

Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) 6
| # | OEM | Part name |
|---|---|---|
| 82001 | 90980-07428 | Cable, Bond, No.1 |
| 82046 | 82046-60150 | Wire Sub-Assy, Body Ground, No.1 |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 8271134310 | 82711-34310 | Clamp(For Hood Lock Control Cable) |
| 9010510122 | 90105-10122 | New Genuine Part |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82046-60150 | Wire Sub-Assy, Body Ground, No.1 | Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) |
| 82711-34310 | Clamp(For Hood Lock Control Cable) | Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) |
| 90105-10122 | New Genuine Part | Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) |
| 90119-06915 | BOLT W-WASHER | Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) |
| 90980-07428 | Cable, Bond, No.1 | Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) |
| 91621-J0612 | BOLT W-WASHER | Wiring & Clamp ([01.2010 - ] CABLE BOND (1001- )AHV40) |
