AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories

← Back to categories

4,530 items

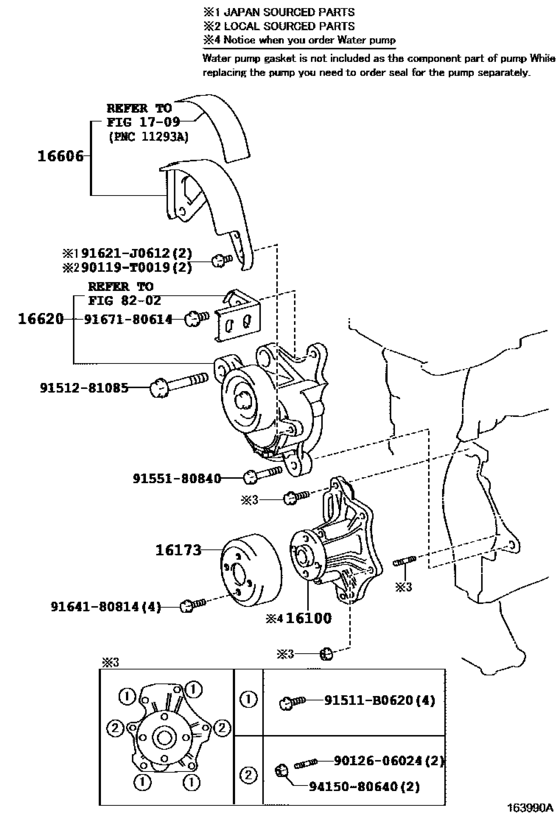

Water Pump ([07.2009 - ] (0907- )2AZFXE) 13

#	OEM	Part name
16100	16100-28041	Pump Assy, Engine Water
16173	16173-28020	Pulley, Water Pump
16606	16606-28030	Cover Sub-Assy, V-Ribbed Belt Tensioner
16620	16620-28050	Tensioner Assy, V-Ribbed Belt
90119	90119-T0019	New Genuine Part
91511	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
91621	91621-J0612	BOLT W-WASHER
9012606024	90126-06024	STUD HEX LOBULAR
9151281085	91512-81085	Bolt(For Alternator)
9155180840	91551-80840	Bolt(For Head To Camshaft Bearing Cap)
9164180814	91641-80814	BOLTWWASHER
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16100-28041	Pump Assy, Engine Water	Water Pump ([07.2009 - ] (0907- )2AZFXE)
16173-28020	Pulley, Water Pump	Water Pump ([07.2009 - ] (0907- )2AZFXE)
16606-28030	Cover Sub-Assy, V-Ribbed Belt Tensioner	Water Pump ([07.2009 - ] (0907- )2AZFXE)
16620-28050	Tensioner Assy, V-Ribbed Belt	Water Pump ([07.2009 - ] (0907- )2AZFXE)
90119-T0019	New Genuine Part	Water Pump ([07.2009 - ] (0907- )2AZFXE)
90126-06024	STUD HEX LOBULAR	Water Pump ([07.2009 - ] (0907- )2AZFXE)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Water Pump ([07.2009 - ] (0907- )2AZFXE)
91512-81085	Bolt(For Alternator)	Water Pump ([07.2009 - ] (0907- )2AZFXE)
91551-80840	Bolt(For Head To Camshaft Bearing Cap)	Water Pump ([07.2009 - ] (0907- )2AZFXE)
91621-J0612	BOLT W-WASHER	Water Pump ([07.2009 - ] (0907- )2AZFXE)
91641-80814	BOLTWWASHER	Water Pump ([07.2009 - ] (0907- )2AZFXE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Water Pump ([07.2009 - ] (0907- )2AZFXE)
94150-80640	NUT FLANGE	Water Pump ([07.2009 - ] (0907- )2AZFXE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 320
Collected: 2026-08-02
