Search › Model › AHV40
AHV40

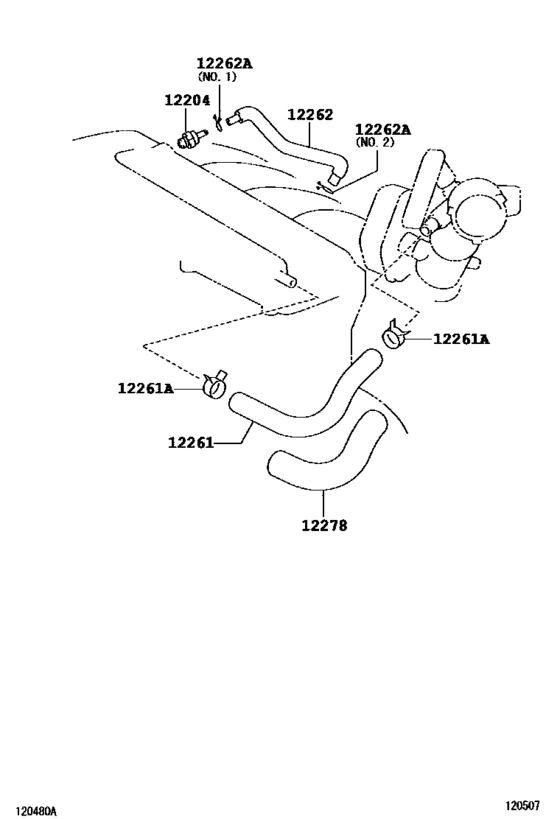

Ventilation Hose ([06.2006 - ] (0606- )2AZ#) 8
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-28030 | Valve Sub-Assy, Ventilation |
| 12261 | 12261-0H090 | Hose, Ventilation |
| 12261 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 96134-41900 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-0H030 | Hose, Ventilation, No.2 |
| 12262 | 90467-13103 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12278 | 12278-0H040 | Insulator, Ventilation Hose Heat |
| OEM | Part name | Category |
|---|---|---|
| 12204-28030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 12261-0H090 | Hose, Ventilation | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 12262-0H030 | Hose, Ventilation, No.2 | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 12278-0H040 | Insulator, Ventilation Hose Heat | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 90467-13103 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
| 96134-41900 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([06.2006 - ] (0606- )2AZ#) |
