AHV40

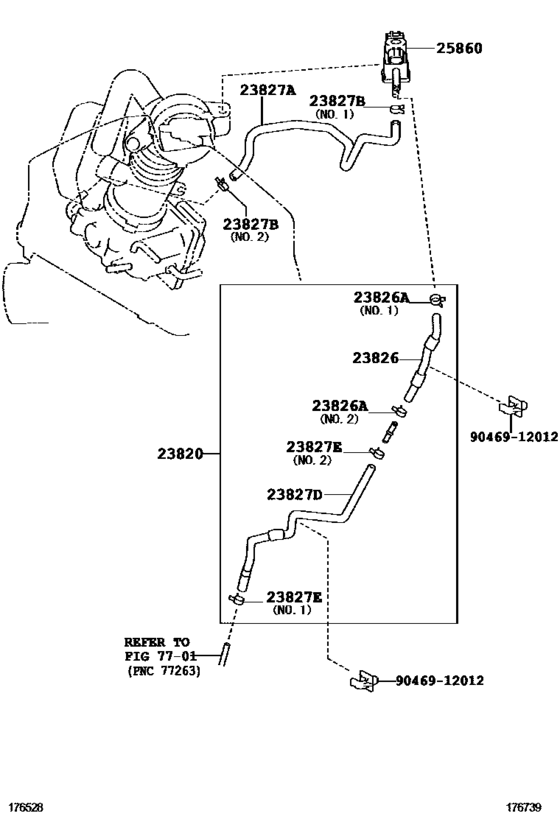

Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) 11
| # | OEM | Part name |
|---|---|---|
| 23820 | 23820-0H180 | Hose Assy, Fuel Vapor Feed |
| 23826 | 23826-0H310 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23826 | 96132-51100 | Clip (For Hose) |
| 23827 | 23826-0H140 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51000 | Clip Or Clamp(For Ventilation Hose) |
| 23827 | 23827-0H130 | Hose, Fuel Vapor Feed, No.2 |
| 23827 | 96132-51300 | Clip(For Ventilation Hose No.2) |
| 25860 | 25860-28160 | Valve Assy, Vacuum Switching, No.1 |
| 9046912012 | 90469-12012 | Clamp Or Clip(For Fuel Hose) |
| OEM | Part name | Category |
|---|---|---|
| 23820-0H180 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 23826-0H140 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 23826-0H310 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 23827-0H130 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 25860-28160 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 90469-12012 | Clamp Or Clip(For Fuel Hose) | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 96132-51000 | Clip Or Clamp(For Ventilation Hose) | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 96132-51100 | Clip (For Hose) | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
| 96132-51300 | Clip(For Ventilation Hose No.2) | Vacuum Piping ([01.2010 - ] (1001- )2AZFXE) |
