Search › Model › AHV40

AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories
AHV40 ×

← Back to categories

4,530 items

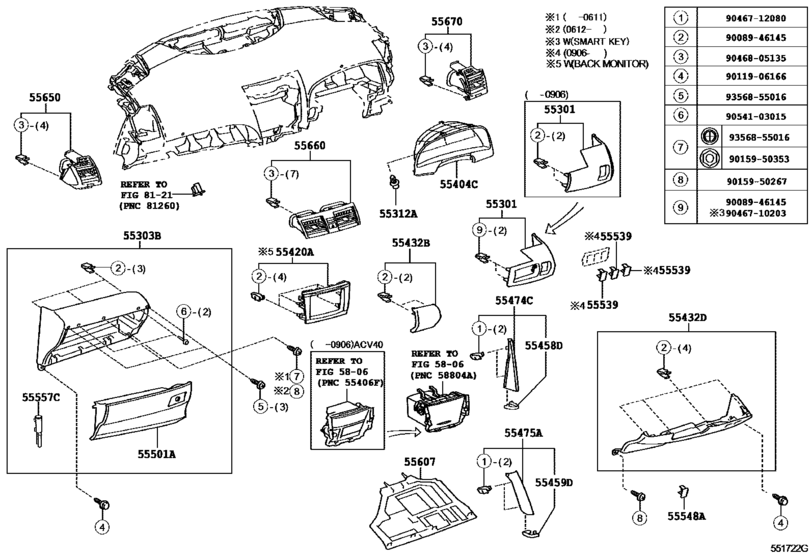

Instrument Panel & Glove Compartment ([06.2006 - 02.2010] (0606-1002)ACV40,AHV40..ARL) 40
#OEMPart name
55301 55301-33060-B0 Panel Sub-Assy, Instrument
55301 55301-33060-E0 Panel Sub-Assy, Instrument
55303 55303-06260-B0 Panel Sub-Assy, Instrument, Lower
55303 55303-06260-E0 Panel Sub-Assy, Instrument, Lower
55312 90467-07071-22 Clip, Instrument Panel
55404 55404-06040 Panel Sub-Assy, Instrument Cluster Finish, No.2
55404 55404-06041 Panel Sub-Assy, Instrument Cluster Finish, No.2
55420 55420-06040 Panel Assy, Instrument Cluster Finish, Center
55432 55480-06080-B0 Panel, Instrument Panel Finish, Lower
55432 55480-33120-B0 Panel, Instrument Panel Finish, Lower
55432 55480-06080-E0 Panel, Instrument Panel Finish, Lower
55432 55480-33120-E0 Panel, Instrument Panel Finish, Lower
55432 55302-06040-B0 Panel, Instrument Panel Finish, Lower No.1
55432 55302-06040-E0 Panel, Instrument Panel Finish, Lower No.1
55458 55458-06040-B0 Cover, Instrument Lower, Rh
55459 55459-06040-B0 Cover, Instrument, Lower Lh
55474 55474-06040-B0 Garnish, Instrument Cluster Finish Panel, No.1
55475 55475-06040-B0 Garnish, Instrument Cluster Finish Panel, No.2
55501 55501-06040-B0 Door Sub-Assy, Glove Compartment
55501 55501-06040-E0 Door Sub-Assy, Glove Compartment
55501 55501-33020-E0 Door Sub-Assy, Glove Compartment
55539 55539-06050-B0 Cover, Spare Switch Hole
55539 55539-06050-E0 Cover, Spare Switch Hole
55548 55548-06050-B0 Cover, Instrument Panel Hole
55548 55548-06050-E0 Cover, Instrument Panel Hole
55548 55548-33040-E0 Cover, Instrument Panel Hole
55557 55557-33030 Damper, Glove Compartment Door
55607 55607-06130 Cover Sub-Assy, Instrument Panel Under, No.2
55650 55650-06070-B0 Register Assy, Instrument Panel, No.1
55660 55660-06100-B0 Register Assy, Instrument Panel, No.2
55670 55670-06120-B0 Register Assy, Instrument Panel, No.3
9008946145 90089-46145 Clip(For Console Box)
9011906166 90119-06166 BOLT
9015950267 90159-50267 SCREW WWASHER
9015950353 90159-50353 SCREW, W-WASHER
9046710203 90467-10203 Direct
9046712080 90467-12080 Clip(For Panel, Instrument Cluster Finish)
9046805135 90468-05135 Clip, Instrument Panel
9054103015 90541-03015 Cushion, Instrument Panel Box
9356855016 93568-55016 Screw
