Search › Model › AHV40

AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories

4,530 items

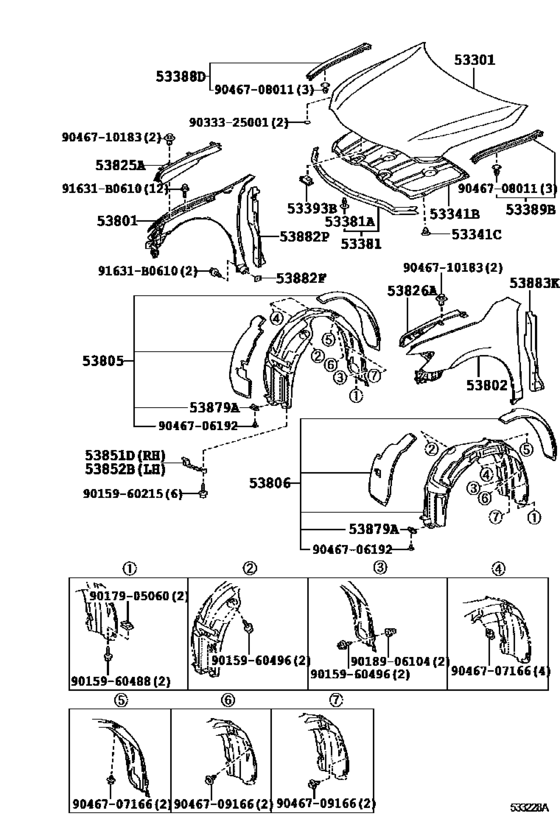

Hood & Front Fender ([01.2010 - ] (1001- )AHV40) 36

#	OEM	Part name
53301	53301-06120	Hood Sub-Assy
53301	53301-33120	Hood Sub-Assy
53341	53341-06240	Insulator, Hood
53341	90467-09050	Clip(For Hood Insulator)
53381	53381-33080	Seal, Hood To Radiator Support
53381	90467-08011	Clip(For Headlamp Cover Seal)
53381	90467-08011-TH	CLIP
53381	90467-08011-83	Clip(For Headlamp Cover Seal)
53388	53388-06040	Seal, Hood To Front Fender, Rh
53389	53389-06040	Seal, Hood To Front Fender, Lh
53393	53393-06020	Protector, Hood, Front
53801	53801-06140	Fender Sub-Assy, Front Rh
53801	53801-33180	Fender Sub-Assy, Front Rh
53802	53802-06150	Fender Sub-Assy, Front Lh
53802	53802-33180	Fender Sub-Assy, Front Lh
53805	53805-33030	Shield Sub-Assy, Front Fender Splash, Rh
53806	53806-33020	Shield Sub-Assy, Front Fender Splash, Lh
53825	53825-06050	Protector, Front Fender, Upper Rh
53826	53826-06050	Protector, Front Fender, Upper Lh
53851	53851-33010	Pad, Front Wheel Opening Extension, Rh
53852	53852-33010	Pad, Front Wheel Opening Extension, Lh
53879	53879-28040	Retainer, Front Fender Liner
53882	53882-16030	Pad, Rear Bumper, Center
53882	53882-06090	Seal, Front Fender, Rh
53883	53883-06080	Seal, Front Fender, Lh
91631	91631-B0610	BOLTWWASHER
9015960215	90159-60215	SCREW
9015960488	90159-60488	SCREW WWASHER
9015960496	90159-60496	SCREW WWASHER
9017905060	90179-05060	LEXNUT
9018906104	90189-06104	CLIP
9033325001	90333-25001	Plug, Hole(For Hood)
9046706192	90467-06192	Clip, Front Fender Liner
9046707166	90467-07166	Clip(For Front Fender Apron Seal)
9046709166	90467-09166	CLIP
9046710183	90467-10183	Clip(For Luggage Compartment Trim Inner Cover)

OEM	Part name	Category
53301-06120	Hood Sub-Assy	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53301-33120	Hood Sub-Assy	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53341-06240	Insulator, Hood	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53381-33080	Seal, Hood To Radiator Support	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53388-06040	Seal, Hood To Front Fender, Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53389-06040	Seal, Hood To Front Fender, Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53393-06020	Protector, Hood, Front	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53801-06140	Fender Sub-Assy, Front Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53801-33180	Fender Sub-Assy, Front Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53802-06150	Fender Sub-Assy, Front Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53802-33180	Fender Sub-Assy, Front Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53805-33030	Shield Sub-Assy, Front Fender Splash, Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53806-33020	Shield Sub-Assy, Front Fender Splash, Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53825-06050	Protector, Front Fender, Upper Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53826-06050	Protector, Front Fender, Upper Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53851-33010	Pad, Front Wheel Opening Extension, Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53852-33010	Pad, Front Wheel Opening Extension, Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53879-28040	Retainer, Front Fender Liner	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53882-06090	Seal, Front Fender, Rh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53882-16030	Pad, Rear Bumper, Center	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
53883-06080	Seal, Front Fender, Lh	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90159-60215	SCREW	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90159-60488	SCREW WWASHER	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90159-60496	SCREW WWASHER	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90179-05060	LEXNUT	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90189-06104	CLIP	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90333-25001	Plug, Hole(For Hood)	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-06192	Clip, Front Fender Liner	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-07166	Clip(For Front Fender Apron Seal)	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-08011	Clip(For Headlamp Cover Seal)	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-08011-83	Clip(For Headlamp Cover Seal)	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-08011-TH	CLIP	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-09050	Clip(For Hood Insulator)	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-09166	CLIP	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
90467-10183	Clip(For Luggage Compartment Trim Inner Cover)	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
91631-B0610	BOLTWWASHER	Hood & Front Fender ([01.2010 - ] (1001- )AHV40)
