Search › Model › AHV40

AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories

4,530 items

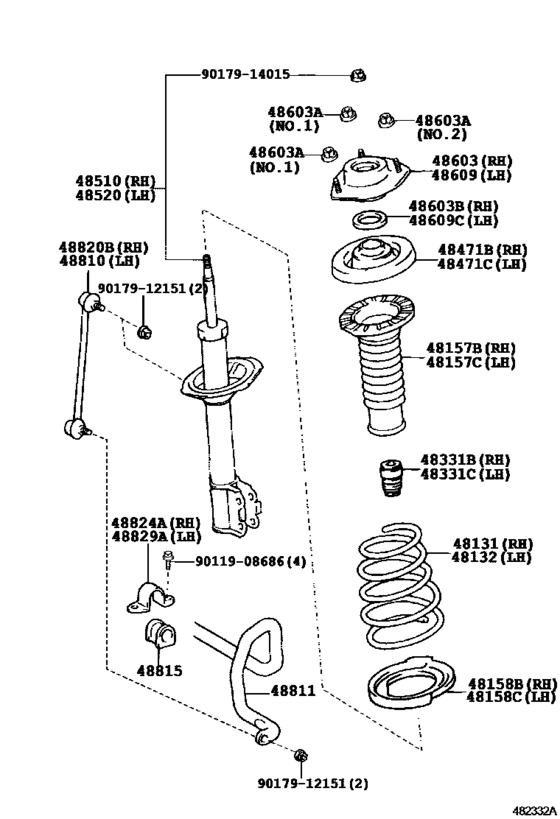

Front Spring & Shock Absorber ([06.2006 - ] (0606- )) 21

#	OEM	Part name
48131	48131-06C40	Spring, Front Coil, Rh
48157	48157-06090	Insulator, Front Coil Spring, Upper Rh
48157	48157-06050	Insulator, Front Coil Spring, Upper Rh
48158	48158-06060	Insulator, Front Coil Spring, Lower Rh
48158	48158-33030	Insulator, Front Coil Spring, Lower Rh
48331	48331-33032	Bumper, Front Spring
48471	48471-06020	Seat, Front Coil Spring, Upper Rh
48510	48510-09X30	Absorber Assy, Shock, Front Rh
48520	48520-09Q30	Absorber Assy, Shock, Front Lh
48603	48609-06150	Support Sub-Assy, Front Suspension, Rh
48603	48609-06140	Support Sub-Assy, Front Suspension, Rh
48603	90178-10005	Nut(For Front Suspension Support)
48603	90178-10017	Nut(For Front Suspension Support)
48603	90369-T0006	Bearing(For Front Suspension Support Rh)
48810	48820-33070	Link Assy, Front Stabilizer, Lh
48811	48811-33160	Bar, Stabilizer, Front
48815	48815-06170	Bush, Front Stabilizer Bar, No.1
48824	48824-06030	Bracket, Front Stabilizer, No.1 Rh
9011908686	90119-08686	BOLT
9017912151	90179-12151	Nut(For Front Stabilizer Link)
9017914015	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)

OEM	Part name	Category
48131-06C40	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48157-06050	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48157-06090	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48158-06060	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48158-33030	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48331-33032	Bumper, Front Spring	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48471-06020	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48510-09X30	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48520-09Q30	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48609-06140	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48609-06150	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48811-33160	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48815-06170	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48820-33070	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
48824-06030	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
90119-08686	BOLT	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
90178-10005	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
90178-10017	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))
90369-T0006	Bearing(For Front Suspension Support Rh)	Front Spring & Shock Absorber ([06.2006 - ] (0606- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 320
Collected: 2026-08-02
