AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories

4,530 items

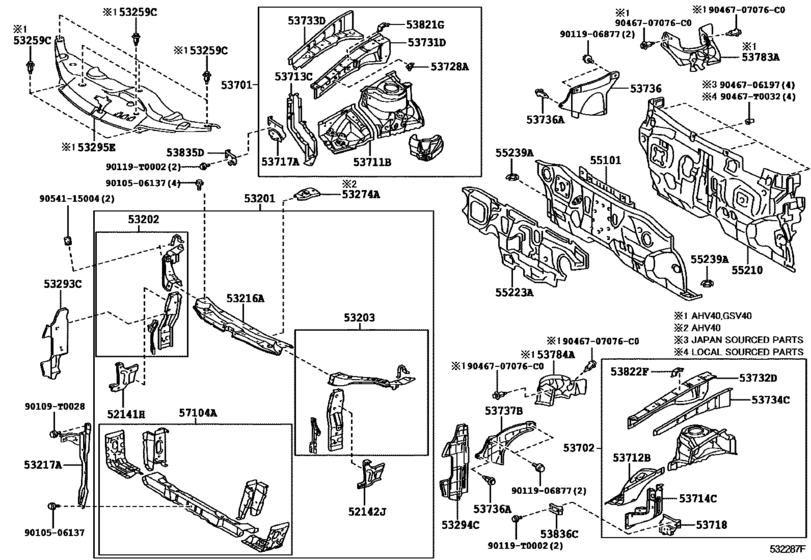

Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD) 52

#	OEM	Part name
52141	52141-06050	Arm, Front Bumper, Upper Rh
52142	52142-06040	Arm, Front Bumper, Upper Lh
53201	53201-06170	Support Sub-Assy, Radiator
53201	53201-06171	Support Sub-Assy, Radiator
53201	53201-06172	Support Sub-Assy, Radiator
53202	53202-06110	Support Sub-Assy, Radiator, Rh
53202	53202-06111	Support Sub-Assy, Radiator, Rh
53203	53203-06140	Support Sub-Assy, Radiator, Lh
53203	53203-06141	Support Sub-Assy, Radiator, Lh
53216	53216-06100	Support, Radiator, Upper
53217	53208-06040	Brace, Hood Lock Support
53259	90467-07211	Clip(For Reserve Tank Outlet Hose No.2)
53274	53274-33030	Reinforcement, Radiator Support, Lh
53293	53293-06170	Deflector, Radiator Side, Rh
53294	53294-06160	Deflector, Radiator Side, Lh
53295	53295-06060	Seal, Cool Air Intake Duct
53701	53701-06130	Apron Sub-Assy, Front Fender, Rh
53702	53702-06120	Apron Sub-Assy, Front Fender, Lh
53711	53711-06080	Apron, Front Fender, Front Rh
53712	53712-06050	Apron, Front Fender, Front Lh
53713	53713-06060	Extension, Front Fender Apron, Front Rh
53714	53714-06060	Extension, Front Fender Apron, Front Lh
53717	53717-06050	Plate, Fender Apron
53718	53718-06050	Plate, Fender Apron, Lh
53728	53729-06030	Bracket, Fender Apron, Rh
53731	53731-06100	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-06090	Member, Front Apron To Cowl Side, Upper Lh
53733	53733-06060	Member, Front Apron To Cowl Side, Lower Front Rh
53734	53734-06060	Member, Front Apron To Cowl Side, Lower Front Lh
53736	53736-06090	Seal, Front Fender Apron, Rh
53736	90467-08180	Clip(For Front Bumper Retainer)
53737	53737-06120	Seal, Front Fender Apron, Lh
53783	53783-06060	Insulator, Apron Front Fender, Rh
53784	53784-06070	Insulator, Apron Front Fender, Lh
53821	53821-06030	Bracket, Front Fender, Rear Rh
53822	53822-06030	Bracket, Front Fender, Rear Lh
53835	53835-06050	Bracket, Front Side Panel, Rh
53836	53836-06050	Bracket, Front Side Panel, Lh
55101	55101-06410	Panel Sub-Assy, Dash
55210	55210-06140	Insulator Assy, Dash Panel
55223	55223-06260	Insulator, Dash Panel, Outer
55239	55239-33020	Plate, Dash Panel Insulator, No.3
57104	57104-06030	Member Sub-Assy, Front Cross
57104	57104-06031	Member Sub-Assy, Front Cross
90109	90109-T0028	BOLT
90119	90119-T0002	New Genuine Part
90467	90467-T0032	Clip
9010506137	90105-06137	BOLT, WASHER BASED H
9011906877	90119-06877	BOLT WWASHER
9046706197	90467-06197	Clip
9046707076	90467-07076-C0	Clip, Radiator Grille
9054115004	90541-15004	Cushion, Hood Bumper

OEM	Part name	Category
52141-06050	Arm, Front Bumper, Upper Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
52142-06040	Arm, Front Bumper, Upper Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53201-06170	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53201-06171	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53201-06172	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53202-06110	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53202-06111	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53203-06140	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53203-06141	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53208-06040	Brace, Hood Lock Support	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53216-06100	Support, Radiator, Upper	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53274-33030	Reinforcement, Radiator Support, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53293-06170	Deflector, Radiator Side, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53294-06160	Deflector, Radiator Side, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53295-06060	Seal, Cool Air Intake Duct	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53701-06130	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53702-06120	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53711-06080	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53712-06050	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53713-06060	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53714-06060	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53717-06050	Plate, Fender Apron	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53718-06050	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53729-06030	Bracket, Fender Apron, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53731-06100	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53732-06090	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53733-06060	Member, Front Apron To Cowl Side, Lower Front Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53734-06060	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53736-06090	Seal, Front Fender Apron, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53737-06120	Seal, Front Fender Apron, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53783-06060	Insulator, Apron Front Fender, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53784-06070	Insulator, Apron Front Fender, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53821-06030	Bracket, Front Fender, Rear Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53822-06030	Bracket, Front Fender, Rear Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53835-06050	Bracket, Front Side Panel, Rh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
53836-06050	Bracket, Front Side Panel, Lh	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
55101-06410	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
55210-06140	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
55223-06260	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
55239-33020	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
57104-06030	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
57104-06031	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90105-06137	BOLT, WASHER BASED H	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90109-T0028	BOLT	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90119-06877	BOLT WWASHER	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90119-T0002	New Genuine Part	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90467-06197	Clip	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90467-07076-C0	Clip, Radiator Grille	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90467-07211	Clip(For Reserve Tank Outlet Hose No.2)	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90467-08180	Clip(For Front Bumper Retainer)	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90467-T0032	Clip	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
90541-15004	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([08.2006 - ] (0608- )RHD)
