Search › Model › AHV40

AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories

4,530 items

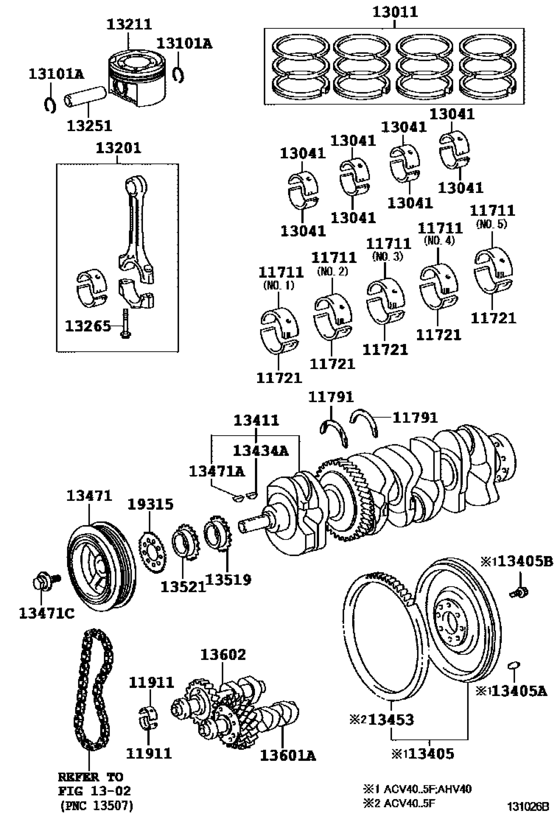

Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#) 53

#	OEM	Part name
11711	11711-28021-01	Bearing, Crankshaft
11711	11711-28021-02	Bearing, Crankshaft
11711	11711-28021-03	Bearing, Crankshaft
11711	11711-28021-04	Bearing, Crankshaft
11711	11731-28020-01	Bearing, Crankshaft
11711	11731-28020-02	Bearing, Crankshaft
11711	11731-28020-03	Bearing, Crankshaft
11711	11731-28020-04	Bearing, Crankshaft
11721	11721-28021-01	Bearing, Crankshaft, No.2
11721	11721-28021-02	Bearing, Crankshaft, No.2
11721	11721-28021-03	Bearing, Crankshaft, No.2
11721	11721-28021-04	Bearing, Crankshaft, No.2
11791	11791-28020	Washer, Crankshaft Thrust, Upper
11911	11911-28011-01	Bearing, Balanceshaft, No.1
11911	11911-28011-02	Bearing, Balanceshaft, No.1
11911	11911-28011-03	Bearing, Balanceshaft, No.1
13011	13011-28161	Ring Set, Piston
13041	13281-28011-01	Bearing, Connecting Rod
13041	13281-28011-02	Bearing, Connecting Rod
13041	13281-28011-03	Bearing, Connecting Rod
13101	90520-22025	Ring, Hole Snap(For Piston Pin)
13201	13201-09791-A0	Rod Sub-Assy, Connecting
13201	13201-29686-A0	Rod Sub-Assy, Connecting
13201	13201-09791-B0	Rod Sub-Assy, Connecting
13201	13201-29686-B0	Rod Sub-Assy, Connecting
13201	13201-09791-C0	Rod Sub-Assy, Connecting
13201	13201-29686-C0	Rod Sub-Assy, Connecting
13211	13211-28120-A0	Piston
13211	13211-28121-A0	Piston
13211	13211-28120-B0	Piston
13211	13211-28121-B0	Piston
13211	13211-28120-C0	Piston
13211	13211-28121-C0	Piston
13251	13251-28020-A0	Pin, Piston
13251	13251-28020-B0	Pin, Piston
13251	13251-28020-C0	Pin, Piston
13265	13265-28010	Bolt, Connecting Rod
13265	13265-28020	BOLT CONNECTING ROD
13405	13405-28050	Flywheel Sub-Assy
13405	90250-08054	Pin, Straight
13405	90105-12184	Bolt, Flywheel Setting
13405	90105-12384	Bolt, Flywheel Setting
13411	13401-0H010	Crankshaft
13411	13401-28010	Crankshaft
13434	95161-30416	Pin, Straight(For Crankshaft)
13471	13470-28040	Pulley, Crankshaft
13471	90119-14106	Bolt(For Crankshaft Pulley Set)
13519	13519-28010	Gear, Oil Pump Drive
13521	13521-28030	Gear Or Sprocket, Crankshaft Timing
13601	13601-28020	Balanceshaft Sub-Assy, No.1
13601	13601-28021	Balanceshaft Sub-Assy, No.1
13602	13602-28020	Balanceshaft Sub-Assy, No.2
19315	19315-28010	Plate, Crank Angle Sensor, No.1

OEM	Part name	Category
11711-28021-01	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11711-28021-02	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11711-28021-03	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11711-28021-04	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11721-28021-01	Bearing, Crankshaft, No.2	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11721-28021-02	Bearing, Crankshaft, No.2	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11721-28021-03	Bearing, Crankshaft, No.2	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11721-28021-04	Bearing, Crankshaft, No.2	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11731-28020-01	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11731-28020-02	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11731-28020-03	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11731-28020-04	Bearing, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11791-28020	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11911-28011-01	Bearing, Balanceshaft, No.1	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11911-28011-02	Bearing, Balanceshaft, No.1	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
11911-28011-03	Bearing, Balanceshaft, No.1	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13011-28161	Ring Set, Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13201-09791-A0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13201-09791-B0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13201-09791-C0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13201-29686-A0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13201-29686-B0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13201-29686-C0	Rod Sub-Assy, Connecting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13211-28120-A0	Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13211-28120-B0	Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13211-28120-C0	Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13211-28121-A0	Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13211-28121-B0	Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13211-28121-C0	Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13251-28020-A0	Pin, Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13251-28020-B0	Pin, Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13251-28020-C0	Pin, Piston	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13265-28010	Bolt, Connecting Rod	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13265-28020	BOLT CONNECTING ROD	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13281-28011-01	Bearing, Connecting Rod	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13281-28011-02	Bearing, Connecting Rod	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13281-28011-03	Bearing, Connecting Rod	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13401-0H010	Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13401-28010	Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13405-28050	Flywheel Sub-Assy	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13470-28040	Pulley, Crankshaft	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13519-28010	Gear, Oil Pump Drive	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13521-28030	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13601-28020	Balanceshaft Sub-Assy, No.1	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13601-28021	Balanceshaft Sub-Assy, No.1	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
13602-28020	Balanceshaft Sub-Assy, No.2	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
19315-28010	Plate, Crank Angle Sensor, No.1	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
90105-12184	Bolt, Flywheel Setting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
90105-12384	Bolt, Flywheel Setting	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
90119-14106	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
90250-08054	Pin, Straight	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
90520-22025	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
95161-30416	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([06.2006 - ] (0606- )2AZ#)
