Search › Model › AHV40

AHV40

Toyota CAMRY-VISTA-AURION · 2006 · 4,530 parts · 320 categories

4,530 items

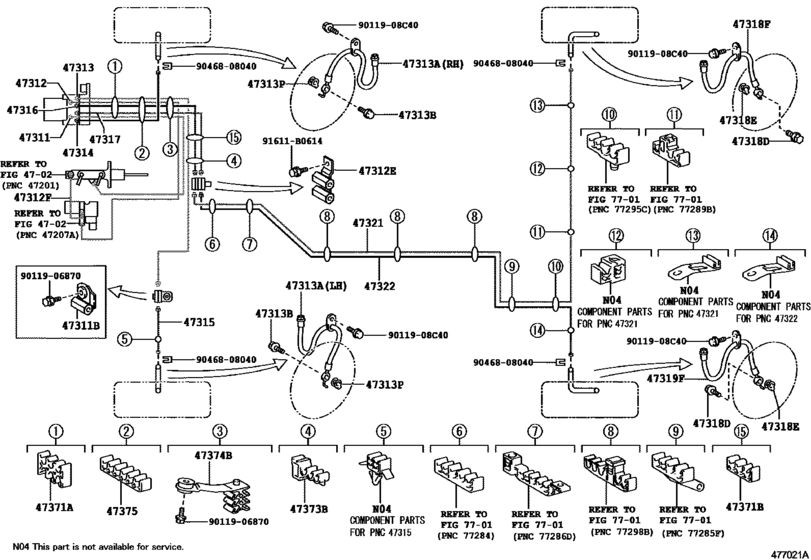

Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40) 44

#	OEM	Part name
31478	31478-30010	Bleeder Plug Cap
44510	44050-30300	Actuator Assy, Brake
44510	44050-30660	Actuator Assy, Brake
44545	44545-63010	Bolt, Union(For Brake Actuator)
44546	44546-58010	Cushion, Brake Actuator Bolt
44546	44546-58020	Cushion, Brake Actuator Bolt
44571	44571-33110	Hose, Brake Actuator
44577	44781-33010	Bracket, Brake Actuator Mount
44590	44590-33120	Bracket Assy, Brake Actuator
44591	44590-33130	Bracket, Brake Actuator, No.1
47311	47311-06370	Tube, Front Brake, No.1
47311	90412-10280	Way, No.2(For Front Brake Tube)
47312	47312-06280	Tube, Front Brake, No.2
47312	90412-10246	Way, No.2(For Front Brake Tube)
47312	47312-06300	Tube, Front Brake, Frame, No.2
47313	47313-06270	Tube, Front Brake, No.3
47313	90947-T2029	Hose, Flexible, No.1(For Front)
47313	90947-T2030	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	47389-50021	Gasket(For Front Flexible Hose)
47314	47314-06260	Tube, Front Brake, No.4
47315	47315-06250	Tube, Front Brake, No.5
47316	47316-06320	Tube, Front Brake, No.6
47317	47317-06310	Tube, Front Brake, No.7
47318	90080-94141	Hose, Flexible(For Rear Rh)
47319	90080-94144	Hose, Flexible(For Rear Lh)
47321	47321-06130	Tube, Rear Brake, No.1
47322	47322-06130	Tube, Rear Brake, No.2
47371	90464-00880	Clamp, Brake Tube, No.1
47371	90464-00857	Clamp, Brake Tube, No.1
47373	90949-01D08	Clamp, Brake Tube, No.1
47374	90949-04035	Clamp, Brake Tube, No.4
47375	90949-01C85	Clamp, Brake Tube, No.2
47375	90080-46366	Clamp, Brake Tube, No.2
47547	47547-22020	Plug, Bleeder(For Rear Disc Brake)
47997	47997-48010	Label, Brake Booster Accumlator Caution, No.1
90178	90178-T0003	New Genuine Part
90182	90182-T0018	New Genuine Part
90466	90466-T0009	Clip, No.1(For Oil Cooler Hose)
91611	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9011908	90119-08C40	New Genuine Part
9011908	90119-08C61	BOLT WWASHER
9011906870	90119-06870	BOLT WWASHER
9046808040	90468-08040	CLIP

OEM	Part name	Category
31478-30010	Bleeder Plug Cap	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44050-30300	Actuator Assy, Brake	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44050-30660	Actuator Assy, Brake	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44546-58010	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44546-58020	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44571-33110	Hose, Brake Actuator	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44590-33120	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44590-33130	Bracket, Brake Actuator, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
44781-33010	Bracket, Brake Actuator Mount	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47311-06370	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47312-06280	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47312-06300	Tube, Front Brake, Frame, No.2	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47313-06270	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47314-06260	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47315-06250	Tube, Front Brake, No.5	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47316-06320	Tube, Front Brake, No.6	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47317-06310	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47321-06130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47322-06130	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47547-22020	Plug, Bleeder(For Rear Disc Brake)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
47997-48010	Label, Brake Booster Accumlator Caution, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90080-46366	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90080-94141	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90080-94144	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90119-06870	BOLT WWASHER	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90119-08C40	New Genuine Part	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90119-08C61	BOLT WWASHER	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90178-T0003	New Genuine Part	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90182-T0018	New Genuine Part	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90412-10246	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90412-10280	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90464-00880	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90466-T0009	Clip, No.1(For Oil Cooler Hose)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90468-08040	CLIP	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90947-T2029	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90947-T2030	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90949-01C85	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90949-01D08	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
90949-04035	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([07.2009 - ] (0907- )AHV40)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 320
Collected: 2026-08-02
