AHV40

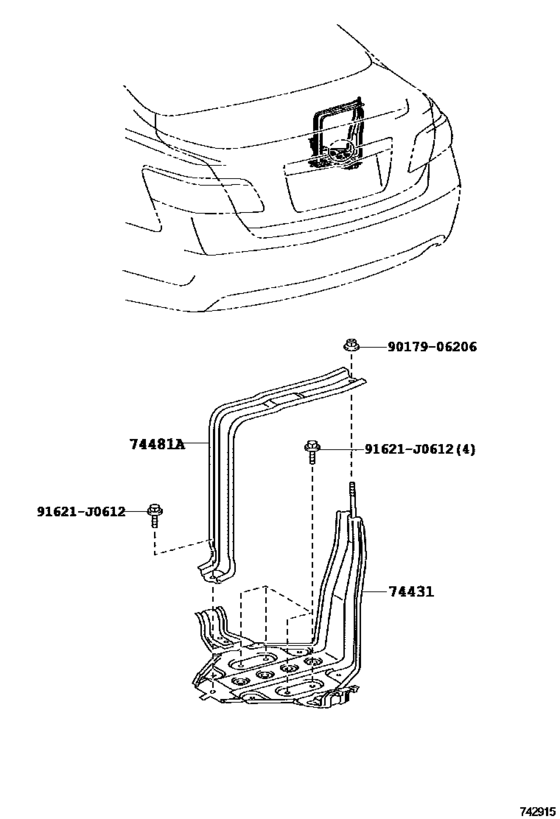

Battery Carrier ([01.2010 - ] (1001- )AHV40) 4
| # | OEM | Part name |
|---|---|---|
| 74431 | 74440-33010 | Tray, Battery |
| 74481 | 74481-33080 | Clamp, Battery |
| 91621 | 91621-J0612 | BOLT W-WASHER |
| 9017906206 | 90179-06206 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 74440-33010 | Tray, Battery | Battery Carrier ([01.2010 - ] (1001- )AHV40) |
| 74481-33080 | Clamp, Battery | Battery Carrier ([01.2010 - ] (1001- )AHV40) |
| 90179-06206 | Nut | Battery Carrier ([01.2010 - ] (1001- )AHV40) |
| 91621-J0612 | BOLT W-WASHER | Battery Carrier ([01.2010 - ] (1001- )AHV40) |
