AHV40

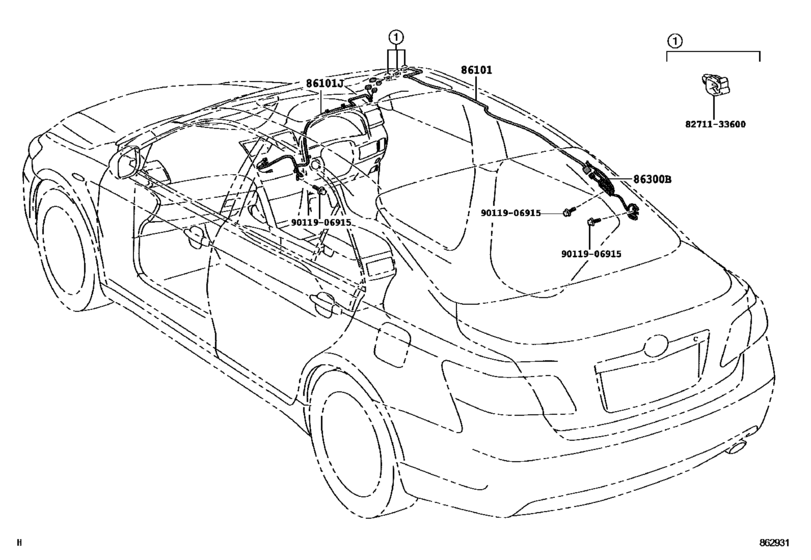

Antenna ([08.2006 - ] (0608- )RHD) 5
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-06350 | Cord Sub-Assy, Antenna |
| 86101 | 86101-06360 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-06141 | Antenna Assy, Amplifier, No.1 |
| 8271133600 | 82711-33600 | Wire, Fuse To Fuse(for Combustion Heater) |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 82711-33600 | Wire, Fuse To Fuse(for Combustion Heater) | Antenna ([08.2006 - ] (0608- )RHD) |
| 86101-06350 | Cord Sub-Assy, Antenna | Antenna ([08.2006 - ] (0608- )RHD) |
| 86101-06360 | Cord Sub-Assy, Antenna, No.2 | Antenna ([08.2006 - ] (0608- )RHD) |
| 86300-06141 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2006 - ] (0608- )RHD) |
| 90119-06915 | BOLT W-WASHER | Antenna ([08.2006 - ] (0608- )RHD) |
