Search › Model › AHR20
AHR20

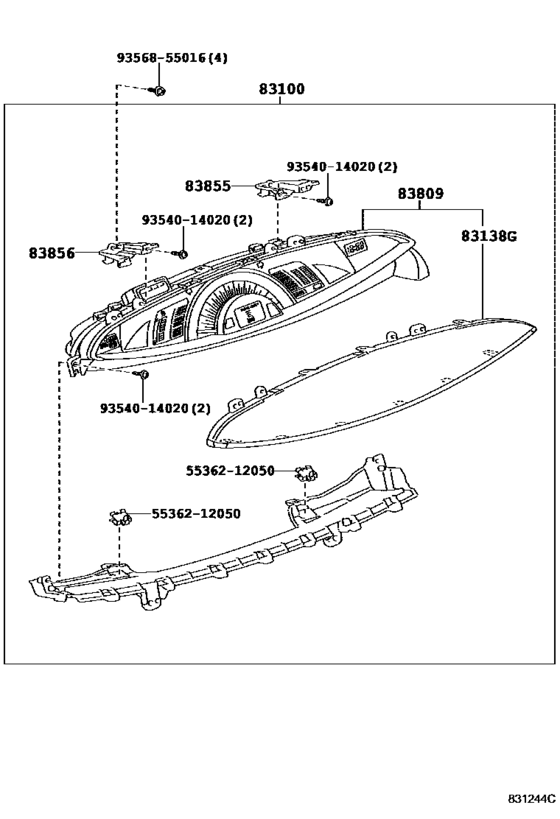

Meter ([06.2006 - ] (0606- )) 8
| # | OEM | Part name |
|---|---|---|
| 83100 | 83800-28N00 | Meter Assy, Combination |
| 83138 | 83852-28M90 | Glass, Combination Meter |
| 83809 | 83809-28550 | Meter Sub-Assy, Combination |
| 83855 | 83855-28B80 | Bracket, Combination Meter, No.1 |
| 83856 | 83856-28B80 | Bracket, Combination Meter, No.2 |
| 5536212050 | 55362-12050 | Bracket, Meter Mounting |
| 9354014020 | 93540-14020 | Screw |
| 9356855016 | 93568-55016 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 55362-12050 | Bracket, Meter Mounting | Meter ([06.2006 - ] (0606- )) |
| 83800-28N00 | Meter Assy, Combination | Meter ([06.2006 - ] (0606- )) |
| 83809-28550 | Meter Sub-Assy, Combination | Meter ([06.2006 - ] (0606- )) |
| 83852-28M90 | Glass, Combination Meter | Meter ([06.2006 - ] (0606- )) |
| 83855-28B80 | Bracket, Combination Meter, No.1 | Meter ([06.2006 - ] (0606- )) |
| 83856-28B80 | Bracket, Combination Meter, No.2 | Meter ([06.2006 - ] (0606- )) |
| 93540-14020 | Screw | Meter ([06.2006 - ] (0606- )) |
| 93568-55016 | Screw | Meter ([06.2006 - ] (0606- )) |
