AHR20

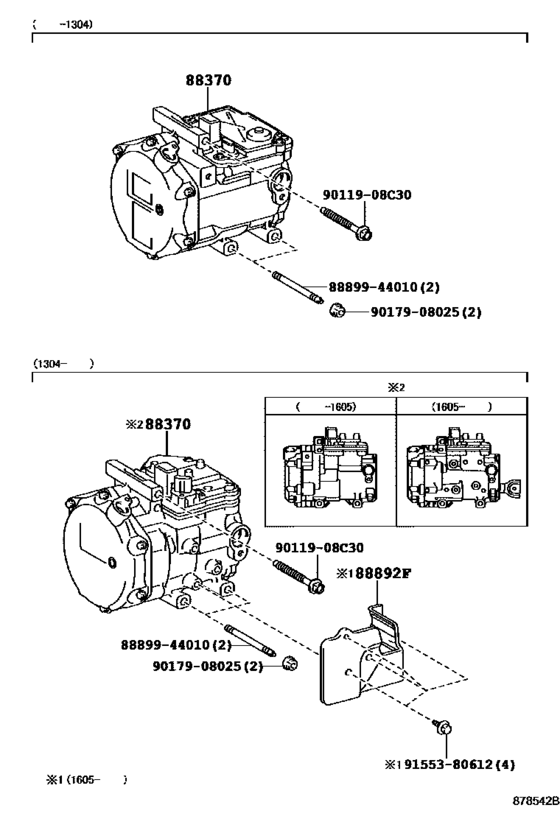

Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) 6
| # | OEM | Part name |
|---|---|---|
| 88370 | 88370-28050 | Compressor Assy, W/motor |
| 88892 | 87268-28170 | Cover, Cooler Compressor |
| 9011908 | 90119-08C30 | New Genuine Part |
| 8889944010 | 88899-44010 | Bolt, Stud(For Fc Cooling Water Pump) |
| 9017908025 | 90179-08025 | Nut, Cap(For Cylinder Head Cover) |
| 9155380612 | 91553-80612 | BOLT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 87268-28170 | Cover, Cooler Compressor | Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) |
| 88370-28050 | Compressor Assy, W/motor | Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) |
| 88899-44010 | Bolt, Stud(For Fc Cooling Water Pump) | Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) |
| 90119-08C30 | New Genuine Part | Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) |
| 90179-08025 | Nut, Cap(For Cylinder Head Cover) | Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) |
| 91553-80612 | BOLT FLANGE | Heating & Air Conditioning - Compressor ([06.2006 - ] (0606- )) |
