AHR20

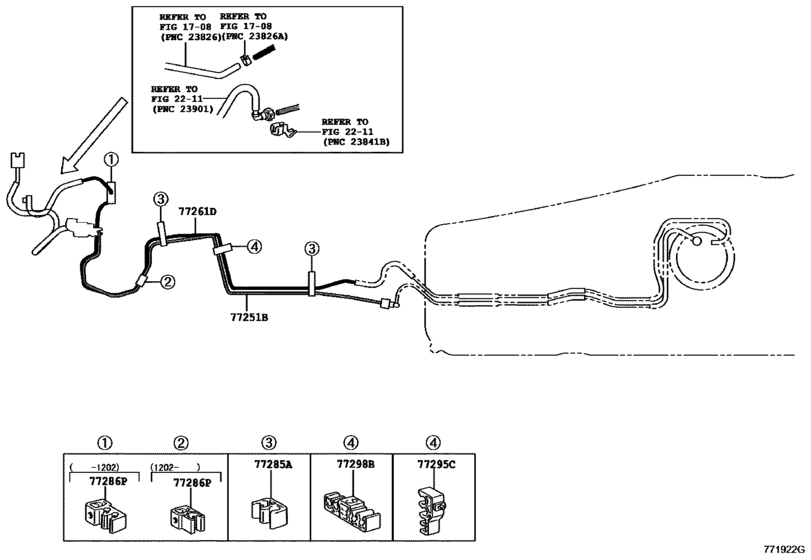

Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) 6
| # | OEM | Part name |
|---|---|---|
| 77251 | 77251-28240 | Tube, Fuel Main |
| 77261 | 77261-28091 | Tube, Fuel Tank To Canister |
| 77285 | 77285-42110 | Support, Fuel Return And Main Tube |
| 77286 | 77285-52010 | Clamp, Fuel Tube, No.1 |
| 77295 | 77295-33020 | Grommet, Fuel Tube |
| 77298 | 77298-52070 | Clamp, Fuel Tube, No.3 |
| OEM | Part name | Category |
|---|---|---|
| 77251-28240 | Tube, Fuel Main | Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) |
| 77261-28091 | Tube, Fuel Tank To Canister | Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) |
| 77285-42110 | Support, Fuel Return And Main Tube | Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) |
| 77285-52010 | Clamp, Fuel Tube, No.1 | Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) |
| 77295-33020 | Grommet, Fuel Tube | Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) |
| 77298-52070 | Clamp, Fuel Tube, No.3 | Fuel Tank & Tube ([06.2006 - ] ﾌｭｰｴﾙﾁｭｰﾌﾞ (0606- )) |
