AHR20

Toyota ESTIMA-EMINA-LUCIDA · 2006 · 3,631 parts · 199 categories

3,631 items

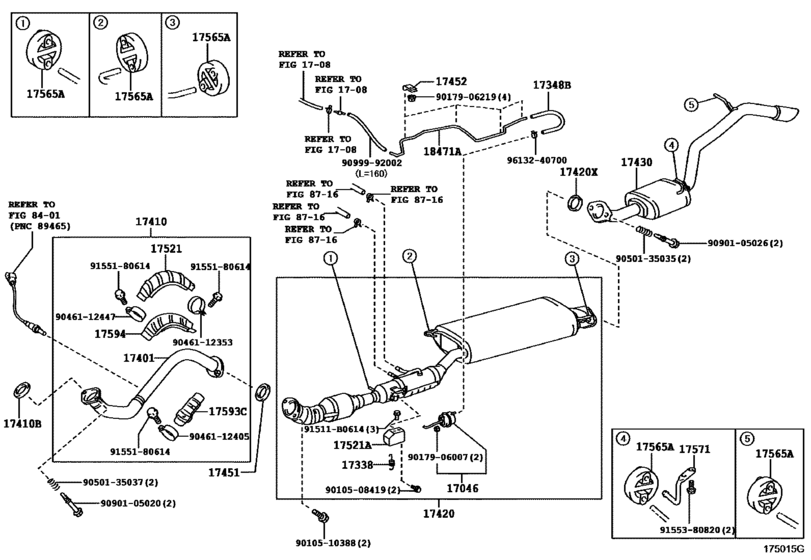

Exhaust Pipe ([06.2006 - ] (0606- )) 38

#	OEM	Part name
17046	17046-28010	Actuator Sub-Assy, Exhaust Pipe Gas Control
17338	17338-28021	Spring, Air Control
17348	17348-28010	Hose, Air, No.8(For Exhaust Pipe)
17401	17401-28111	Pipe Sub-Assy, Exhaust, Front
17410	17410-28601	Pipe Assy, Exhaust, Front
17410	17451-28040	Gasket, Exhaust Pipe
17410	17451-28041	Gasket, Exhaust Pipe
17420	17420-28B30	Pipe Assy, Exhaust, Center
17420	17451-28022	Gasket, Exhaust Pipe
17430	17430-28790	Pipe Assy, Exhaust, Tail
17430	17430-28791	Pipe Assy, Exhaust, Tail
17451	90917-06078	Gasket, Exhaust Pipe
17451	90917-A6003	Gasket, Exhaust Pipe
17452	90461-10763	Clamp, Exhaust Pipe
17521	17522-28040	Protector, Exhaust Pipe, Front No.1
17521	17521-28120	Protector, Exhaust Pipe, Upper No.1
17565	17565-22040	Support, Exhaust Pipe, No.1
17571	17571-28100	Bracket, Exhaust Pipe Support, No.1
17593	17593-28040	Protector, Exhaust Pipe, Lower No.1
17594	17594-28020	Protector, Exhaust Pipe, No.2
18471	18471-28010	Pipe, Converter Air Suction
91511	91511-B0614	BOLT, FLANGE
9010508419	90105-08419	New Genuine Part
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9017906219	90179-06219	Nut
9017906219	90182-A0005	Nut
9046112353	90461-12353	Clamp, Exhaust Pipe
9046112405	90461-12405	New Genuine Part
9046112447	90461-12447	Clamp, Exhaust Pipe
9050135035	90501-35035	Spring, Exhaust Pipe
9050135037	90501-35037	Spring, Exhaust Pipe
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9099992002	90999-92002	Air Hose (300 mm)
9155180614	91551-80614	Bolt(For Vacuum Transmitting Pipe)
9155380820	91553-80820	BOLTFLANGE
9613240700	96132-40700	Clip(For Fuel Vapor Feed Hose)

OEM	Part name	Category
17046-28010	Actuator Sub-Assy, Exhaust Pipe Gas Control	Exhaust Pipe ([06.2006 - ] (0606- ))
17338-28021	Spring, Air Control	Exhaust Pipe ([06.2006 - ] (0606- ))
17348-28010	Hose, Air, No.8(For Exhaust Pipe)	Exhaust Pipe ([06.2006 - ] (0606- ))
17401-28111	Pipe Sub-Assy, Exhaust, Front	Exhaust Pipe ([06.2006 - ] (0606- ))
17410-28601	Pipe Assy, Exhaust, Front	Exhaust Pipe ([06.2006 - ] (0606- ))
17420-28B30	Pipe Assy, Exhaust, Center	Exhaust Pipe ([06.2006 - ] (0606- ))
17430-28790	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([06.2006 - ] (0606- ))
17430-28791	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([06.2006 - ] (0606- ))
17451-28022	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
17451-28040	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
17451-28041	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
17521-28120	Protector, Exhaust Pipe, Upper No.1	Exhaust Pipe ([06.2006 - ] (0606- ))
17522-28040	Protector, Exhaust Pipe, Front No.1	Exhaust Pipe ([06.2006 - ] (0606- ))
17565-22040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([06.2006 - ] (0606- ))
17571-28100	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([06.2006 - ] (0606- ))
17593-28040	Protector, Exhaust Pipe, Lower No.1	Exhaust Pipe ([06.2006 - ] (0606- ))
17594-28020	Protector, Exhaust Pipe, No.2	Exhaust Pipe ([06.2006 - ] (0606- ))
18471-28010	Pipe, Converter Air Suction	Exhaust Pipe ([06.2006 - ] (0606- ))
90105-08419	New Genuine Part	Exhaust Pipe ([06.2006 - ] (0606- ))
90105-10388	BOLT	Exhaust Pipe ([06.2006 - ] (0606- ))
90179-06007	Nut	Exhaust Pipe ([06.2006 - ] (0606- ))
90179-06219	Nut	Exhaust Pipe ([06.2006 - ] (0606- ))
90182-A0005	Nut	Exhaust Pipe ([06.2006 - ] (0606- ))
90461-10763	Clamp, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90461-12353	Clamp, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90461-12405	New Genuine Part	Exhaust Pipe ([06.2006 - ] (0606- ))
90461-12447	Clamp, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90501-35035	Spring, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90501-35037	Spring, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([06.2006 - ] (0606- ))
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([06.2006 - ] (0606- ))
90917-06078	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90917-A6003	Gasket, Exhaust Pipe	Exhaust Pipe ([06.2006 - ] (0606- ))
90999-92002	Air Hose (300 mm)	Exhaust Pipe ([06.2006 - ] (0606- ))
91511-B0614	BOLT, FLANGE	Exhaust Pipe ([06.2006 - ] (0606- ))
91551-80614	Bolt(For Vacuum Transmitting Pipe)	Exhaust Pipe ([06.2006 - ] (0606- ))
91553-80820	BOLTFLANGE	Exhaust Pipe ([06.2006 - ] (0606- ))
96132-40700	Clip(For Fuel Vapor Feed Hose)	Exhaust Pipe ([06.2006 - ] (0606- ))
