AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

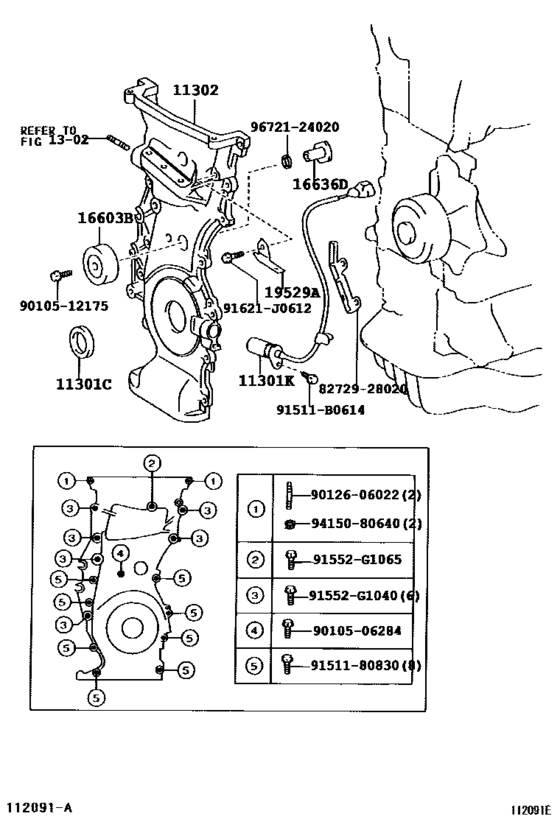

Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- )) 22

#	OEM	Part name
11301	90311-38078	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-38084	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-38088	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90919-05047	Sensor, Crank Position
11302	11321-28041	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-28042	Cover Sub-Assy, Timing Chain Or Belt
16603	16603-28010	Pulley Sub-Assy, Idler
16603	16603-28011	Pulley Sub-Assy, Idler
16636	16636-28010	Shaft, Idler Pulley
19529	19529-28010	Clamp
91511	91511-B0614	BOLT, FLANGE
91552	91552-G1040	BOLT FLANGE
91552	91552-G1065	BOLT FLANGE
91621	91621-J0612	BOLT W-WASHER
8272928020	82729-28020	New Genuine Part
9010506284	90105-06284	New Genuine Part
9010512175	90105-12175	Bolt, Hexagon(For Front Disc Brake Caliper)
9012606022	90126-06022	STUD HEX LOBULAR
9151180830	91511-80830	Bolt(For Alternator)
9415080640	94150-80640	NUT FLANGE
9672124020	96721-24020	O-Ring

OEM	Part name	Category
11321-28041	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
11321-28042	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
16603-28010	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
16603-28011	Pulley Sub-Assy, Idler	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
16636-28010	Shaft, Idler Pulley	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
19529-28010	Clamp	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
82729-28020	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90105-06284	New Genuine Part	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90105-12175	Bolt, Hexagon(For Front Disc Brake Caliper)	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90126-06022	STUD HEX LOBULAR	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90311-38078	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90311-38084	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90311-38088	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90311-38089	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
90919-05047	Sensor, Crank Position	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
91511-80830	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
91511-B0614	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
91552-G1040	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
91552-G1065	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
91621-J0612	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
94150-80640	NUT FLANGE	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
96721-24020	O-Ring	Timing Gear Cover & Rear End Plate ([05.2001 - ] (0105- ))
