Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

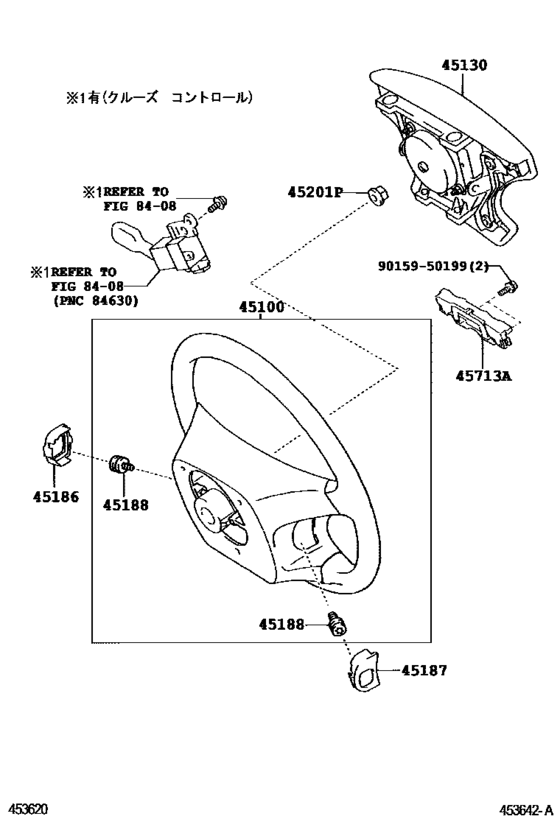

Steering Wheel ([08.2003 - ] 4-SPOKE (0308- )) 28

#	OEM	Part name
45100	45100-28290-B0	Wheel Assy, Steering
45100	45100-28290-B1	Wheel Assy, Steering
45100	45100-28300-B0	Wheel Assy, Steering
45100	45100-28300-B2	Wheel Assy, Steering
45100	45100-28300-B1	Wheel Assy, Steering
45100	45100-28300-B3	Wheel Assy, Steering
45100	45100-28330-B0	Wheel Assy, Steering
45100	45100-28350-B0	Wheel Assy, Steering
45100	45100-28360-E0	Wheel Assy, Steering
45100	45100-28360-E1	Wheel Assy, Steering
45100	45100-28360-B0	Wheel Assy, Steering
45130	45130-28440-B0	Button Assy, Horn
45130	45130-28440-B2	Button Assy, Horn
45130	45130-28440-B1	Button Assy, Horn
45130	45130-28490-B0	Button Assy, Horn
45130	45130-28490-E0	Button Assy, Horn
45186	45186-33050-B0	Cover, Steering Wheel, Lower No.2
45186	45186-33050-C0	Cover, Steering Wheel, Lower No.2
45186	45186-33050-B1	Cover, Steering Wheel, Lower No.2
45186	45186-58010-B0	Cover, Steering Wheel, Lower No.2
45186	45186-58020-E1	Cover, Steering Wheel, Lower No.2
45186	45186-58020-B0	Cover, Steering Wheel, Lower No.2
45187	45187-58010-B0	Cover, Steering Wheel, Lower No.3
45187	45187-58010-E1	Cover, Steering Wheel, Lower No.3
45188	45188-60010	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set
45713	45713-60030	Damper, Steering Shake
9015950199	90159-50199	SCREW

OEM	Part name	Category
45100-28290-B0	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28290-B1	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28300-B0	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28300-B1	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28300-B2	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28300-B3	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28330-B0	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28350-B0	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28360-B0	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28360-E0	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45100-28360-E1	Wheel Assy, Steering	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45130-28440-B0	Button Assy, Horn	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45130-28440-B1	Button Assy, Horn	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45130-28440-B2	Button Assy, Horn	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45130-28490-B0	Button Assy, Horn	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45130-28490-E0	Button Assy, Horn	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45186-33050-B0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45186-33050-B1	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45186-33050-C0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45186-58010-B0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45186-58020-B0	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45186-58020-E1	Cover, Steering Wheel, Lower No.2	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45187-58010-B0	Cover, Steering Wheel, Lower No.3	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45187-58010-E1	Cover, Steering Wheel, Lower No.3	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45188-60010	Screw, Steering Wheel Pad Attaching	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
45713-60030	Damper, Steering Shake	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
90159-50199	SCREW	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([08.2003 - ] 4-SPOKE (0308- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 232
Collected: 2026-08-03
