AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

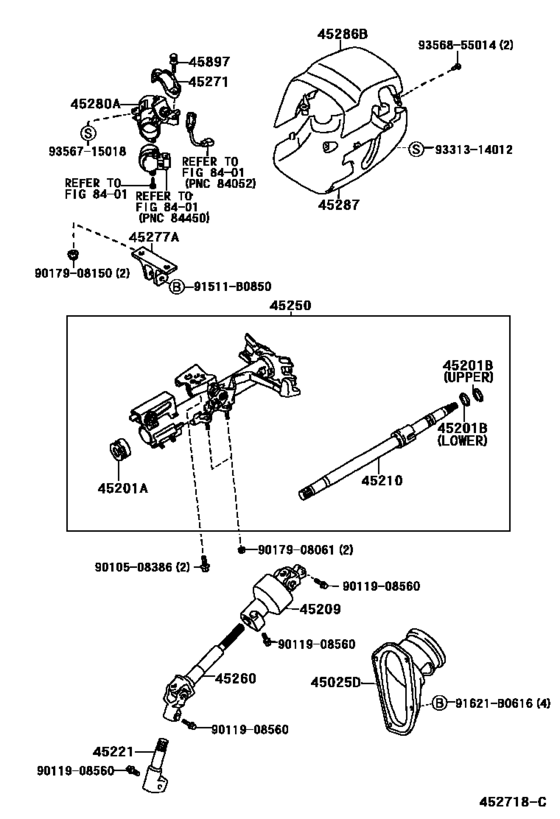

Steering Column & Shaft ([05.2001 - ] (0105- )) 36

#	OEM	Part name
45025	45025-28040	Cover Sub-Assy, Steering Column Hole, No.1
45201	45274-28010	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45209	45209-28010	Yoke Sub-Assy, Steering Sliding
45209	45209-28040	Yoke Sub-Assy, Steering Sliding
45210	45210-27110	Shaft Assy, Steering Main
45221	45221-28070	Shaft, Steering Intermediate
45250	45250-28481	Column Assy, Steering
45260	45260-28060	Shaft Assy, Steering Intermediate, No.2
45271	45271-16020	Clamp, Steering Column, Upper
45277	45277-28030	Support, Tilt Steering
45277	45277-28050	Support, Tilt Steering
45280	45280-28280	Bracket Assy, Steering Column, Upper
45286	45286-28350-B0	Cover, Steering Column, Upr
45286	45286-28360-B2	Cover, Steering Column, Upr
45286	45286-28350-B1	Cover, Steering Column, Upr
45286	45286-28350-B2	Cover, Steering Column, Upr
45286	45286-28350-E1	Cover, Steering Column, Upr
45287	45287-28390-B0	Cover, Steering Column, Lwr
45287	45287-28391-B2	Cover, Steering Column, Lwr
45287	45287-28390-B1	Cover, Steering Column, Lwr
45287	45287-28391-B0	Cover, Steering Column, Lwr
45287	45287-28391-B1	Cover, Steering Column, Lwr
45287	45287-28391-E1	Cover, Steering Column, Lwr
45897	45897-12020	Bolt, Steering Lock Set
91511	91511-B0850	Bolt
91621	91621-B0616	Bolt
9010508386	90105-08386	New Genuine Part
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9017908061	90179-08061	Nut (For Connecting Rod Swivel)
9017908150	90179-08150	NUT
9331314012	93313-14012	SCREW
9356715018	93567-15018	BOLT
9356855014	93568-55014	Screw

OEM	Part name	Category
45025-28040	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([05.2001 - ] (0105- ))
45209-28010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.2001 - ] (0105- ))
45209-28040	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.2001 - ] (0105- ))
45210-27110	Shaft Assy, Steering Main	Steering Column & Shaft ([05.2001 - ] (0105- ))
45221-28070	Shaft, Steering Intermediate	Steering Column & Shaft ([05.2001 - ] (0105- ))
45250-28481	Column Assy, Steering	Steering Column & Shaft ([05.2001 - ] (0105- ))
45260-28060	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([05.2001 - ] (0105- ))
45271-16020	Clamp, Steering Column, Upper	Steering Column & Shaft ([05.2001 - ] (0105- ))
45274-28010	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([05.2001 - ] (0105- ))
45277-28030	Support, Tilt Steering	Steering Column & Shaft ([05.2001 - ] (0105- ))
45277-28050	Support, Tilt Steering	Steering Column & Shaft ([05.2001 - ] (0105- ))
45280-28280	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.2001 - ] (0105- ))
45286-28350-B0	Cover, Steering Column, Upr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45286-28350-B1	Cover, Steering Column, Upr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45286-28350-B2	Cover, Steering Column, Upr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45286-28350-E1	Cover, Steering Column, Upr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45286-28360-B2	Cover, Steering Column, Upr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45287-28390-B0	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45287-28390-B1	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45287-28391-B0	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45287-28391-B1	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45287-28391-B2	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45287-28391-E1	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.2001 - ] (0105- ))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.2001 - ] (0105- ))
90080-11555	Bolt w-washer	Steering Column & Shaft ([05.2001 - ] (0105- ))
90105-08386	New Genuine Part	Steering Column & Shaft ([05.2001 - ] (0105- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.2001 - ] (0105- ))
90179-08061	Nut (For Connecting Rod Swivel)	Steering Column & Shaft ([05.2001 - ] (0105- ))
90179-08150	NUT	Steering Column & Shaft ([05.2001 - ] (0105- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.2001 - ] (0105- ))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.2001 - ] (0105- ))
91511-B0850	Bolt	Steering Column & Shaft ([05.2001 - ] (0105- ))
91621-B0616	Bolt	Steering Column & Shaft ([05.2001 - ] (0105- ))
93313-14012	SCREW	Steering Column & Shaft ([05.2001 - ] (0105- ))
93567-15018	BOLT	Steering Column & Shaft ([05.2001 - ] (0105- ))
93568-55014	Screw	Steering Column & Shaft ([05.2001 - ] (0105- ))
