AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

← Back to categories

5,752 items

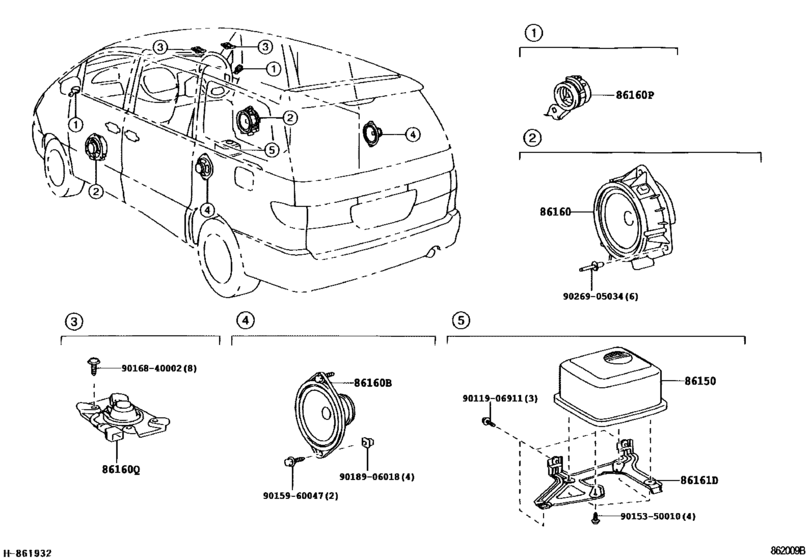

Speaker ([08.2003 - ] (0308- )) 20

#	OEM	Part name
86150	86150-21010	Speaker Assy, W/box, No.1
86160	86160-28510	Speaker Assy, Front No.1
86160	86160-28511	Speaker Assy, Front No.1
86160	86160-28520	Speaker Assy, Front No.1
86160	86160-28600	Speaker Assy, Front No.1
86160	86160-28530	Speaker Assy, Rear
86160	86160-28540	Speaker Assy, Rear
86160	86160-28610	Speaker Assy, Rear
86160	86160-28420	Speaker Assy, Front No.2
86160	86160-28500	Speaker Assy, Front No.2
86160	86160-28640	Speaker Assy, Front No.2
86160	86160-28650	Speaker Assy, Front No.2
86160	86160-28620	Speaker Assy, Roof
86161	86161-28040	Bracket, Speaker Mounting, No.1
9011906911	90119-06911	BOLT WWASHER
9015350010	90153-50010	BOLT
9015960047	90159-60047	SCREWWWASHER
9016840002	90168-40002	SCREWTAPPING
9018906018	90189-06018	GROMMET
9026905034	90269-05034	RIVET

OEM	Part name	Category
86150-21010	Speaker Assy, W/box, No.1	Speaker ([08.2003 - ] (0308- ))
86160-28420	Speaker Assy, Front No.2	Speaker ([08.2003 - ] (0308- ))
86160-28500	Speaker Assy, Front No.2	Speaker ([08.2003 - ] (0308- ))
86160-28510	Speaker Assy, Front No.1	Speaker ([08.2003 - ] (0308- ))
86160-28511	Speaker Assy, Front No.1	Speaker ([08.2003 - ] (0308- ))
86160-28520	Speaker Assy, Front No.1	Speaker ([08.2003 - ] (0308- ))
86160-28530	Speaker Assy, Rear	Speaker ([08.2003 - ] (0308- ))
86160-28540	Speaker Assy, Rear	Speaker ([08.2003 - ] (0308- ))
86160-28600	Speaker Assy, Front No.1	Speaker ([08.2003 - ] (0308- ))
86160-28610	Speaker Assy, Rear	Speaker ([08.2003 - ] (0308- ))
86160-28620	Speaker Assy, Roof	Speaker ([08.2003 - ] (0308- ))
86160-28640	Speaker Assy, Front No.2	Speaker ([08.2003 - ] (0308- ))
86160-28650	Speaker Assy, Front No.2	Speaker ([08.2003 - ] (0308- ))
86161-28040	Bracket, Speaker Mounting, No.1	Speaker ([08.2003 - ] (0308- ))
90119-06911	BOLT WWASHER	Speaker ([08.2003 - ] (0308- ))
90153-50010	BOLT	Speaker ([08.2003 - ] (0308- ))
90159-60047	SCREWWWASHER	Speaker ([08.2003 - ] (0308- ))
90168-40002	SCREWTAPPING	Speaker ([08.2003 - ] (0308- ))
90189-06018	GROMMET	Speaker ([08.2003 - ] (0308- ))
90269-05034	RIVET	Speaker ([08.2003 - ] (0308- ))
