Search › Model › AHR10
AHR10

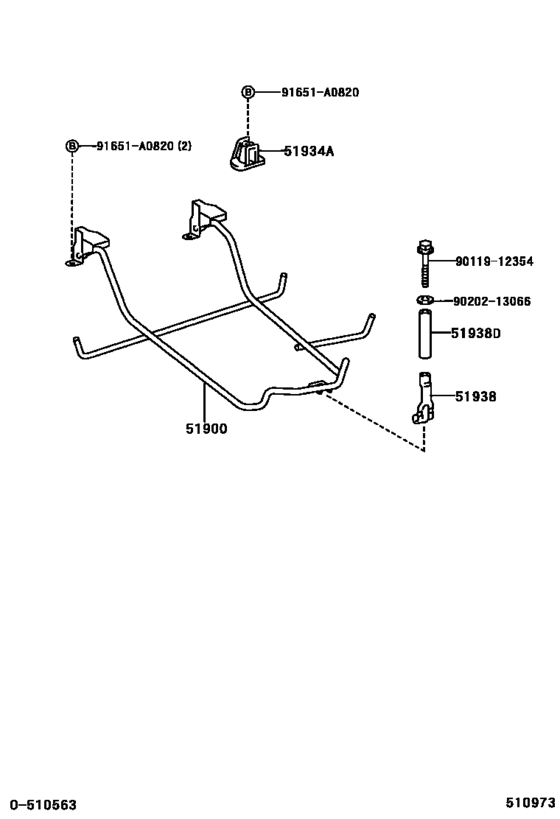

Spare Wheel Carrier ([05.2001 - ] (0105- )) 7
| # | OEM | Part name |
|---|---|---|
| 51900 | 51903-28040 | Carrier Assy, Spare Wheel |
| 51934 | 51904-28070 | Stopper, Spare Wheel, No.2 |
| 51938 | 51938-13040 | Lock, Spare Wheel Carrier |
| 51938 | 90440-17045 | Tube(For Spare Wheel Carrier Bolt) |
| 91651 | 91651-A0820 | BOLT |
| 9011912354 | 90119-12354 | Bolt, Spare Wheel |
| 9020213066 | 90202-13066 | Plate, Spare Wheel Carrier Lock |
| OEM | Part name | Category |
|---|---|---|
| 51903-28040 | Carrier Assy, Spare Wheel | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
| 51904-28070 | Stopper, Spare Wheel, No.2 | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
| 51938-13040 | Lock, Spare Wheel Carrier | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
| 90119-12354 | Bolt, Spare Wheel | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
| 90202-13066 | Plate, Spare Wheel Carrier Lock | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
| 90440-17045 | Tube(For Spare Wheel Carrier Bolt) | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
| 91651-A0820 | BOLT | Spare Wheel Carrier ([05.2001 - ] (0105- )) |
