AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

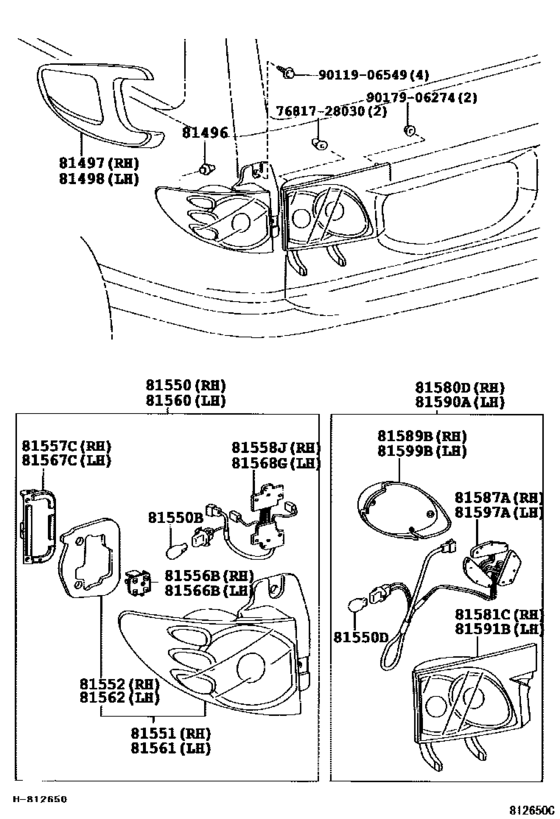

Rear Combination Lamp ([08.2003 - ] (0308- )) 64

#	OEM	Part name
81496	81496-28010	Guide, Rear Combination Lamp
81497	81497-28030-A0	Cover, Rear Combination Lamp, Rh
81497	81497-28030-A1	Cover, Rear Combination Lamp, Rh
81497	81497-28030-B0	Cover, Rear Combination Lamp, Rh
81497	81497-28030-D0	Cover, Rear Combination Lamp, Rh
81497	81497-28030-G0	Cover, Rear Combination Lamp, Rh
81497	81497-28030-J0	Cover, Rear Combination Lamp, Rh
81497	81497-28030-J1	Cover, Rear Combination Lamp, Rh
81497	81497-28030-J2	Cover, Rear Combination Lamp, Rh
81498	81498-28030-A0	Cover, Rear Combination Lamp, Lh
81498	81498-28030-A1	Cover, Rear Combination Lamp, Lh
81498	81498-28030-B0	Cover, Rear Combination Lamp, Lh
81498	81498-28030-D0	Cover, Rear Combination Lamp, Lh
81498	81498-28030-G0	Cover, Rear Combination Lamp, Lh
81498	81498-28030-J0	Cover, Rear Combination Lamp, Lh
81498	81498-28030-J1	Cover, Rear Combination Lamp, Lh
81498	81498-28030-J2	Cover, Rear Combination Lamp, Lh
81550	81550-28210	Lamp Assy, Rear Combination, Rh
81550	81550-28390	Lamp Assy, Rear Combination, Rh
81550	90981-13044	Bulb(For Rear Combination Lamp) (12V 21/5W)
81550	90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER
81550	90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)
81550	90981-13043	Bulb (12V 21W)
81551	81551-28210	Lens, Rear Combination Lamp, Rh
81551	81551-28390	Lens, Rear Combination Lamp, Rh
81552	81552-28210	Gasket, Rear Combination Lamp Lens, Rh
81552	81552-28390	Gasket, Rear Combination Lamp Lens, Rh
81556	81556-28390	Led, Rear Combination Lamp, Rh
81557	81557-28210	Cover, Rear Combination Lamp, Rh
81557	81557-28390	Cover, Rear Combination Lamp, Rh
81558	81558-28390	Plate, Rear Combination Lamp Circuit, Lh
81560	81560-28190	Lamp Assy, Rear Combination, Lh
81560	81560-28390	Lamp Assy, Rear Combination, Lh
81561	81561-28190	Lens, Rear Combination Lamp, Lh
81561	81561-28390	Lens, Rear Combination Lamp, Lh
81562	81562-28190	Gasket, Rear Combination Lamp Lens, Lh
81562	81562-28390	Gasket, Rear Combination Lamp Lens, Lh
81566	81566-28390	Led, Rear Combination Lamp, Lh
81567	81567-28190	Cover, Rear Combination Lamp, Lh
81567	81567-28390	Cover, Rear Combination Lamp, Lh
81568	81568-28390	Plate, Rear Combination Lamp Circuit, Lh
81580	81580-28120	Lamp Assy, Rear, Rh
81580	81580-28130	Lamp Assy, Rear, Rh
81580	81580-28200	Lamp Assy, Rear, Rh
81580	81580-28210	Lamp Assy, Rear, Rh
81581	81581-28120	Lens And Body, Rear Lamp, Rh
81581	81581-28130	Lens And Body, Rear Lamp, Rh
81581	81581-28200	Lens And Body, Rear Lamp, Rh
81581	81581-28210	Lens And Body, Rear Lamp, Rh
81587	81587-28200	Plate, Rear Lamp Circuit, Rh
81589	81589-28200	Cover, Rear Combination Back, Rh
81590	81590-28120	Lamp Assy, Rear, Lh
81590	81590-28130	Lamp Assy, Rear, Lh
81590	81590-28200	Lamp Assy, Rear, Lh
81590	81590-28210	Lamp Assy, Rear, Lh
81591	81591-28120	Lens And Body, Rear Lamp, Lh
81591	81591-28130	Lens And Body, Rear Lamp, Lh
81591	81591-28200	Lens And Body, Rear Lamp, Lh
81591	81591-28210	Lens And Body, Rear Lamp, Lh
81597	81597-28200	Plate, Rear Lamp Circuit, Lh
81599	81599-28200	Cover, Rear Combination Back, Lh
7681728030	76817-28030	Clip, Back Door Outside Garnish
9011906549	90119-06549	BOLT WWASHER
9017906274	90179-06274	Nut

OEM	Part name	Category
76817-28030	Clip, Back Door Outside Garnish	Rear Combination Lamp ([08.2003 - ] (0308- ))
81496-28010	Guide, Rear Combination Lamp	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-A0	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-A1	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-B0	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-D0	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-G0	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-J0	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-J1	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81497-28030-J2	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-A0	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-A1	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-B0	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-D0	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-G0	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-J0	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-J1	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81498-28030-J2	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81550-28210	Lamp Assy, Rear Combination, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81550-28390	Lamp Assy, Rear Combination, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81551-28210	Lens, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81551-28390	Lens, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81552-28210	Gasket, Rear Combination Lamp Lens, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81552-28390	Gasket, Rear Combination Lamp Lens, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81556-28390	Led, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81557-28210	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81557-28390	Cover, Rear Combination Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81558-28390	Plate, Rear Combination Lamp Circuit, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81560-28190	Lamp Assy, Rear Combination, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81560-28390	Lamp Assy, Rear Combination, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81561-28190	Lens, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81561-28390	Lens, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81562-28190	Gasket, Rear Combination Lamp Lens, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81562-28390	Gasket, Rear Combination Lamp Lens, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81566-28390	Led, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81567-28190	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81567-28390	Cover, Rear Combination Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81568-28390	Plate, Rear Combination Lamp Circuit, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81580-28120	Lamp Assy, Rear, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81580-28130	Lamp Assy, Rear, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81580-28200	Lamp Assy, Rear, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81580-28210	Lamp Assy, Rear, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81581-28120	Lens And Body, Rear Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81581-28130	Lens And Body, Rear Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81581-28200	Lens And Body, Rear Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81581-28210	Lens And Body, Rear Lamp, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81587-28200	Plate, Rear Lamp Circuit, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81589-28200	Cover, Rear Combination Back, Rh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81590-28120	Lamp Assy, Rear, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81590-28130	Lamp Assy, Rear, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81590-28200	Lamp Assy, Rear, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81590-28210	Lamp Assy, Rear, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81591-28120	Lens And Body, Rear Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81591-28130	Lens And Body, Rear Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81591-28200	Lens And Body, Rear Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81591-28210	Lens And Body, Rear Lamp, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81597-28200	Plate, Rear Lamp Circuit, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
81599-28200	Cover, Rear Combination Back, Lh	Rear Combination Lamp ([08.2003 - ] (0308- ))
90119-06549	BOLT WWASHER	Rear Combination Lamp ([08.2003 - ] (0308- ))
90179-06274	Nut	Rear Combination Lamp ([08.2003 - ] (0308- ))
90981-11059	Bulb(For Rear Combination Lamp) (12V 16W)	Rear Combination Lamp ([08.2003 - ] (0308- ))
90981-13043	Bulb (12V 21W)	Rear Combination Lamp ([08.2003 - ] (0308- ))
90981-13044	Bulb(For Rear Combination Lamp) (12V 21/5W)	Rear Combination Lamp ([08.2003 - ] (0308- ))
90981-15011	Bulb (For Turn Signal Lamp) 12V 21W, AMBER	Rear Combination Lamp ([08.2003 - ] (0308- ))
