Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

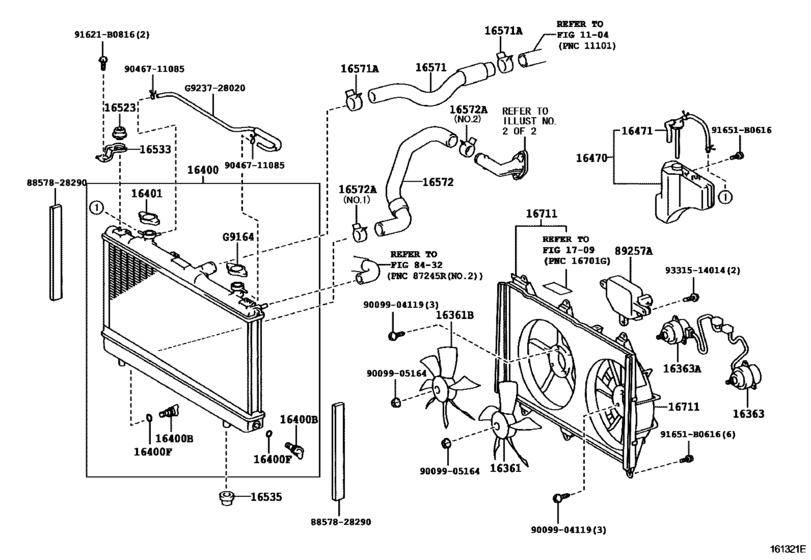

Radiator & Water Outlet ([05.2001 - ] (0105- )) 58

#	OEM	Part name
16258	16258-28010	Gasket(For Heater Return)
16258	16258-28030	Gasket(For Heater Return)
16258	16258-28011	Gasket(For Heater Return)
16261	16261-28040	Hose, Water By-Pass
16261	96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96135-51300	Clamp, Hose
16264	16264-28050	Hose, Water By-Pass, No.2
16268	16268-28040	Pipe, Water By-Pass, No.1
16321	16321-28010	Inlet, Water
16325	16325-28010	Gasket, Water Inlet Housing, No.1
16325	16325-62010	Gasket, Water Inlet Housing, No.1
16331	90916-03084	Thermostat
16331	90916-03129	Thermostat
16331	90916-03125	Thermostat
16331	90916-03136	Thermostat
16361	16361-21050	Fan
16361	16361-23050	Fan
16361	16361-28050	Fan, No.2
16361	16361-28170	Fan, No.2
16363	16363-28080	Motor, Cooling Fan
16363	16363-28250	Motor, Cooling Fan
16363	16363-28090	Motor, Cooling Fan, No.2
16363	16363-28260	Motor, Cooling Fan, No.2
16400	16400-28340	Radiator Assy
16400	16400-28341	Radiator Assy
16400	87245-2J681	Hose, Water
16400	87263-28031	Bracket, Heater Water Pipe, No.1
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16401	16401-62100	Cap Sub-Assy, Radiator
16401	16401-31520	Radiator Cap Sub-Assy (108kPa)
16401	16401-36020	Cap Sub-Assy, Radiator
16470	16470-28080	Tank Assy, Radiator Reserve
16471	16405-28050	Cap Sub-Assy, Reserve Tank
16523	16523-74010	Cushion, Sub-Radiator Support
16533	16533-20021	Support, Radiator, Upper
16535	16535-74210	Support, Radiator, Lower
16571	16571-28050	Hose, Radiator, Inlet
16571	16571-28220	Hose, Radiator, Inlet
16571	90467-37005	Clip(For Water Inlet Hose)
16571	90467-37006	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-28020	Hose, Radiator, Outlet
16572	16572-28200	Hose, Radiator, Outlet
16572	90466-37002	Clamp Or Clip, Hose(For Radiator Inlet)
16711	16711-28240	Shroud, Fan
89257	89257-48010	Computer, Cooling Fan
91621	91621-B0816	BOLT WWASHER
91631	91631-G0614	BOT WWASHER
91651	91651-B0616	BOLT WWASHER
8857828290	88578-28290	Paking, Cooler Air Duct
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9011606127	90116-06127	Bolt, Stud(For Oil Pan)
9012606022	90126-06022	STUD HEX LOBULAR
9046400615	90464-00615	New Genuine Part
9046711085	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
9331514014	93315-14014	SCREW
9415080640	94150-80640	NUT FLANGE

OEM	Part name	Category
16258-28010	Gasket(For Heater Return)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16258-28011	Gasket(For Heater Return)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16258-28030	Gasket(For Heater Return)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16261-28040	Hose, Water By-Pass	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16264-28050	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16268-28040	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16321-28010	Inlet, Water	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16325-28010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16325-62010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16361-21050	Fan	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16361-23050	Fan	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16361-28050	Fan, No.2	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16361-28170	Fan, No.2	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16363-28080	Motor, Cooling Fan	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16363-28090	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16363-28250	Motor, Cooling Fan	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16363-28260	Motor, Cooling Fan, No.2	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16400-28340	Radiator Assy	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16400-28341	Radiator Assy	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16401-62100	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16405-28050	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16470-28080	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16523-74010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16533-20021	Support, Radiator, Upper	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16535-74210	Support, Radiator, Lower	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16571-28050	Hose, Radiator, Inlet	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16571-28220	Hose, Radiator, Inlet	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16572-28020	Hose, Radiator, Outlet	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16572-28200	Hose, Radiator, Outlet	Radiator & Water Outlet ([05.2001 - ] (0105- ))
16711-28240	Shroud, Fan	Radiator & Water Outlet ([05.2001 - ] (0105- ))
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
87245-2J681	Hose, Water	Radiator & Water Outlet ([05.2001 - ] (0105- ))
87263-28031	Bracket, Heater Water Pipe, No.1	Radiator & Water Outlet ([05.2001 - ] (0105- ))
88578-28290	Paking, Cooler Air Duct	Radiator & Water Outlet ([05.2001 - ] (0105- ))
89257-48010	Computer, Cooling Fan	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90099-05164	Nut	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90116-06127	Bolt, Stud(For Oil Pan)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90126-06022	STUD HEX LOBULAR	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90464-00615	New Genuine Part	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90466-37002	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90467-37006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90916-03084	Thermostat	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90916-03125	Thermostat	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90916-03129	Thermostat	Radiator & Water Outlet ([05.2001 - ] (0105- ))
90916-03136	Thermostat	Radiator & Water Outlet ([05.2001 - ] (0105- ))
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([05.2001 - ] (0105- ))
91631-G0614	BOT WWASHER	Radiator & Water Outlet ([05.2001 - ] (0105- ))
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([05.2001 - ] (0105- ))
93315-14014	SCREW	Radiator & Water Outlet ([05.2001 - ] (0105- ))
94150-80640	NUT FLANGE	Radiator & Water Outlet ([05.2001 - ] (0105- ))
96135-41300	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([05.2001 - ] (0105- ))
96135-51300	Clamp, Hose	Radiator & Water Outlet ([05.2001 - ] (0105- ))

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 232
Collected: 2026-08-03
