Search › Model › AHR10

AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

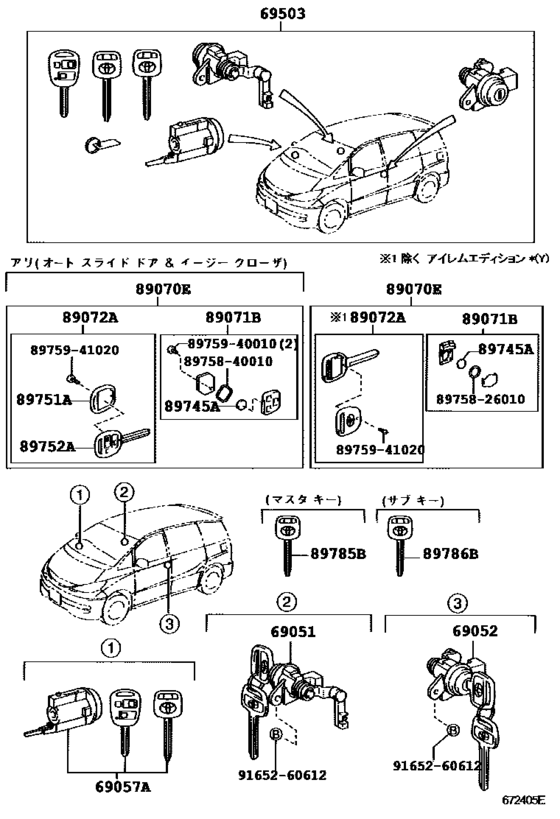

Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308)) 45

#	OEM	Part name
69051	69051-28240	Cylinder & Key Set, Door Lock, Rh
69051	69051-28270	Cylinder & Key Set, Door Lock, Rh
69052	69052-28230	Cylinder & Key Set, Door Lock, Lh
69052	69052-28260	Cylinder & Key Set, Door Lock, Lh
69057	89073-28210	Cylinder & Key Set, Ignition Switch Lock
69057	89073-28220	Cylinder & Key Set, Ignition Switch Lock
69057	89073-28310	Cylinder & Key Set, Ignition Switch Lock
69503	69005-28770	Cylinder Set, Lock
69503	69005-28790	Cylinder Set, Lock
69503	69005-28791	Cylinder Set, Lock
69503	89073-28230	Cylinder Set, Lock
69503	89073-28240	Cylinder Set, Lock
69503	89073-28320	Cylinder Set, Lock
89070	89070-12290	Transmitter Assy, Door Control
89070	89070-28290	Transmitter Assy, Door Control
89070	89070-28300	Transmitter Assy, Door Control
89070	89070-28360	Transmitter Assy, Door Control
89070	89070-28460	Transmitter Assy, Door Control
89070	89070-28461	Transmitter Assy, Door Control
89071	89071-12041	Module Set, Transmitter Sub-Assy, Door Control
89071	89071-28060	Module Set, Transmitter Sub-Assy, Door Control
89071	89071-30050	Module Set, Transmitter Sub-Assy, Door Control
89071	89071-58060	Module Set, Transmitter Sub-Assy, Door Control
89072	89072-28030	Housing Set, Door Control Transmitter
89072	04873-28010	Housing Set, Door Control Transmitter
89072	89072-28580	Housing Set, Door Control Transmitter
89072	89072-47020	Housing Set, Door Control Transmitter
89745	89745-26010	Battery, Transmitter
89745	89745-40010	Transmitter Battery
89745	89745-48030	Battery, Transmitter
89751	89751-44010	Cover, Transmitter Housing
89751	89751-50010	Cover, Transmitter Housing
89751	89751-50011	Cover, Transmitter Housing
89752	89752-13020	Case, Transmitter Housing
89752	89752-28120	Case, Transmitter Housing
89752	89752-46020	Case, Transmitter Housing
89785	89785-28040	Transmitter, Transponder Key Master
89785	89785-60160	Blank Key
89786	89786-20050	Transmitter, Transponder Key Sub
89786	89786-60170	Transmitter, Transponder Key Sub
8975826010	89758-26010	Packing, Door Control Transmitter
8975840010	89758-40010	Packing, Door Control Transmitter
8975940010	89759-40010	Screw, Door Control Transmitter
8975941020	89759-41020	Screw, Door Control Transmitter
9165260612	91652-60612	New Genuine Part

OEM	Part name	Category
04873-28010	Housing Set, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69005-28770	Cylinder Set, Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69005-28790	Cylinder Set, Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69005-28791	Cylinder Set, Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69051-28240	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69051-28270	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69052-28230	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
69052-28260	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89070-12290	Transmitter Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89070-28290	Transmitter Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89070-28300	Transmitter Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89070-28360	Transmitter Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89070-28460	Transmitter Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89070-28461	Transmitter Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89071-12041	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89071-28060	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89071-30050	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89071-58060	Module Set, Transmitter Sub-Assy, Door Control	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89072-28030	Housing Set, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89072-28580	Housing Set, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89072-47020	Housing Set, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89073-28210	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89073-28220	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89073-28230	Cylinder Set, Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89073-28240	Cylinder Set, Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89073-28310	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89073-28320	Cylinder Set, Lock	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89745-26010	Battery, Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89745-40010	Transmitter Battery	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89745-48030	Battery, Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89751-44010	Cover, Transmitter Housing	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89751-50010	Cover, Transmitter Housing	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89751-50011	Cover, Transmitter Housing	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89752-13020	Case, Transmitter Housing	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89752-28120	Case, Transmitter Housing	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89752-46020	Case, Transmitter Housing	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89758-26010	Packing, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89758-40010	Packing, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89759-40010	Screw, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89759-41020	Screw, Door Control Transmitter	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89785-28040	Transmitter, Transponder Key Master	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89785-60160	Blank Key	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89786-20050	Transmitter, Transponder Key Sub	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
89786-60170	Transmitter, Transponder Key Sub	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
91652-60612	New Genuine Part	Lock Cylinder Set ([05.2001 - 08.2003] (0105-0308))
