AHR10

Toyota ESTIMA-EMINA-LUCIDA · 2001 · 5,752 parts · 232 categories

5,752 items

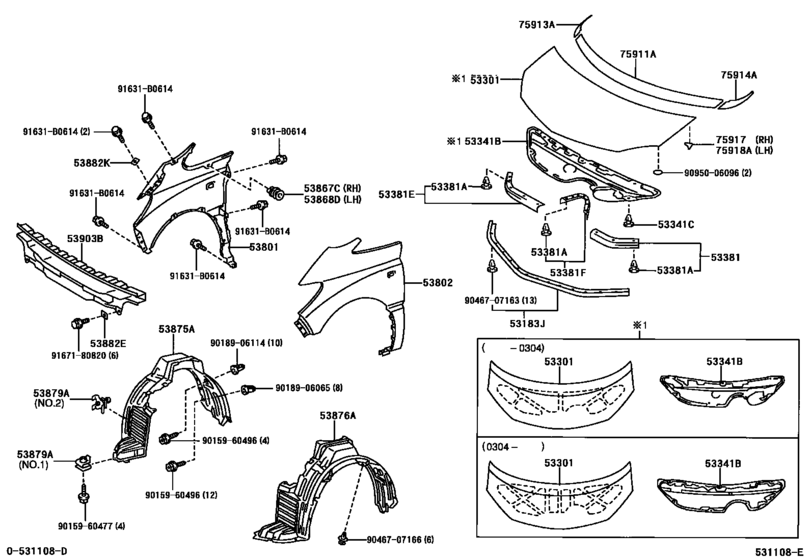

Hood & Front Fender ([05.2001 - ] (0105- )) 45

#	OEM	Part name
53183	53183-28060	Seal, Headlamp Cover To Hood
53183	53183-28061	Seal, Headlamp Cover To Hood
53301	53301-28070	Hood Sub-Assy
53301	53301-28100	Hood Sub-Assy
53301	53341-28040	Insulator, Hood
53341	53341-28060	Insulator, Hood
53341	90467-08124	Clip(For Hood Insulator)
53381	53381-28050	Seal, Hood To Radiator Support
53381	90467-08011	Clip(For Headlamp Cover Seal)
53381	90467-08011-TH	CLIP
53381	90467-08011-83	Clip(For Headlamp Cover Seal)
53381	53381-28060	Seal, Hood To Radiator Support
53381	53381-28070	Seal, Hood To Radiator Support
53801	53811-28020	Fender Sub-Assy, Front Rh
53801	53811-28070	Fender Sub-Assy, Front Rh
53802	53812-28020	Fender Sub-Assy, Front Lh
53802	53812-28070	Fender Sub-Assy, Front Lh
53867	53867-48010	Seal, Front Fender To Cowl Side, Rh
53875	53805-28010	Liner, Front Fender, Rh
53875	53805-28020	Liner, Front Fender, Rh
53876	53806-28010	Liner, Front Fender, Lh
53876	53806-28020	Liner, Front Fender, Lh
53879	53879-16010	Retainer, Front Fender Liner
53879	53879-28010	Retainer, Front Fender Liner
53879	53879-28030	Retainer, Front Fender Liner
53882	53882-16030	Pad, Rear Bumper, Center
53903	53903-28070	Panel Sub-Assy, Front End
53903	53903-28110	Panel Sub-Assy, Front End
75911	75911-28010	Tape, Black Out Hood
75911	75911-28020	Tape, Black Out Hood
75913	75913-28010	Tape, Black Out Fender, Rh
75913	75913-28020	Tape, Black Out Fender, Rh
75914	75914-28010	Tape, Black Out Fender, Lh
75914	75914-28020	Tape, Black Out Fender, Lh
75917	75917-28010	Tape, Black Out Hood, No.2 Rh
75918	75918-28010	Tape, Black Out Hood, No.2 Lh
91631	91631-B0614	BOLT WWASHER
9015960477	90159-60477	SCREW, WWASHER
9015960496	90159-60496	SCREW WWASHER
9018906065	90189-06065	CLIP
9018906114	90189-06114	GROMMET SCREW
9046707163	90467-07163	Clip, Headlamp Cover
9046707166	90467-07166	Clip(For Front Fender Apron Seal)
9095006096	90950-06096	Plug, Hole(For Hood)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
53183-28060	Seal, Headlamp Cover To Hood	Hood & Front Fender ([05.2001 - ] (0105- ))
53183-28061	Seal, Headlamp Cover To Hood	Hood & Front Fender ([05.2001 - ] (0105- ))
53301-28070	Hood Sub-Assy	Hood & Front Fender ([05.2001 - ] (0105- ))
53301-28100	Hood Sub-Assy	Hood & Front Fender ([05.2001 - ] (0105- ))
53341-28040	Insulator, Hood	Hood & Front Fender ([05.2001 - ] (0105- ))
53341-28060	Insulator, Hood	Hood & Front Fender ([05.2001 - ] (0105- ))
53381-28050	Seal, Hood To Radiator Support	Hood & Front Fender ([05.2001 - ] (0105- ))
53381-28060	Seal, Hood To Radiator Support	Hood & Front Fender ([05.2001 - ] (0105- ))
53381-28070	Seal, Hood To Radiator Support	Hood & Front Fender ([05.2001 - ] (0105- ))
53805-28010	Liner, Front Fender, Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
53805-28020	Liner, Front Fender, Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
53806-28010	Liner, Front Fender, Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
53806-28020	Liner, Front Fender, Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
53811-28020	Fender Sub-Assy, Front Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
53811-28070	Fender Sub-Assy, Front Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
53812-28020	Fender Sub-Assy, Front Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
53812-28070	Fender Sub-Assy, Front Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
53867-48010	Seal, Front Fender To Cowl Side, Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
53879-16010	Retainer, Front Fender Liner	Hood & Front Fender ([05.2001 - ] (0105- ))
53879-28010	Retainer, Front Fender Liner	Hood & Front Fender ([05.2001 - ] (0105- ))
53879-28030	Retainer, Front Fender Liner	Hood & Front Fender ([05.2001 - ] (0105- ))
53882-16030	Pad, Rear Bumper, Center	Hood & Front Fender ([05.2001 - ] (0105- ))
53903-28070	Panel Sub-Assy, Front End	Hood & Front Fender ([05.2001 - ] (0105- ))
53903-28110	Panel Sub-Assy, Front End	Hood & Front Fender ([05.2001 - ] (0105- ))
75911-28010	Tape, Black Out Hood	Hood & Front Fender ([05.2001 - ] (0105- ))
75911-28020	Tape, Black Out Hood	Hood & Front Fender ([05.2001 - ] (0105- ))
75913-28010	Tape, Black Out Fender, Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
75913-28020	Tape, Black Out Fender, Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
75914-28010	Tape, Black Out Fender, Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
75914-28020	Tape, Black Out Fender, Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
75917-28010	Tape, Black Out Hood, No.2 Rh	Hood & Front Fender ([05.2001 - ] (0105- ))
75918-28010	Tape, Black Out Hood, No.2 Lh	Hood & Front Fender ([05.2001 - ] (0105- ))
90159-60477	SCREW, WWASHER	Hood & Front Fender ([05.2001 - ] (0105- ))
90159-60496	SCREW WWASHER	Hood & Front Fender ([05.2001 - ] (0105- ))
90189-06065	CLIP	Hood & Front Fender ([05.2001 - ] (0105- ))
90189-06114	GROMMET SCREW	Hood & Front Fender ([05.2001 - ] (0105- ))
90467-07163	Clip, Headlamp Cover	Hood & Front Fender ([05.2001 - ] (0105- ))
90467-07166	Clip(For Front Fender Apron Seal)	Hood & Front Fender ([05.2001 - ] (0105- ))
90467-08011	Clip(For Headlamp Cover Seal)	Hood & Front Fender ([05.2001 - ] (0105- ))
90467-08011-83	Clip(For Headlamp Cover Seal)	Hood & Front Fender ([05.2001 - ] (0105- ))
90467-08011-TH	CLIP	Hood & Front Fender ([05.2001 - ] (0105- ))
90467-08124	Clip(For Hood Insulator)	Hood & Front Fender ([05.2001 - ] (0105- ))
90950-06096	Plug, Hole(For Hood)	Hood & Front Fender ([05.2001 - ] (0105- ))
91631-B0614	BOLT WWASHER	Hood & Front Fender ([05.2001 - ] (0105- ))
91671-80820	Bolt (For Transmission Control Cable Bracket)	Hood & Front Fender ([05.2001 - ] (0105- ))
